Slimline Aluminium Windows Exeter & Devon

Maximise the glass area, with a slimline casement window. Increasing the light which can enter the home and allowing more of the view to be enjoyed. With a variety of style options available our slimline casement windows are an excellent choice for any glazing project. Contact us today to request a supply only quote, or give us a call to discuss specifying slimline casement windows in your next project.

Our Affiliations

Slimline Aluminium Windows Exeter

Slimline Aluminium Windows Devon

Exceptional aesthetics start with exceptional designs. That’s why we offer homeowners and tradespeople deluxe slimline aluminium windows. Chosen for their minimalist and clean lines, whilst still offering excellent thermal performance and security ratings.  Maximising views and increasing the amount of natural light which can enter the property, whilst keeping your home safe and secure.

Considering aluminium’s ability to resist warping, rotting, or cracking, homeowners can achieve incredible thermal performance with unquestionable elegance. Colourfast and long lasting, slimline aluminium windows are an ideal solution for timber replacement or minimalist designs.

Reynaers slimline 68 Exeter

Superior Strength Aluminium

One of the reasons we can offer such attractive sightlines on slimline aluminium windows is the superior strength to weight ratio of aluminium. With the natural properties of this incredible material, we can manufacture double or even triple glazed windows with ultra slim frames.

Yet, these minimal frames don’t compromise energy efficiency or performance. We can ensure that homeowners improve the thermal efficiency of their windows, not to mention the potential to improve the efficiency of their homes overall.

Technical Specifications

AluK 58BW ST

Reynaers SL 68

Origin OW-70

AluK 58BW ST

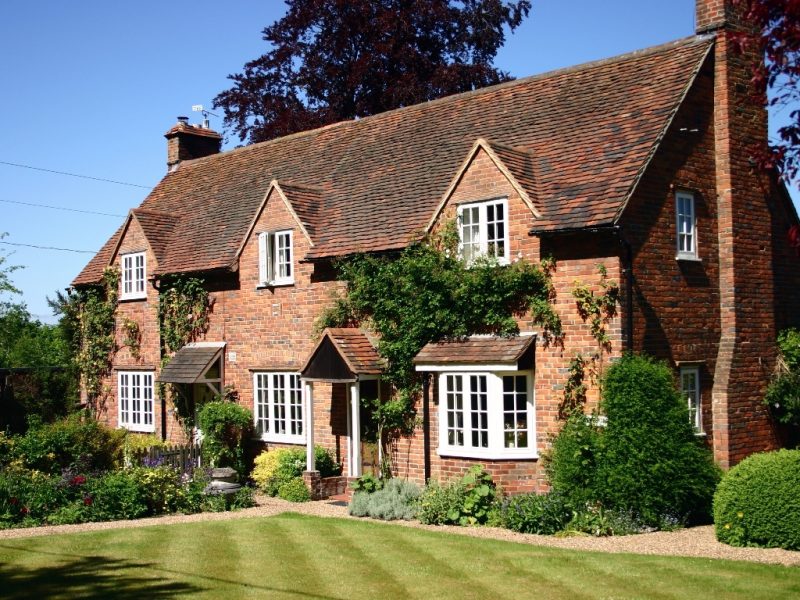

The minimal, durable and secure 58BW ST window from AluK is designed to replace and complement existing steel windows. Designed specifically to be used on buildings where steel windows have been traditionally installed. Featuring square sections and slim sightlines on fixed light’s of just 43 mm.

Aluk Logo

Reynaers SL 68

The SL 68 has been designed specifically to meet the needs of UK households. With high quality designs, these slimline casement windows are perfect for replacing older steel frames, delivering a stylish and timeless aesthetic. Tried and tested to ensure it offers the highest levels of performance and industry-leading weather resistance.

Origin OW-70

The OW-70 from Origin, is Origin’s slimmest window with sightlines of just 65mm wide. Meaning less frame and more natural light. With a sleek flush external finish the OW-70 will add a touch of class to any property. Available as a casement, bay or fixed window.

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Key Features

Highlights

A modern alternative to steel for traditional homes


Suitable for conservation areas


Provides the slimline look of steel with the benefits of aluminium


Slim sightlines to match existing steel windows


Multiple configurations for any build


Multi point locking systems for superior safety


Polyamide thermal breaks for improved thermal efficiency


Green guide rated A


Made onsite in Exeter


Options


Frame Styles
Square, Putty Line, Stepped Edge

Frame Depth
58 or 70 mm

Glazing
24 - 32 mm

Glazing Bars
Yes

Leaded Glass
Yes

Dual Colour
Yes

Technical Specifications

Specifications

Performance

Value


U-value (Double Glazing)
1.4 W/m2K

U-value (Triple Glazing)
1.1 W/m2K

Window Energy Rating
A – B

Air Tightness
Class 4 (600 Pa)

Water Tightness
Class E1500 (1500 Pa)

Wind Resistance
Class E2400 (2400 Pa)

Security
PAS 24:2016

Q-Mark Certification
Yes

Downloads

Name

Type

Size


Aluk Windows and Doors Brochure

pdf

12.13 MB

Download


AluK 58BW ST HI Data Sheet

pdf

2.00 MB

Download


AluK 58BW ST Data Sheet

pdf

442.78 KB

Download


Size and Weight Limits

Specifications

Configuration

Limit


Top Hung - Max Size
1436w x 1336h mm

Top Hung - Min Size
386w x 336h mm

Side Hung - Max Size
736w x 1436h mm

Side Hung - Min Size
336w x 386h mm

Bottom Hung - Max Weight
45 kg (5 hinges)

Fixed Light - Max Weight
250 kg

Downloads

Name

Type

Size


AluK 58BW ST HI Data Sheet

pdf

2.00 MB

Download


AluK 58BW ST Data Sheet

pdf

442.78 KB

Download


Configurations

The AluK 58BW ST offers a wide range of possibilities. With design styles which include square, stepped edge and putty line, helping to achieve design and planning permission requirements. Plus configuration styles that include top hung, side hung, bottom hung, fixed light and multi-light options.

Fixed Light

Side Hung

Top Hung

French Casement

Window Over Fixed

Fan Light

Side Light

Top Hung Next to Side Light

Side Hung Next to Side Light

Coupled Window

PREVIOUS

NEXT

AluK Colour Options

Whether you are looking for a statement colour or a more subtle colour for your slimline aluminium windows, the AluK 58BW ST is available in the full RAL colour range. Giving you a 150 colours to choose from, guaranteeing that you will find the one that suits.

Powder coated to provide protection against the elements, as well as long lasting colour.

Single colour allows for the same colour inside and out. Or select the dual colour option, allowing you to select an exterior colour which matches the style of the outside of the house, whilst choosing a different colour for the interior of the casement window to blend in with the internal colour scheme.

Please find some of our most popular slimline casement window colour options below.

For further inspiration take a look at the AluK colour collection brochure.

RAL Colours

RAL 7032 - Pebble Grey

RAL 7032 - Pebble Grey

RAL 7031 - Blue Grey

RAL 7031 - Blue Grey

RAL 7016 - Anthracite Grey

RAL 7016 - Anthracite Grey

RAL 7015 - Slate Grey

RAL 7015 - Slate Grey

RAL 7012 - Basalt Grey

RAL 7012 - Basalt Grey

RAL 5003 - Ocean Blue

RAL 5003 - Ocean Blue

AluK Hardware Options

The AluK 58BW ST includes hardware sympathetic to traditional steel window designs.

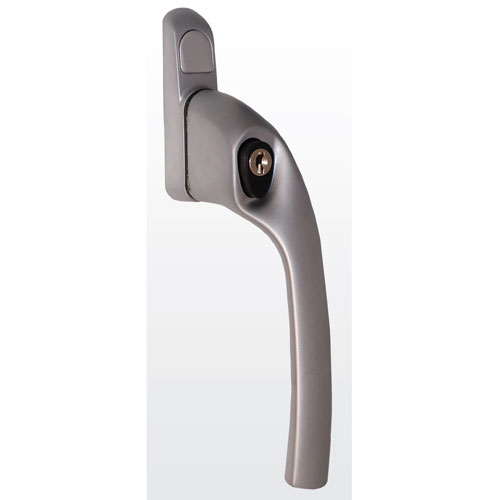

Optio 58BW ST Handle Satin me

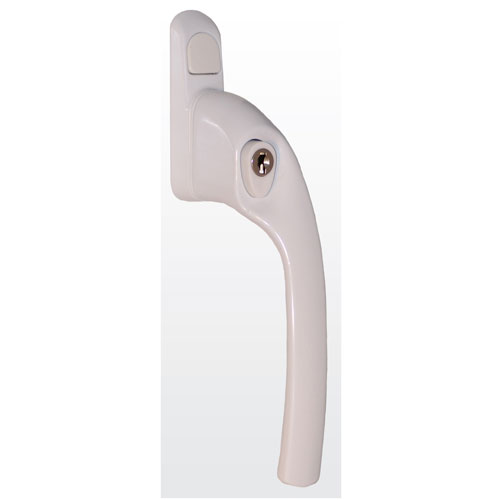

Optio 58BW ST Handle White

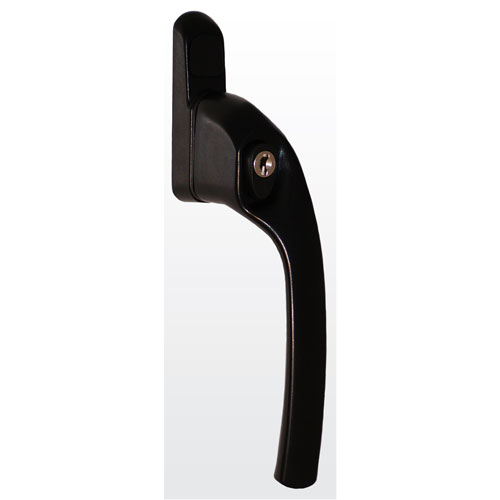

Optio 58BW ST Handle Black

Key Features

Tech Specs

Size Limits

Configurations

Colours

Key Features

Highlights

Ultra slim frame


Concealed hinges and drainage


Particularly suited for residential properties


Ideal for both contemporary and traditional properties


Perfect replacement for steel or timber windows


Enhanced thermal performance


Window Energy Rating up to A++


Side security brackets for ultra secure windows


Made onsite in Exeter


Options


Marine Grade Finish
Yes

Dual Colour
Yes

Glass Corner
Yes

Glazing
Double or Triple

Trickle Vents
Yes

Technical Specifications

Specifications

Performance

Value


U-value (Double Glazing)
1.4 W/m2K

U-value (Triple Glazing)
1.1 W/m2K

Air Tightness
Class 4 (600 Pa)

Water Tightness
E1200 (1200 Pa)

Wind Load
Class C (s1/3000)

Security
PAS 24:2016

Acoustic Performance
47(-2; -7) dB

Sightline - Min. Frame Width
15 mm

Sightline - Min. Vent Width
50 mm

Downloads

Name

Type

Size


Reynaers SL 68 Slimline Casement Window Brochure

pdf

3.37 MB

Download


Size Limits

Options

Configuration

Limit


Top Hung - Max Size
1200w x 1200h mm

Side Hung - Max Size
738w x 1300h mm

Top Hung Vent Weight - Max
50 kg

Side Hung Vent Weight - Max
40 kg

Configurations

All of our slimline aluminium windows are manufactured to meet your exact requirements. Available in a range of configurations including:

  • Outward opening
  • Side Hung
  • Top Hung
  • Multi-Light
  • Fixed Window
  • Glass Corner

SL68

Double Casement Side Hung

Side Hung with Friction Stays

Ventilation Window

Top Hung

Side Hung

Multi Light Side Hung

PREVIOUS

NEXT

Reynaers Colour Options

We offer an array of varied colours for signature styles and classic looks. With such attractive options for slimline aluminium windows, homeowners can create fully bespoke designs to suit the style of their property and to match their tastes.

Choose from one of our most popular colours below, or from the RAL colour range of over 150 RAL colours. In a choice of matt or gloss finish, metallic colours, textured metallic Coatex finishes, wood-grain finishes, and pre-anodised (recommended for marine locations) or anodised coating.

RAL Colours

RAL 7032 - Pebble Grey

RAL 7032 - Pebble Grey

RAL 7031 - Blue Grey

RAL 7031 - Blue Grey

7016M - Anthracite Grey

7015M - Slate Grey

RAL 7012 - Basalt Grey

RAL 7012 - Basalt Grey

RAL 5003 - Ocean Blue

RAL 5003 - Ocean Blue

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Key Features

Highlights

Elegant minimalist look with ultra slim sightlines


Unique inline window handle


Stainless steel multi-point lock


Additional locks for larger frames


Hinge guards with anti-slip and lock technology


Made in Britain


Options


Glazing
Double or Triple

Cill Options
95, 155, 180 or 225 mm

Colour-Coded gaskets
Yes

Restrictor Hooks
Yes

Bead Options
Square or Chamfered

Dual Colour
Yes

Glazing Bars
Yes

Trickle Vents
Yes

Technical Specifications

Specifications

Performance

Value


U-value (Double Glazing)
1.4 W/m2K

U-value (Triple Glazing)
1.2 W/m2K

Air Tightness
Class 4

Water Tightness
Class 9A

Wind Load
Class A5

Security
PAS 24:2016

Secured by Design
Yes

Downloads

Name

Type

Size


Origin - The Window Collection Brochure

pdf

6.83 MB

Download


Size and Weight Limits

Specifications

Configuration

Limit


Top Hung - Max Size
1200w x 1200h mm

Top Hung - Min Size
355w x 350h mm

Side Hung - Max Size
700w x 1300h mm

Side Hung - Min Size
350w x 350h mm

Dummy Sash - Max Size
1374w x 1474h mm

Dummy Sash - Min Size
350w x 350h mm

Fixed Frame - Max Area
4.8 m2

Fixed Frame - Min Size
300w x 300h mm

Downloads

Name

Type

Size


Origin - The Window Collection Brochure

pdf

6.83 MB

Download


Configurations

The Origin OW-70 slimline window is available in a range of configurations, including:

  • Casement Windows
  • Bay Windows
  • Fixed Light
  • Dummy Sash
  • Top Hung
  • Side Hung



Left: Side Hung, Right: Top Hung over Dummy Sash, Outside View

Left: Top Hung over Dummy Sash, Right: Side Hung

Top Hung over Fixed Light

Fixed Light

Top Hung, Outside View

Side Hung

Left & Right: Side Hung

Left: Fixed Light, Right: Side Hung

Left & Right: Side Hung, Center: Fixed

Fixed Frame with Mullion

PREVIOUS

NEXT

Origin Colour Options

The Origin line boasts over 150 colours for homeowners to choose from. With the options for everything from chic Anthracite Grey to something more audacious like pastel pink, ensuring that every customer can find the colour they want for their slimline aluminium windows.

150 RAL Colours

7016M - Anthracite Grey

7015M - Slate Grey

9010G - Hipca White

7021M - Black Grey

9005M - Jet Black

9010M - Hipca White

9007M - Dark Sliver Metallic

9910G/7016M - Dual Colour

Origin Window Hardware Options

We offer traditional inline handles in Chrome, Silver, Anthracite Grey and more. Cranked handles can be ordered in any RAL colour to match the slimline aluminium windows.

Product Gallery

View All

Why Exeter Trade Aluminium?

Quick Quote Turnaround

Competitive Trade Prices

Accurate Lead Times

Fast Track Options

Supplier Support

Versatile Configurations

Exeter Showroom

Manufactured Onsite

Expansive Delivery Areas

Full RAL Colours

Origin OW70 Devon

Slimline Aluminium Window Prices Exeter & Devon

Request a supply only quote for slimline aluminium casement windows.

We supply slimline windows to the trade and homeowners in Exeter, Devon, Cornwall, Somerset, Dorset, Wiltshire and surrounding areas. Request a quote today.

Alternatively, visit our showroom to touch and experience the products we have on offer. With an expert on hand to answer any questions you have.
