This once derelict barn has been superbly converted. The barn conversion now features aluminium windows, French doors and bi-folding doors. … Continued
Casement Windows Exeter & Devon
Quality, versatile and high performing aluminium casement windows. With a range of solutions which will enhance any home, from contemporary to traditional. Perfect for both new-builds and renovations.
Our Affiliations
Casement Windows Devon
Exeter Trade Aluminium offers stunningly designed and exceptionally finished aluminium windows. Provide your customers a stylish modern look with clean lines and a sleek profile.
All products are tested to meet and often exceed the British and European standards for security, weather performance, thermal insulation, durability and noise reduction.
Furthermore, our casement windows have been installed in some of the most exposed locations in the UK.
Premium Grade Aluminium
As well as being visually exquisite, our aluminium windows are easy to operate and highly secure. Plus, they are low maintenance and manufactured from a premium grade aluminium for long term reliability.
Offering strength and durability, these casement windows provide the assurance that the frames won’t flex, warp or corrode in variable weather conditions.
Each window is skilfully designed, specifically tailored and hand crafted. We use precision engineering and exceptional craftsmanship in our onsite Exeter factory.
Our casement windows are designed to keep your home warm on a cold day and cool on a hot day.
Technical Specifications
AluK 58BW
Reynaers CS 77
Origin OW-80
AluK 58BW
The attractive casement design of the AluK 58BW is perfect to replace both older windows in heritage properties, or to create a modern sleek look in a contemporary build. The frame offers clean lines and advanced functionality. Available in multiple configurations, with a range of customisable options.
Reynaers CS 77
The CS 77 aluminium casement window from Reynaers is available in three different styles, making it ideal for both contemporary and traditional properties.
Not only does the CS 77 look stylish, it is also a great all round performer in terms of thermal insulation, weather resistance and security.
Origin OW-80
The Origin OW-80 casement windows offers an elegant finish both inside and out with an internal and external flush casement, which sits in-line with the frame perfectly.
Key Features
Tech Specs
Size Limits
Configurations
Colours
Hardware
Key Features
Highlights
Part L compliant
Flexible configurations
High energy performance
Built to the highest UK standards
Available in the full RAL colour range
Textured & anodised finishes available for improved looks
Multi point locking systems improve security
Manufactured on site
Options
Frame Depths
58 mm or 70 mm
Frame Styles
Chamfered, Contemporary, 70mm
Glass Thickness
23 mm - 40 mm
Glazing Bars
Yes
Marine Grade Finish
Yes
Trickle Vents
Yes
Technical Specifications
Strong, secure, superior
Specifications
Performance
Value
U-value (Double Glazing)
1.4 W/m2K
U-value (Triple Glazing)
1.2 W/m2K
Window Energy Rating (WER)
B – C
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class 9a (600 Pa)
Wind Resistance
Class E2400 (2400 Pa)
Acoustic Performance
Rw (C;Ctr) 42 (-1;-5) dB
Security
PAS 24:2016
Q-Mark Certified
Yes
Sightline (Frame to Vent)
75 mm
Sightline (Vent to Mullion)
89 mm
Sightline (Fixed Light)
43 mm
Downloads
Name
Type
Size
Size and Weight Limits
Specifications
Configuration
Limit
Top Hung - Max Size
1750w x 2500h mm
Top Hung - Min Size
300w x 200h mm
Top hung - Max Weight
180 kg
Side Hung - Max Size
1300w x 2500h mm
Side Hung - Min Size
300w x 300h mm
Side Hung - Max Weight
55 kg
Bottom Hung - Max Size
1750w x 2500h mm
Bottom Hung - Min Size
300w x 200h mm
Bottom Hung - Max Weight
50 kg (2 hinges)
Fixed Light - Max Weight
250 kg
Downloads
Name
Type
Size
Versatile Window Configurations
With a variety of configuration options to choose from, the 58BW casement window by AluK can be configured to match your projects requirements, creating a unique solution which is bespoke to your property.
Choose from; top hung, side hung, bottom hung, fixed light, multi-light and French casements.
Contact our Sales team if you have any questions about the various configuration options.

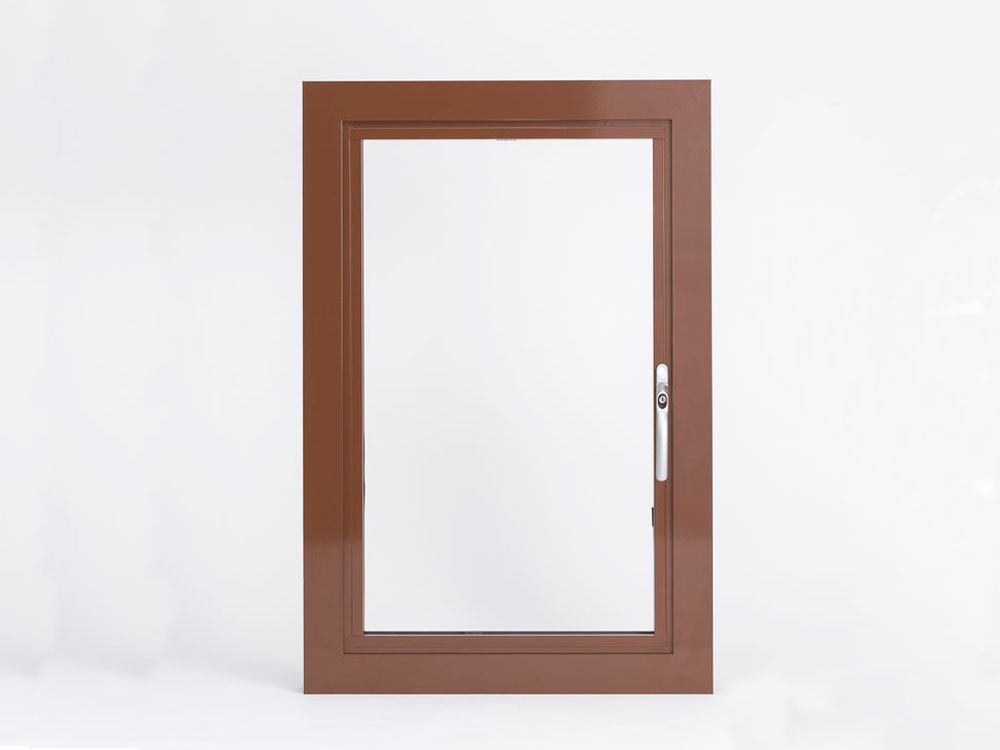

Side Hung

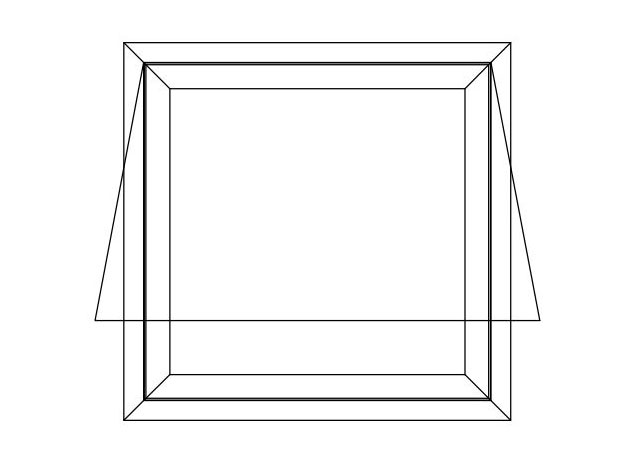

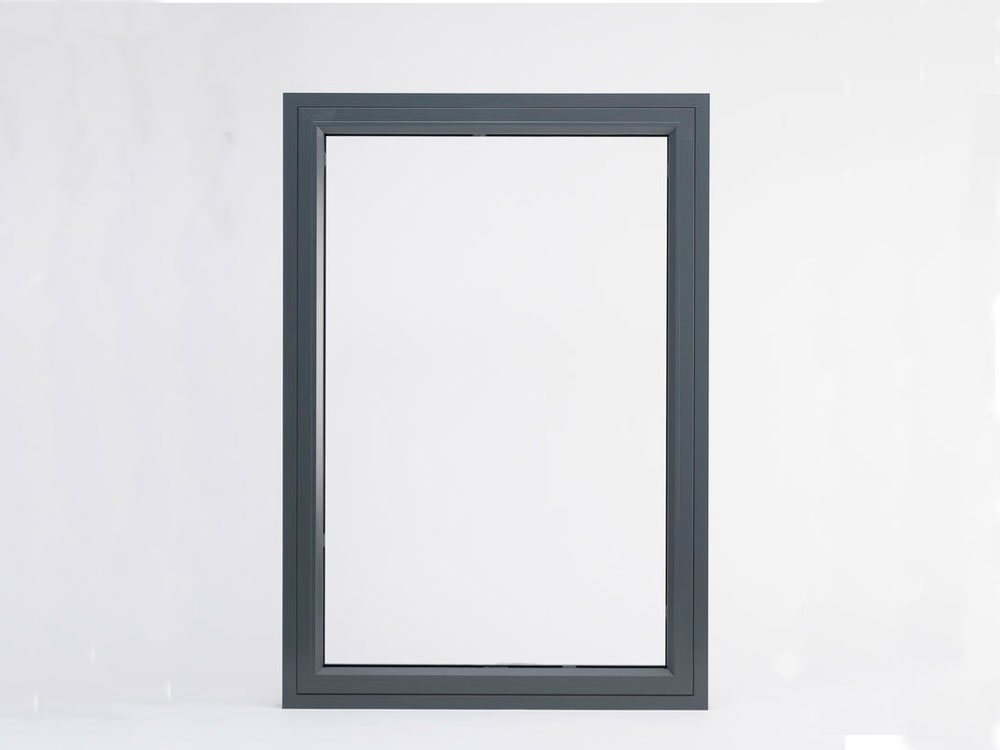

Top Hung

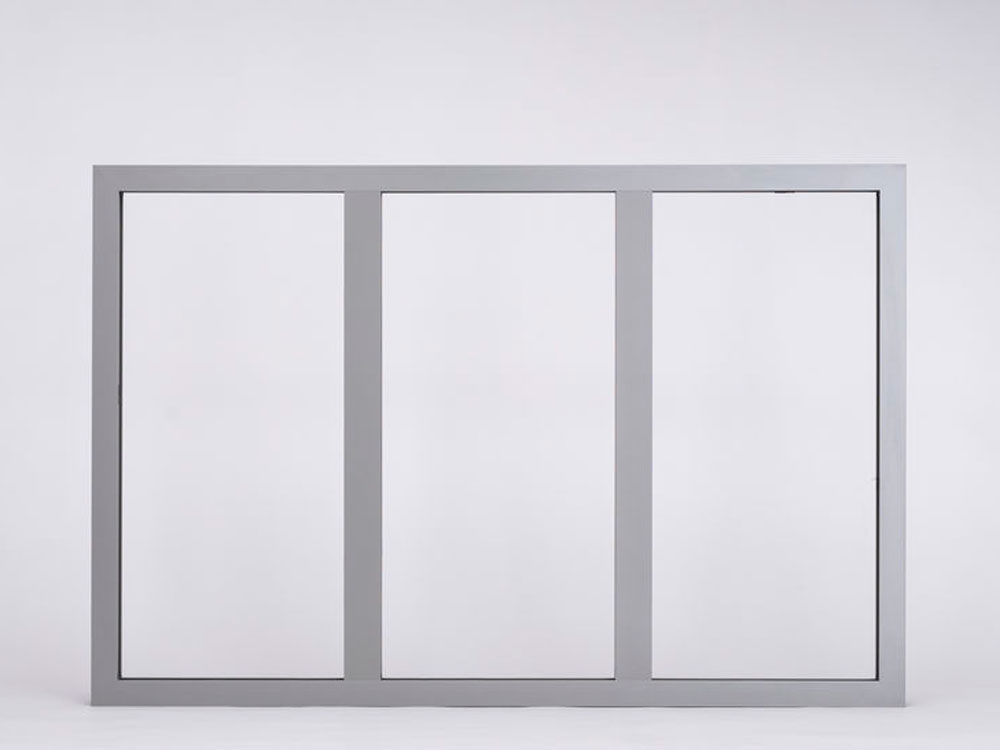

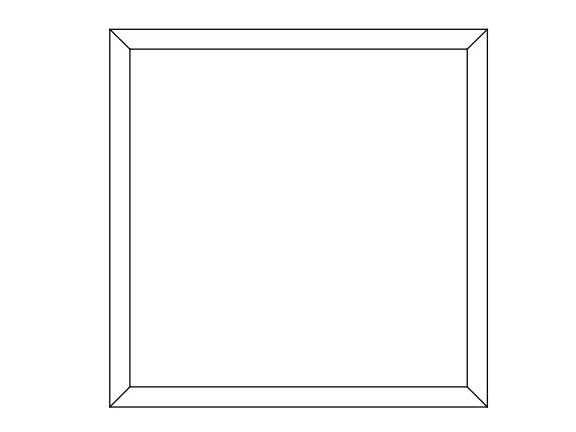

Fixed Window
French Casement

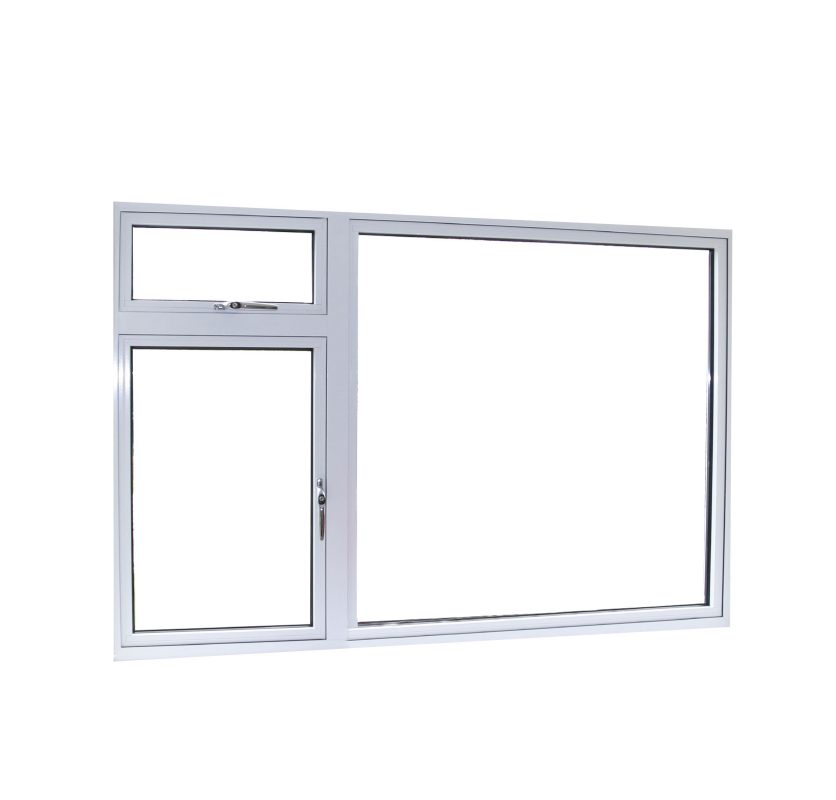

Left: Side Hung, Right: Fixed

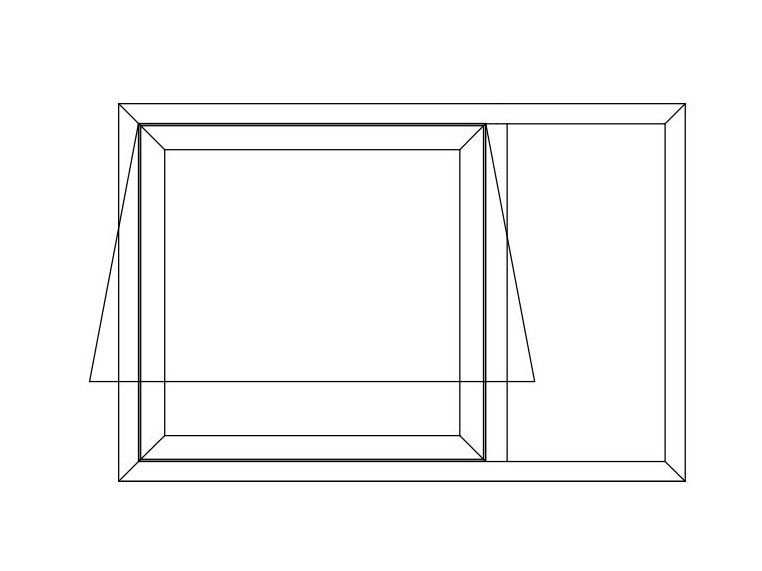

Left: Top Hung, Right: Fixed
Left & Right: Top Hung
Left, Right & Middle: Top Hung, Bottom Middle: Fixed
Left & Right: Side Hung, Middle: Top Hung, Bottom Middle: Fixed
Left & Right: Top Hung, Middle: Fixed

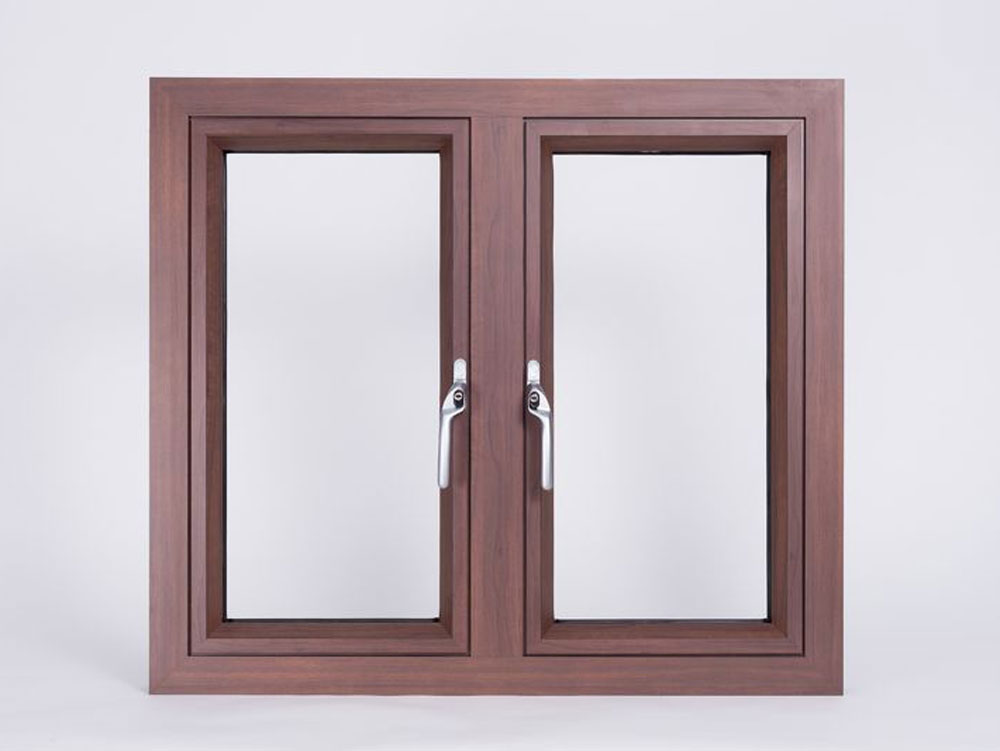

Left & Right: Side Hung, Middle: Fixed
Side Hung, Fixed

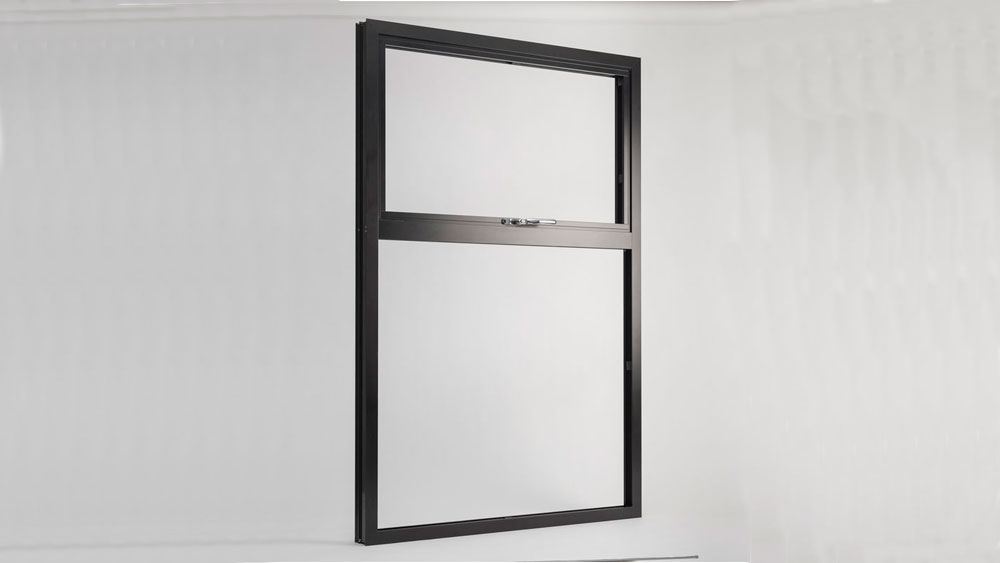

Top Hung, Fixed
Fixed, Top Hung, Fixed
Double Top Hung, Fixed
PREVIOUS
NEXT
AluK Colour Options
Whether you are looking for a statement colour or a more subtle colour for your casement windows, the AluK 58BW is available in the full RAL colour range. Giving you a 150 colours to choose from, guaranteeing that you will find the one that suits.
Powder coated to provide protection against the elements, as well as long lasting colour.
Single colour allows for the same colour inside and out. Or select the dual colour option, allowing you to select an exterior colour which matches the style of the outside of the house, whilst choosing a different colour for the interior of the casement window to blend in with the internal colour scheme.
Please find some of our most popular casement window colour options below.
For further inspiration take a look at the AluK colour collection brochure.
RAL Colours
RAL 7032 - Pebble Grey
RAL 7031 - Blue Grey
RAL 7016 - Anthracite Grey
RAL 7015 - Slate Grey
RAL 7012 - Basalt Grey
RAL 5003 - Ocean Blue
AluK Hardware Options
Handles are a key element of a casement window, as it is the part of the window which is most frequently touched, and judge on for its quality.
Handle colour options include either standard aluminium or colour coded to match the casement windows.
Plus, choose integral blinds, which are perfect for controlling the room temperature, maintaining privacy, protecting your furniture, as well as adding a stylish finishing touch to your room.
Integral blinds eliminate the need for cleaning, offering a wide selection of contemporary designs that will never get damaged.
Key Features
Tech Specs
Size Limits
Configurations
Colours
Key Features
Highlights
Available in three attractive styles from contemporary to traditional
Meets the most stringent of European standards
Optimal thermal performance for reduced heating bills
Suitable for all types of buildings, even with the highest safety requirements
Accessible homes variant available
Burglar resistant against determined intruders
Available in a marine grade pre-anodised finish
Manufactured on site
Options
Style Variants
Functional, Softline, Hidden Vent
Marine Grade Finish
Yes
Dual colour
Yes
Glazing
Double or triple
Trickle Vents
Yes
Technical Specifications
For Reynaer’s most accessible casement window.
Specifications
Performance
Value
U-value
1.2 W/m2K (dependent on frame/vent combination and glass thickness)
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class 9a (600 Pa)
Wind Load
Class C3 (1200 Pa)
Acoustic Performance
Rw (C; Ctr) = 42 (-2;-4) dB (triple glazing)
Fire Resistance
EN 13501-2; EN 1365-1; EN1634-1; EI 30; EI 60; EI 45; EW 30
Burglar Resistance
RC2/WK2 - RC3/WK3
Size and Weight Limits
Specifications
Configuration
Limit
Max Vent Size
1200w x 2800h mm
Max Weight Element
170 kg
Min Visible Width Frame (Outward Opening)
17.5 mm
Min Visible Frame-vent (Outward Opening)
93.5 mm
Min Visible Width T-profile
76 mm
Overall System Depth Frame
68 mm
Overall System Depth Vent
77 mm
Rebate Height
25 mm
Min Glass Thickness
4 mm
Max Glass Thickness
52 mm
Min Glass Thickness Vent
4 mm
Max Glass Thickness Vent
63 mm
Versatile Window Configurations
The Reynaers CS 77 casement window is available in a range of different configurations, aesthetics and hanging options to suit your projects requirements:
Style Options
|
Configurations Options
|
Hanging Options
|
CS 77 - Functional Style
CS 77 Hidden Vent Style
CS 77 Softline Style
CS 77 - Top Hung Window Outward Opening
Side Hung Window Outward Opening

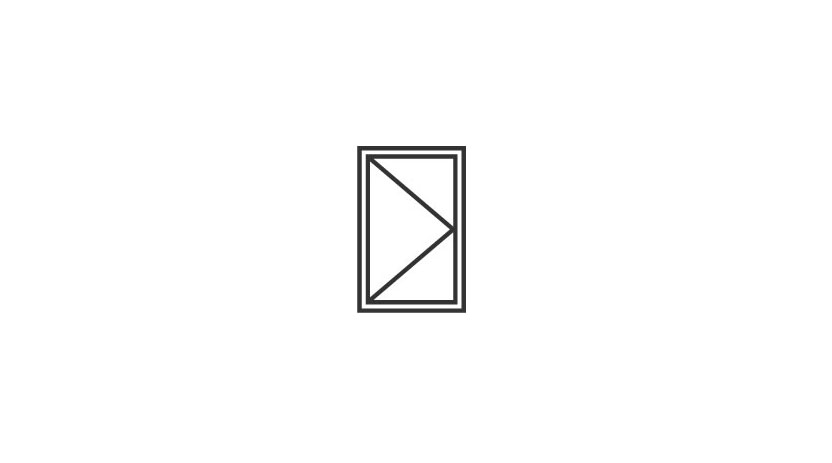

Side Hung

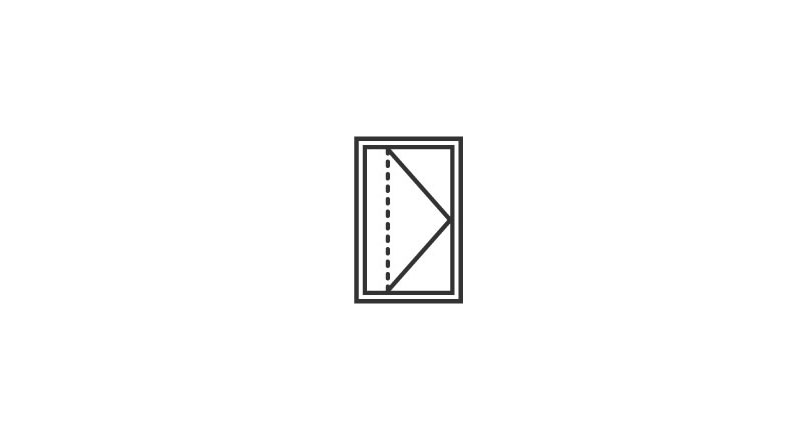

Side Hung with Friction Stays

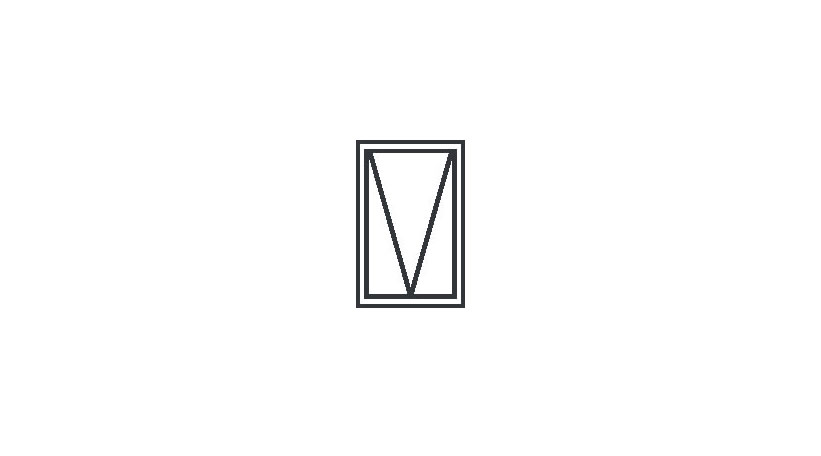

Top Hung
Double Casement Side Hung

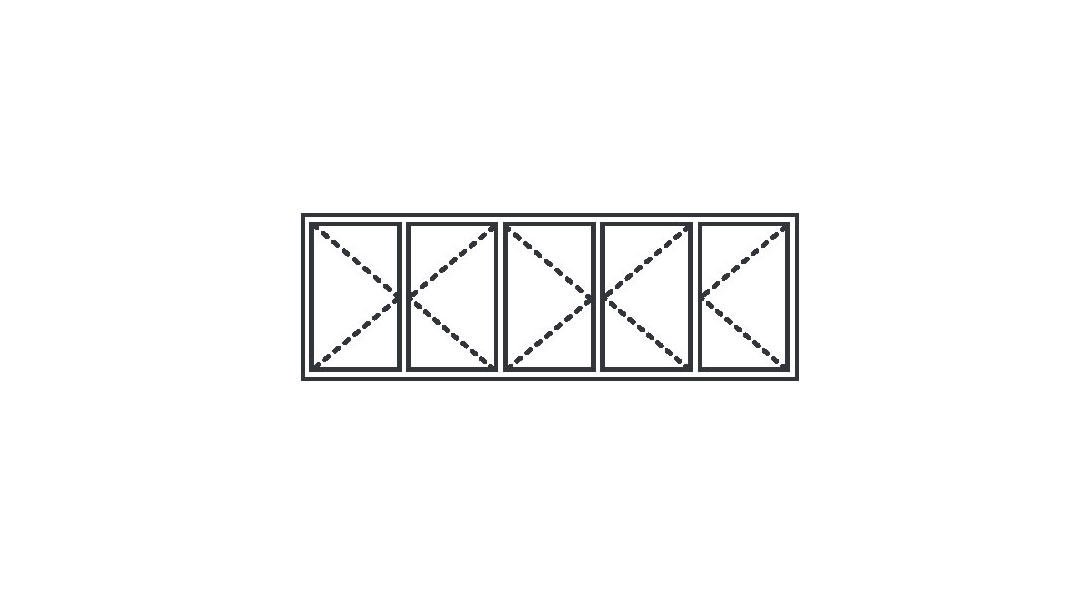

Multi Light Side Hung

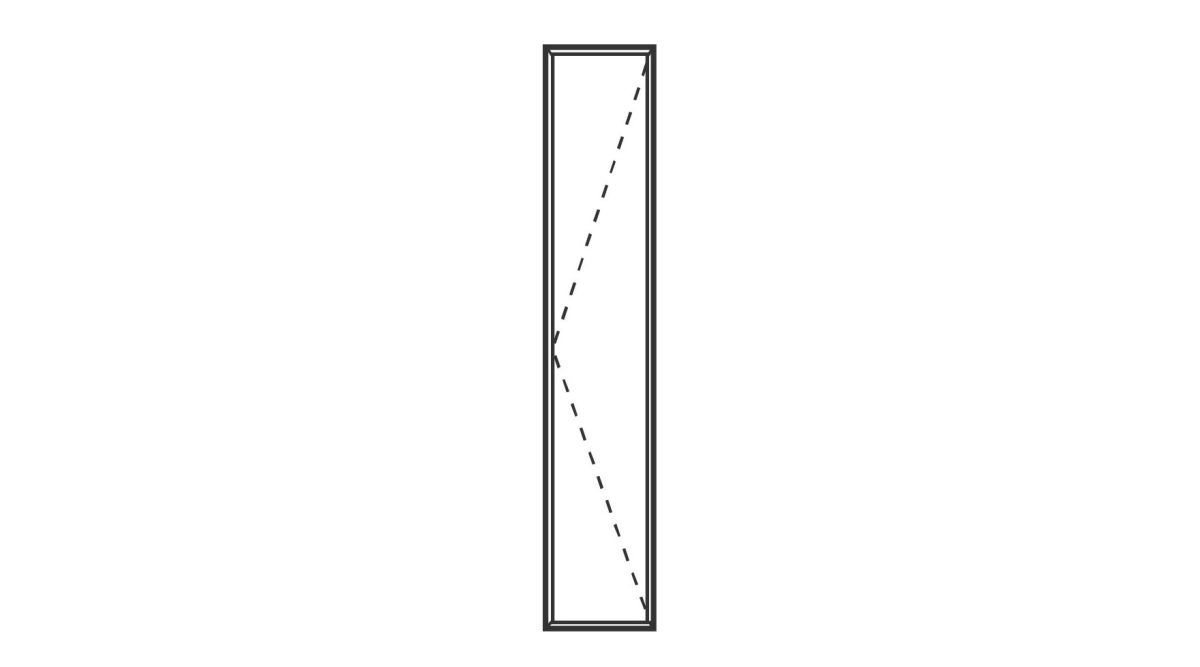

Ventilation Window
PREVIOUS
NEXT
Reynaers Colour Options
The Reynaers CS 77 casement window is available in a large range of RAL colours, in a choice of matt or gloss finish, metallic colours, textured metallic Coatex finishes, wood-grain finishes, and pre-anodised (recommended for marine locations) or anodised coating.
Select dual colour, if you are looking to have a different colour on the inside of the windows compared to outside.
Our Exeter team can help you choose the right colour for your project, whether a popular colour, or a unique bespoke RAL colour.
RAL Colours
RAL 7032 - Pebble Grey
RAL 7031 - Blue Grey
7016M - Anthracite Grey
7015M - Slate Grey
RAL 7012 - Basalt Grey
RAL 5003 - Ocean Blue
Key Features
Tech Specs
Size Limits
Configurations
Colours
Hardware
Key Features
Highlights

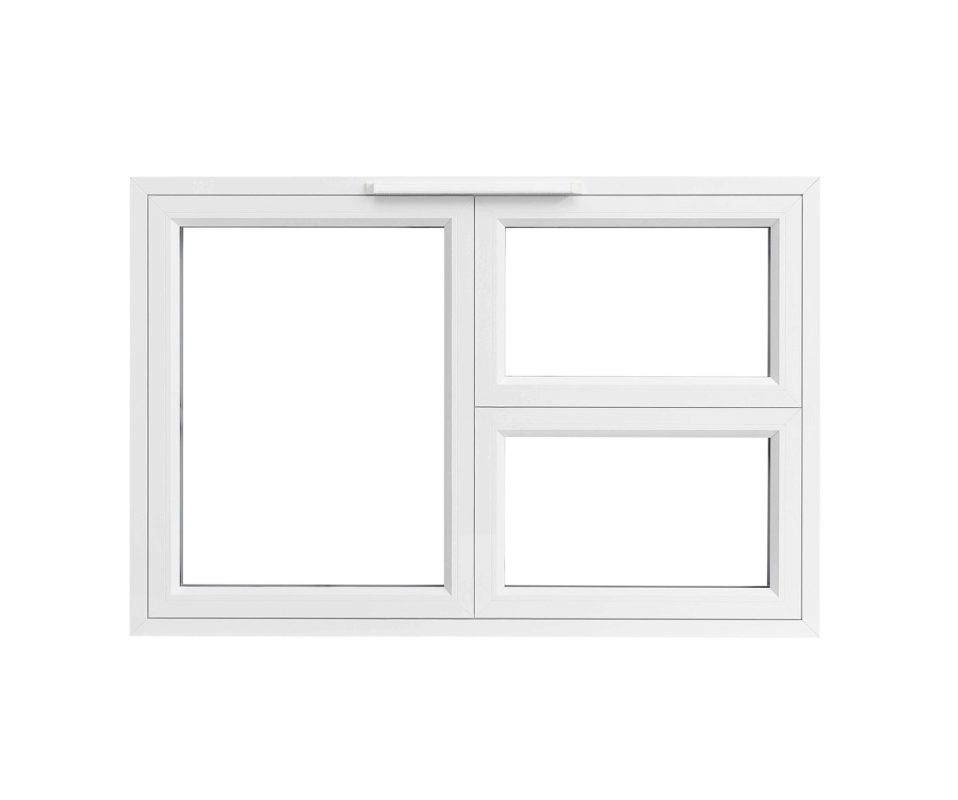

Smart and clean in appearance
Internal and external flush casement
Add Georgian bars to create a heritage/steel look
Create picture windows up to 7m2
Match gasket colour & drainage caps to window frames
Trickle vents to improve ventilation
Quality assured passing ISO 9001 standards
High quality locking system
PAS 24:2016 certification
Made in the UK
Options
Glazing Bars
Yes
Dual Colour
Yes
Glazing Options
28, 32, 44 mm
Gaskets
Black, White or Colour Coded
Restrictor Hooks
Yes
Trickle Vents
Yes
Technical Specifications
Specifications
Performance
Value
U-value (Double Glazing)
1.2 W/m2K
U-value (Triple Glazing)
0.8 W/m2K
Window Energy Rating (WER)
A++ to B
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class E1500 (1500 Pa)
Wind Load
Class B5 (2000 Pa)
Security
PAS 24:2016
BS EN 10088-2 Grade Certified
Yes
ISO 10077-2:2015 Certified
Yes
Frame Depth
80 mm
Frame and Sash Sightline
91 mm
Mullion and Sash Sightline
148 mm
Size and Weight Limits
Specifications
Configuration
Limit
Top Hung - Max Size
1500w x 1500h mm
Top Hung - Min Size
400w x 400h mm
Side Hung - Max Size
1000w x 1800h mm
Side Hung - Min Size
400w x 400h mm
Dummy Sash - Max Size
4800w x 4800h mm
Dummy Sash - Min Size
325w x 325h mm
Fixed Frame - Max Size
4800w x 4800h mm
Fixed Frame - Min Size
225w x 225h mm
Fixed Frame - Area
7sq.m
Bay Angle
117 degs to 175 degs
Versatile Window Configurations
The Origin OW-80 can be fabricated to fit many different sizes and configurations. These configurations include; fixed windows, dummy sash, multi-light, bay windows, French windows and gable windows. Plus choose from top hung or side hung hanging options.

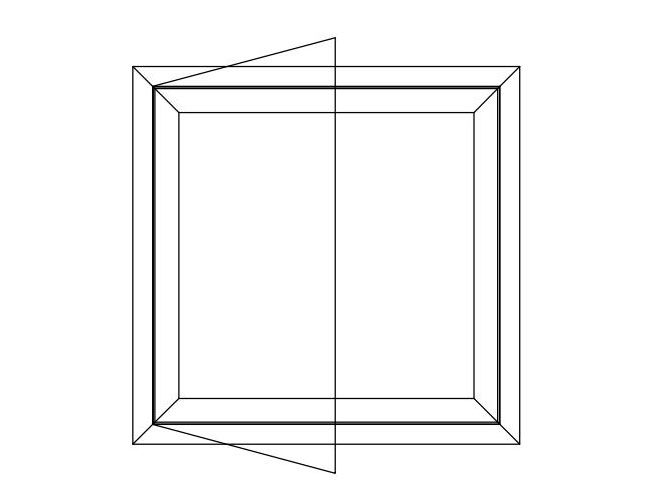

Side Hung Window
Origin-OW-80-Window-Style-2-Elevation

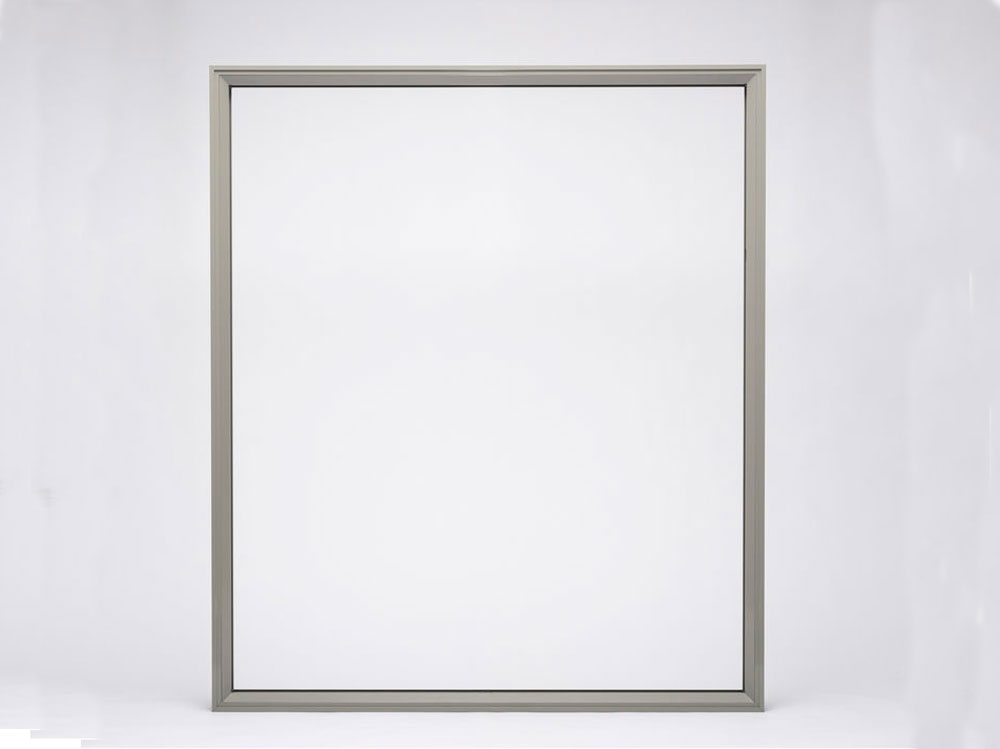

Fixed Light Window

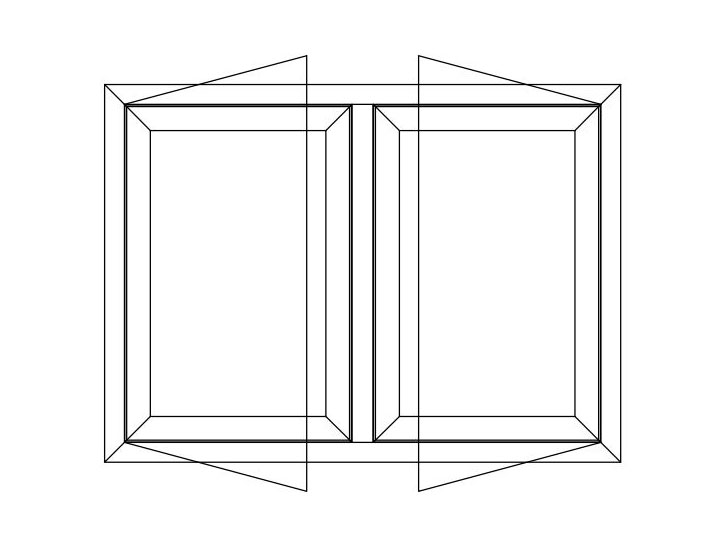

French Casement

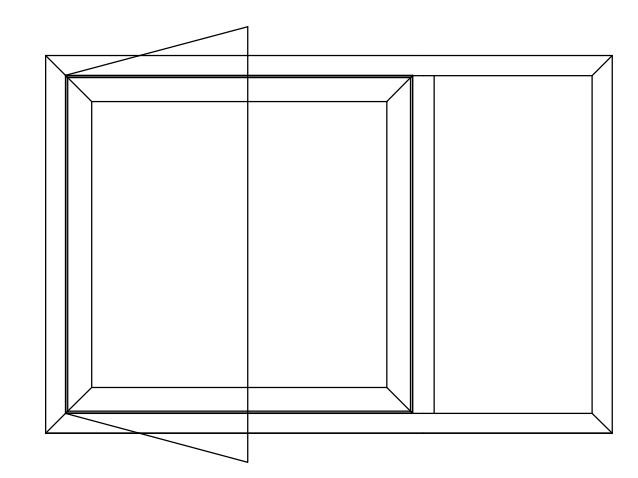

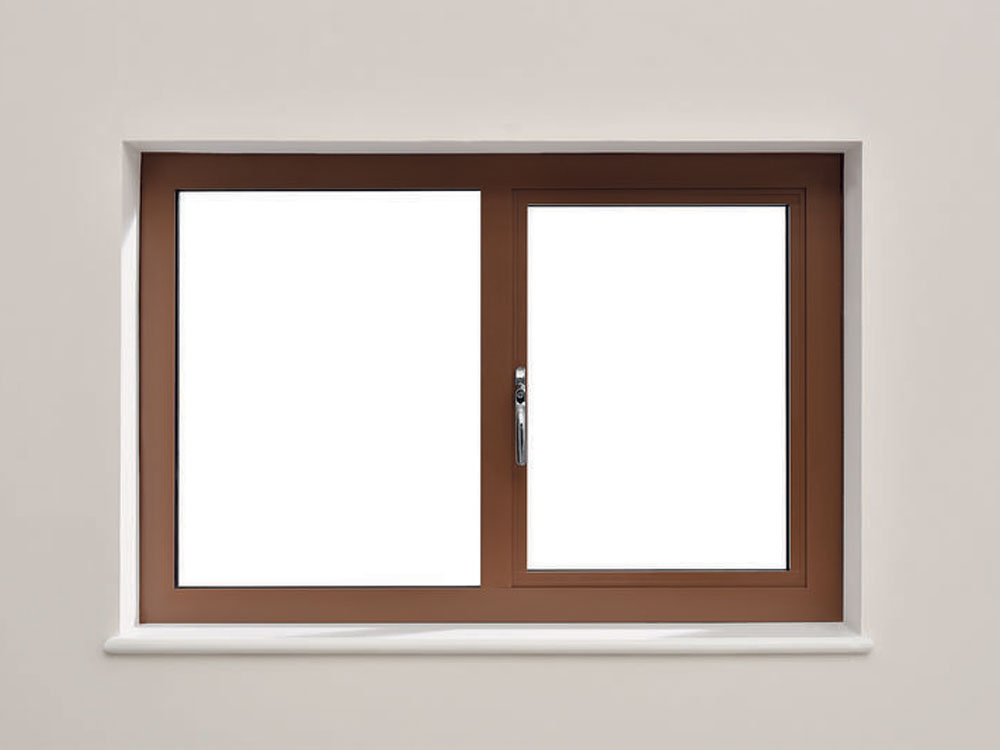

Left: Side Hung, Right: Fixed Light
Left & right: Top Hung
Left: Top Hung, Fixed Light
Left & Right: Side Hung, Middle: Fixed Light
Left & Right: Top hung, Middle: Fixed
Left & Right: Side Hung, Middle: Top Hung, Bottom Middle Fixed
Left & Right: Top Hung, Middle: Top Hung, Bottom Middle Fixed
Multi Light
Multi Light Top Hung
Multi Light Side Hung
Multi Light Top Hung
Side Hung, Fixed

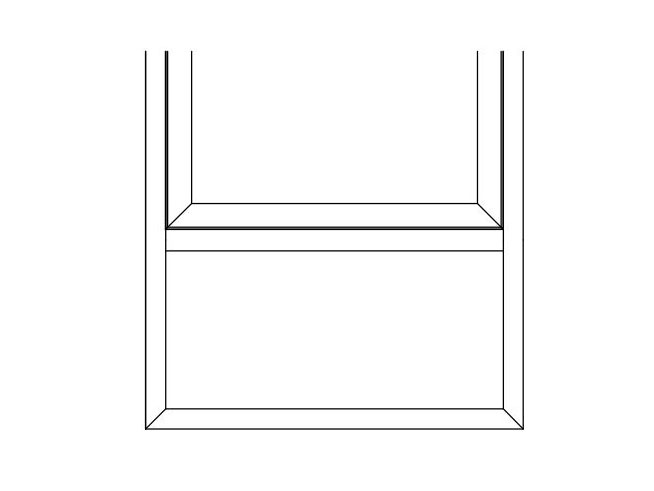

Side Hing over Fixed Light
Double Top Hung, Fixed
Fixed, Top hung, Fixed
PREVIOUS
NEXT
Origin Colour Options
The Origin OW-80 casement window is available in over 150 brilliant colours, allowing you to create a fully bespoke design to match the style of the property. Most of these colours can then be specified to have a gloss, matt or satin finish.
the highest grade power coating is applied to the frames for a flawless finish. With a durable yet smooth surface, it is highly resilient to the elements.
Find the option that suits your needs, or speak with a team member about our popular colours in Devon and Exeter.
150 RAL Colours
7016M - Anthracite Grey
7015M - Slate Grey
9010G - Hipca White
7021M - Black Grey
9005M - Jet Black
9010M - Hipca White
9007M - Dark Sliver Metallic
9910G/7016M - Dual Colour
Origin Window Hardware Options
Offering the same great quality as the casement windows, the handles have been given the same attention to detail, delivering the perfect finishing touch.
Choose a colour coordinated handle to match the frame, the Origin popular colour range, which includes; Jet Black, Slate Grey, Dark Silver, Black Grey, Anthracite Grey and Hipca White. Or choose from the metallic range; Chrome, Satin, Gold and Brushed Aluminium.
Why Exeter Trade Aluminium?
Quick Quote Turnaround
Competitive Trade Prices
Accurate Lead Times
Fast Track Options
Supplier Support
Versatile Configurations
Exeter Showroom
Manufactured Onsite
Expansive Delivery Areas
Full RAL Colours
See Our
Premium Ranges
Casement Window Prices Exeter & Devon
Get in touch with our team to request a quote for aluminium casement windows.
Please complete the short form with a summary of your requirements and a member of the team will be in touch with a quotation.
We supply robust casement windows to tradespeople and homeowners in Exeter, Devon, Cornwall, Somerset, Dorset, Wiltshire and surrounding areas.
Visit our Exeter showroom to see our casement windows in person. We will talk you through the glazing, colour and hardware options available.
