Gable End Windows Exeter & Devon
Completely bespoke gable end windows, designed to follow the pitch of the roof. A popular option on modern extensions and contemporary new-builds.
Our Affiliations

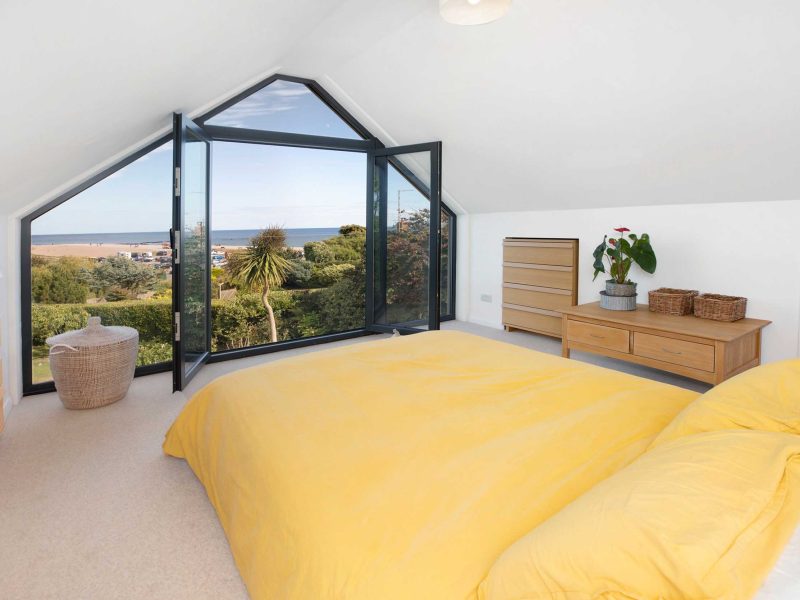

Gable End Windows Devon
Help to flood a room with natural light, and create a focal point by using a gable end window.

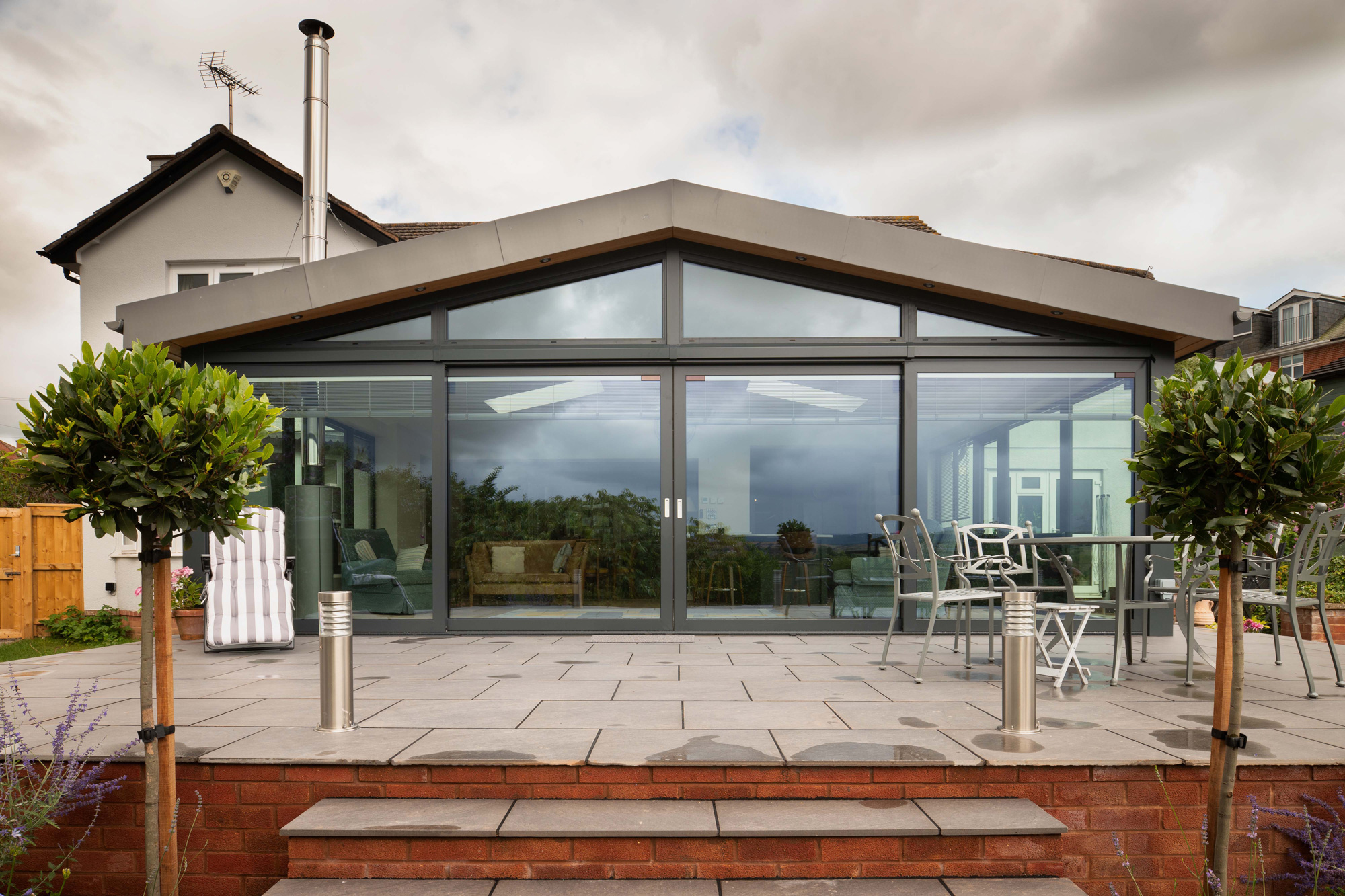

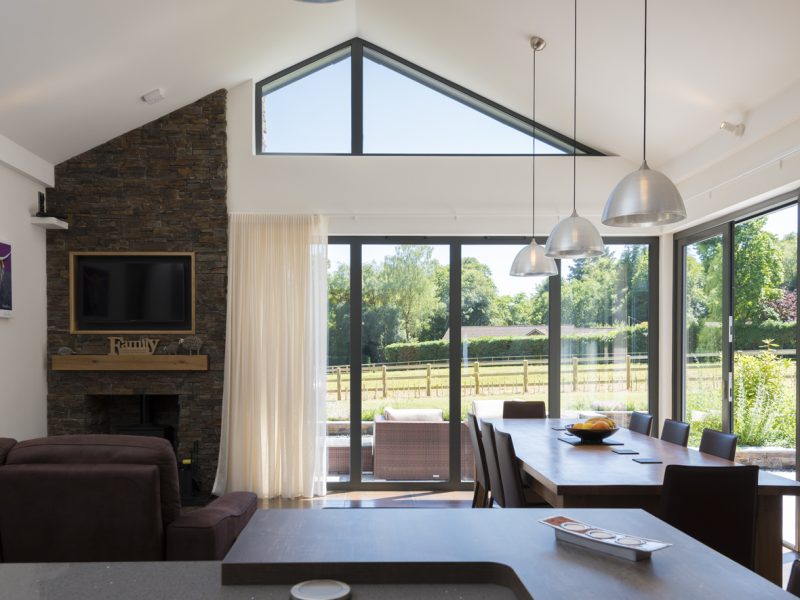

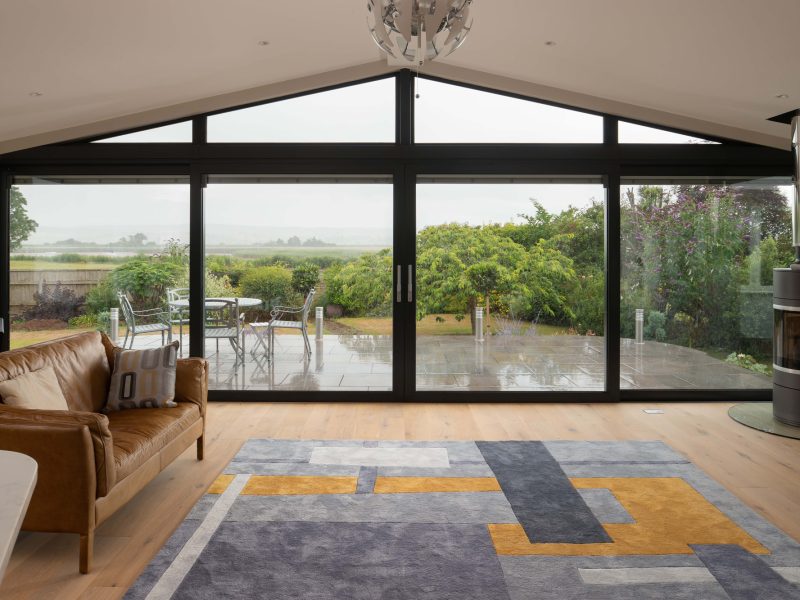

Designed to fit your space, a gable window is completely bespoke, allowing you to take full advantage of the space you have. Pair with a bi-folding door or sliding door below. Aligning the mullion sight lines, to maximise the light and views beyond. Creating floor to ceiling glazing.

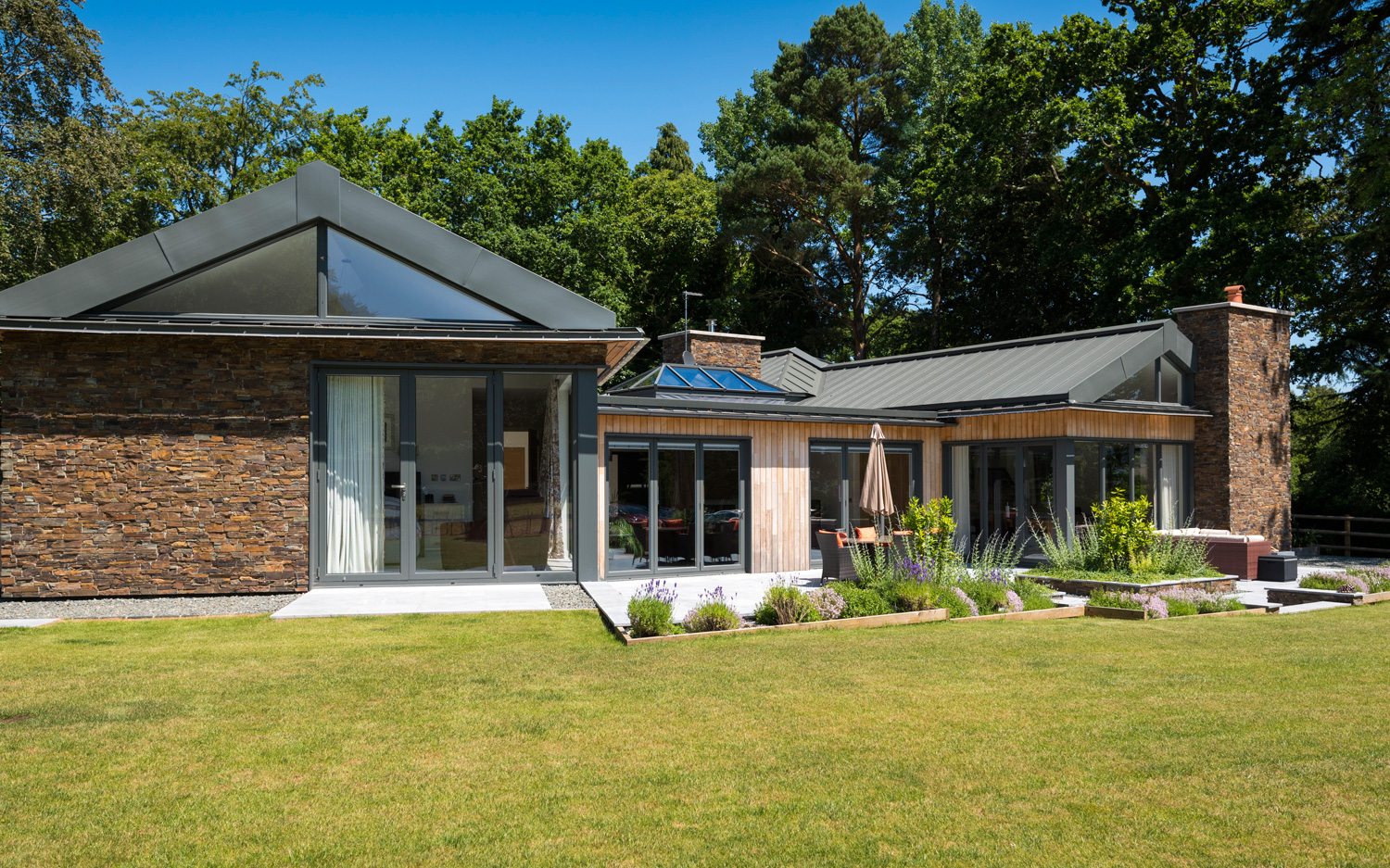

Energy Efficient
Often following the shape of the roof, a gable window is an eye catching feature.
Manufactured from premium grade aluminium on a completely bespoke basis. Benefiting from the great energy efficiency that our standard windows offer, helping to ensure that the property stays warm in the winter and cool in the summer. Whilst meeting and often exceeding the latest building regulations.
Technical Specifications
AluK 58BW
Reynaers SL 68
Origin OW-80
AluK 58BW
The attractive design of the AluK 58BW is perfect for both heritage properties, or to create a modern sleek look in a contemporary build. The frame offers clean lines and advanced functionality. A versatile system available in multiple configurations, including gable windows.
Reynaers SL 68
The SL 68 from Reynaers is a perfect choice for a gable window. With slim frames and clean lines, it is ideal for both contemporary and more traditional properties.
Origin OW-80
The Origin OW-80 window can be configured as an gable end window, and can be installed into even the shallowest of roof pitches.
Key Features
Tech Specs
Size Limits
Configurations
Colours
Key Features
Highlights
Part L compliant
Flexible configurations
High energy performance
Built to the highest UK standards
Modern, elegant aesthetics
Available in the full RAL colour range
Textured & anodised finishes available for improved looks
Manufactured on site
Options
Frame Depths
58 mm or 70 mm
Frame Styles
Chamfered, Contemporary, 70mm
Glass Thickness
23 mm - 40 mm
Glazing Bars
Yes
Marine Grade Finish
Yes
Trickle Vents
Yes
Technical Specifications
Strong, secure, superior
Specifications
Performance
Value
U-value (Double Glazing)
1.4 W/m2K
U-value (Triple Glazing)
1.2 W/m2K
Window Energy Rating (WER)
B – C
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class 9a (600 Pa)
Wind Resistance
Class E2400 (2400 Pa)
Acoustic Performance
Rw (C;Ctr) 42 (-1;-5) dB
Security
PAS 24:2016
Q-Mark Certified
Yes
Sightline (Frame to Vent)
75 mm
Sightline (Vent to Mullion)
89 mm
Sightline (Fixed Light)
43 mm
Downloads
Name
Type
Size
Size and Weight Limits
Specifications
Configuration
Limit
Fixed Light - Max Weight
250 kg
Downloads
Name
Type
Size
Versatile Window Configurations
With a variety of configuration options to choose from, the 58BW window by AluK can be configured to match your projects requirements, creating a unique solution which is bespoke to your property.
Choose from; Gable end, top hung, side hung, bottom hung, fixed light, multi-light and French casements.
Contact our Sales team if you have any questions about the various configuration options.

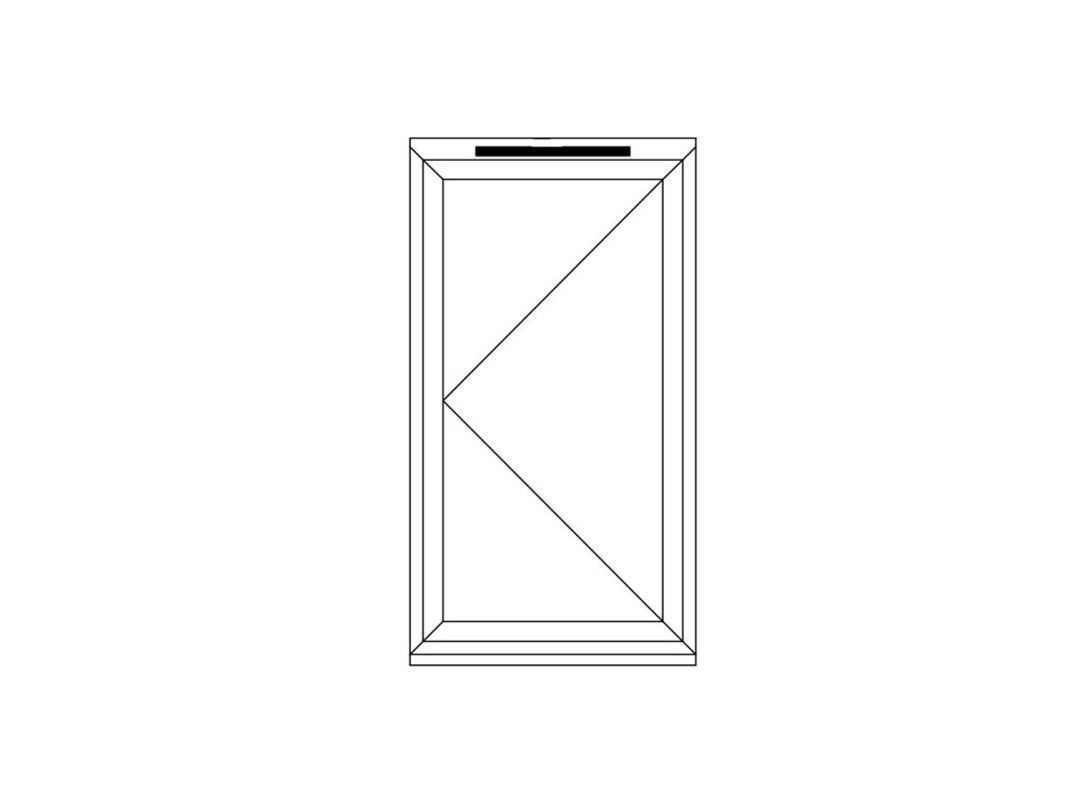

Side Hung

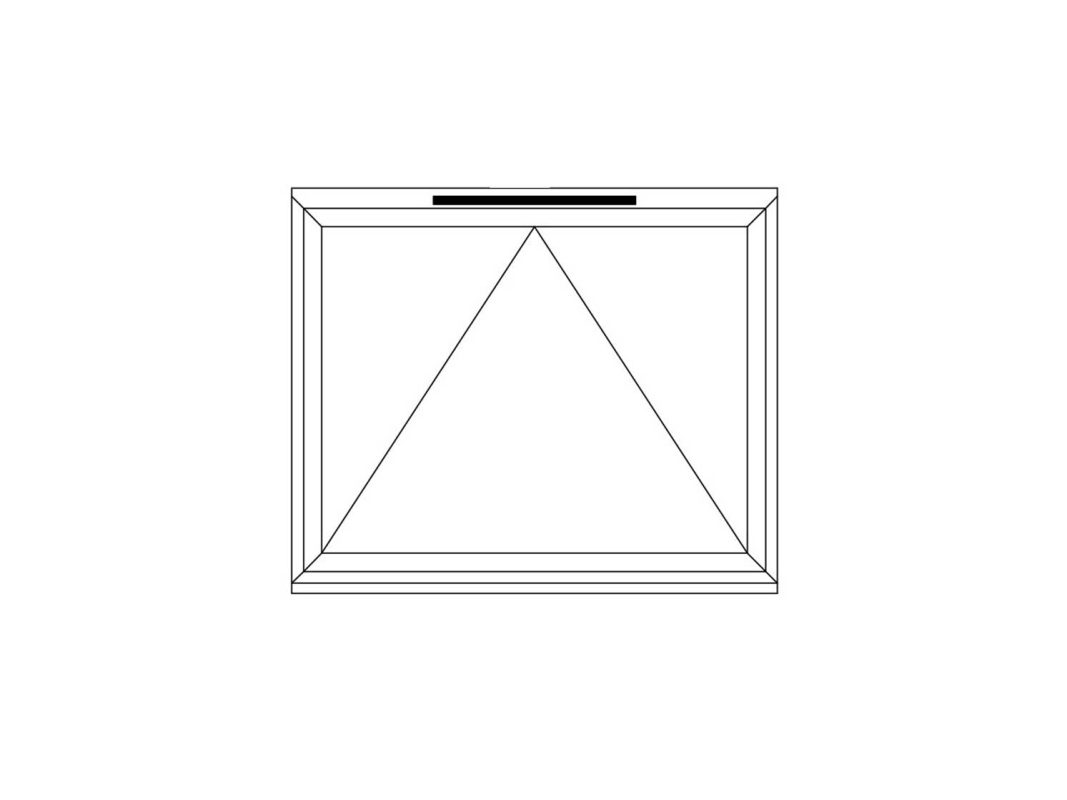

Top Hung

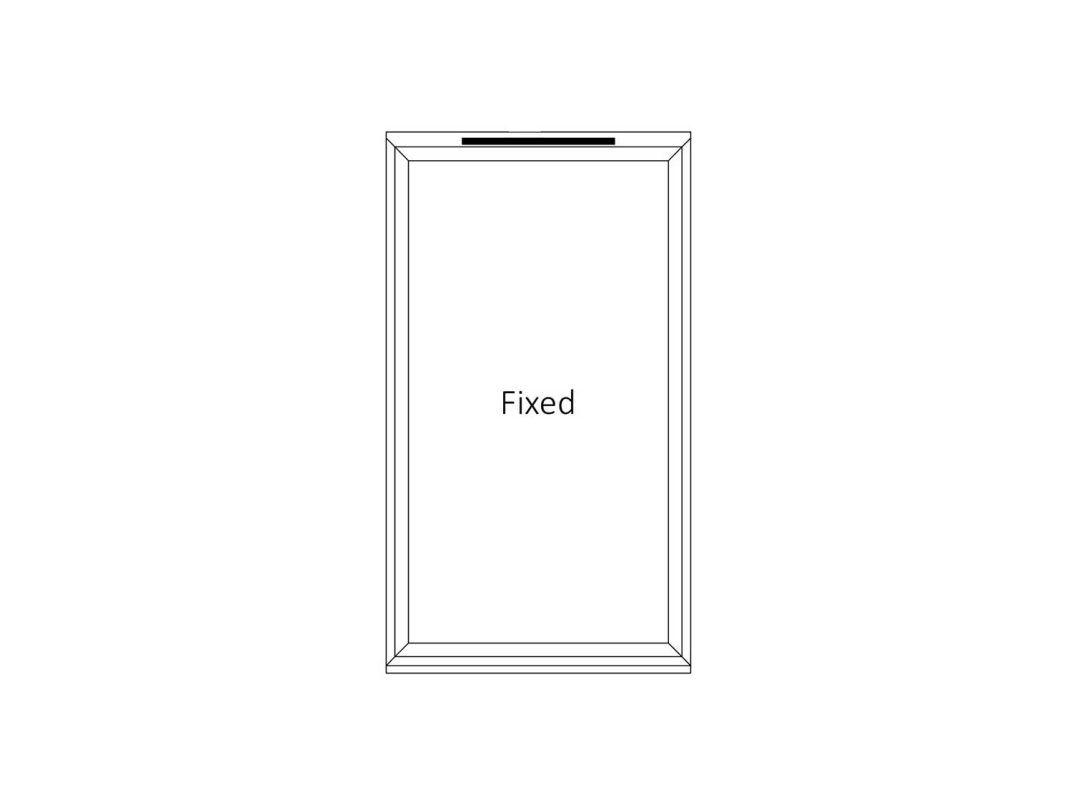

Fixed Window

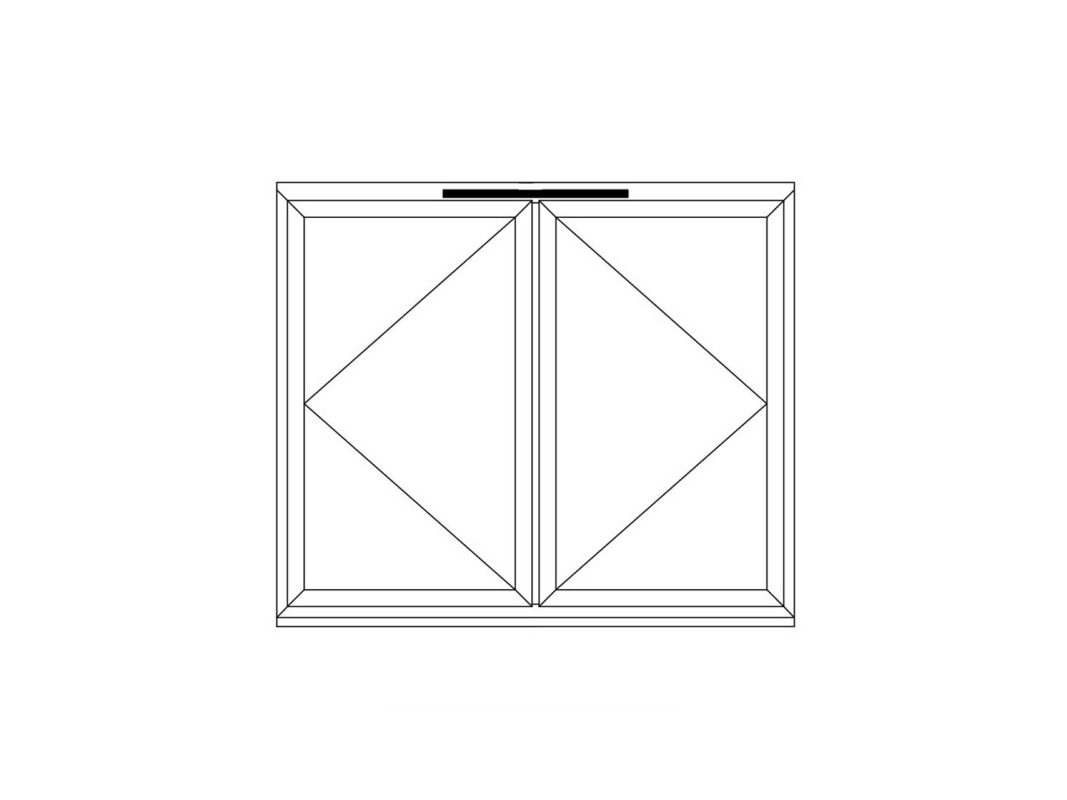

French Casement

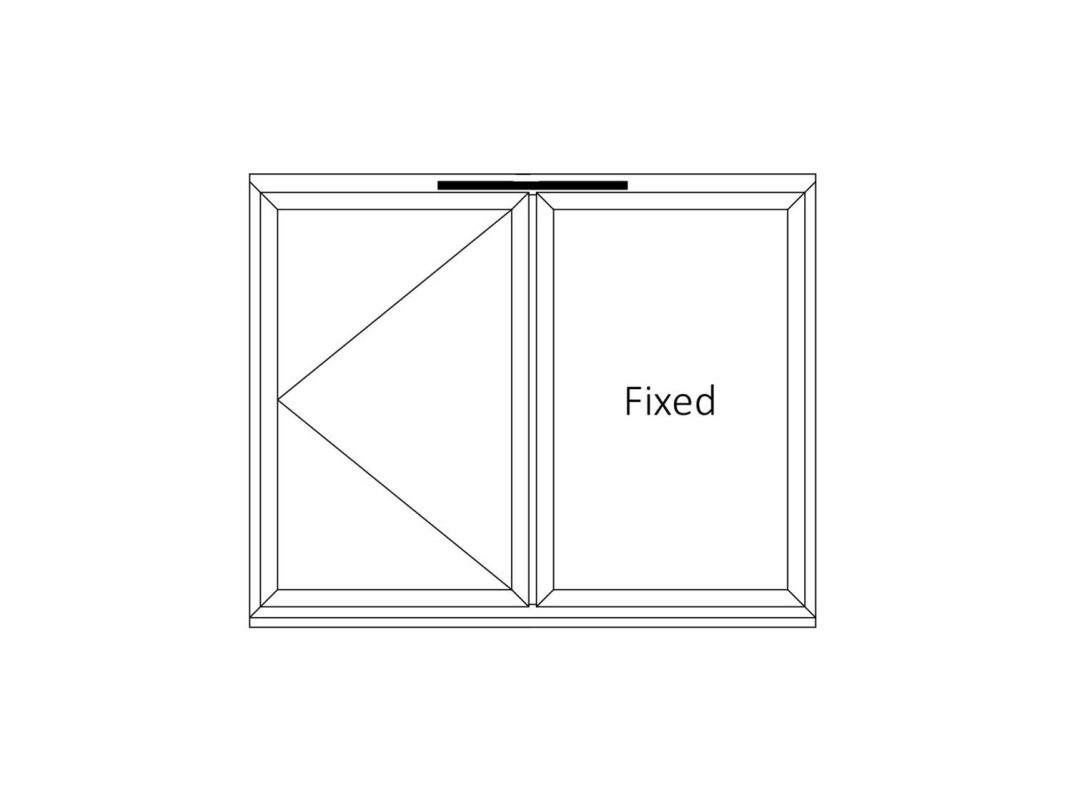

Left: Side Hung, Right: Fixed

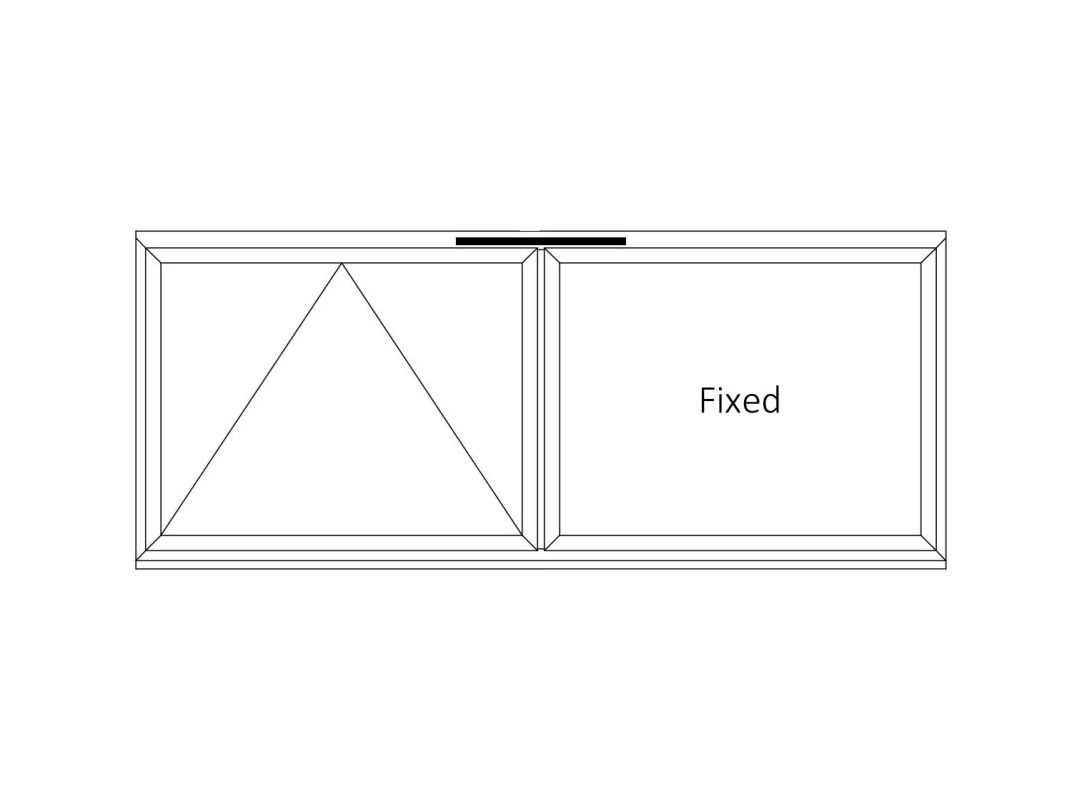

Left: Top Hung, Right: Fixed

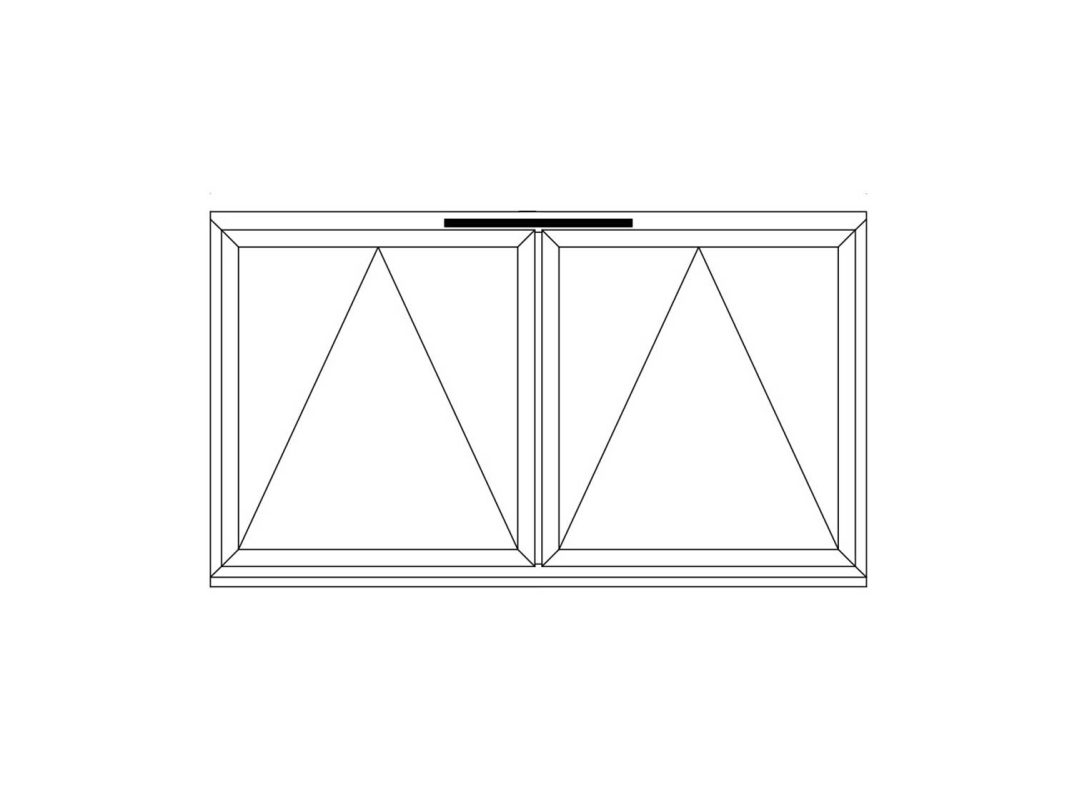

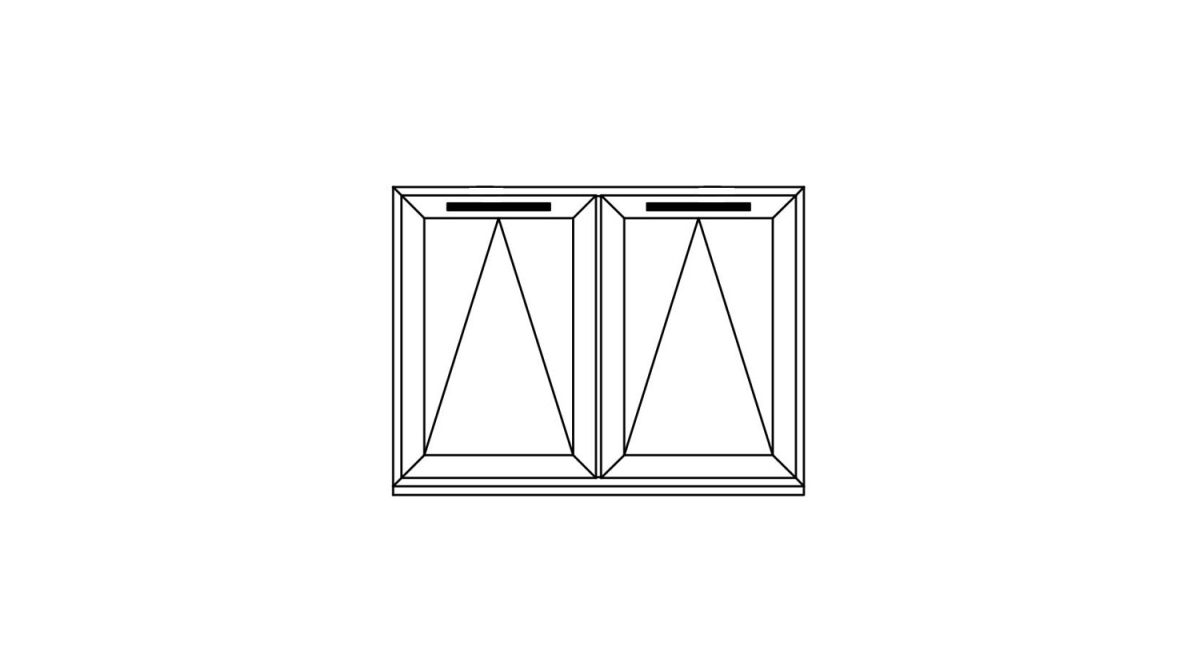

Left & Right: Top Hung

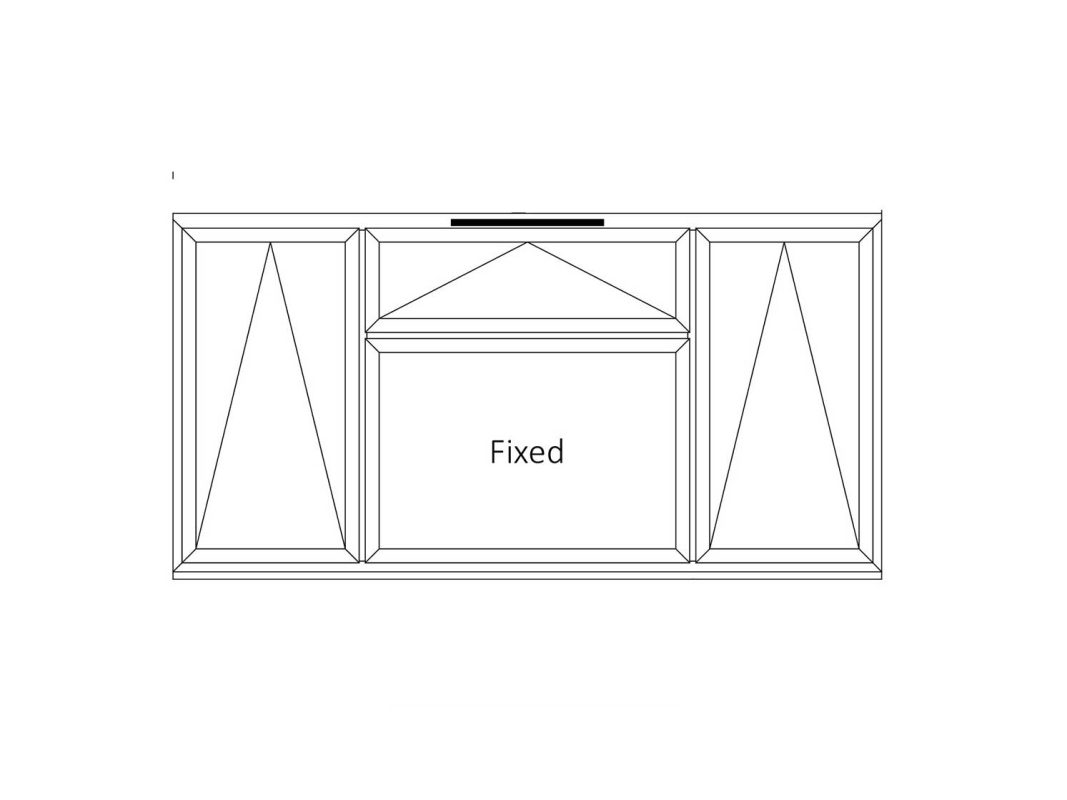

Left, Right & Middle: Top Hung, Bottom Middle: Fixed

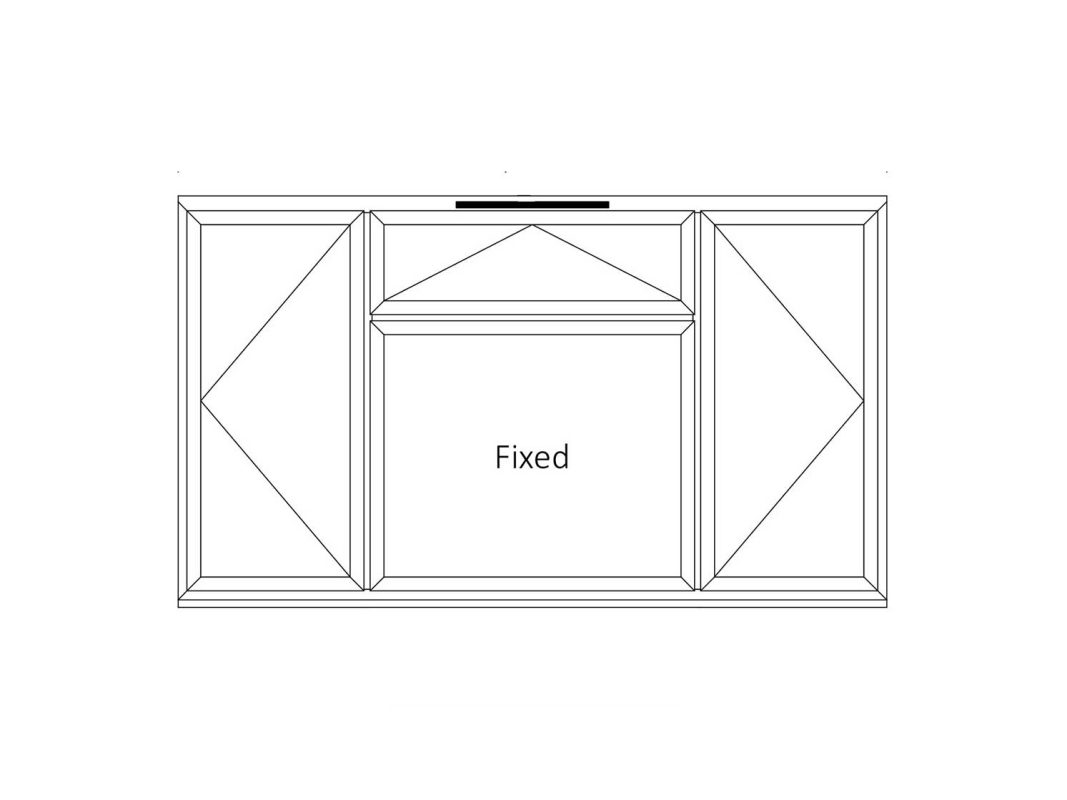

Left & Right: Side Hung, Middle: Top Hung, Bottom Middle: Fixed

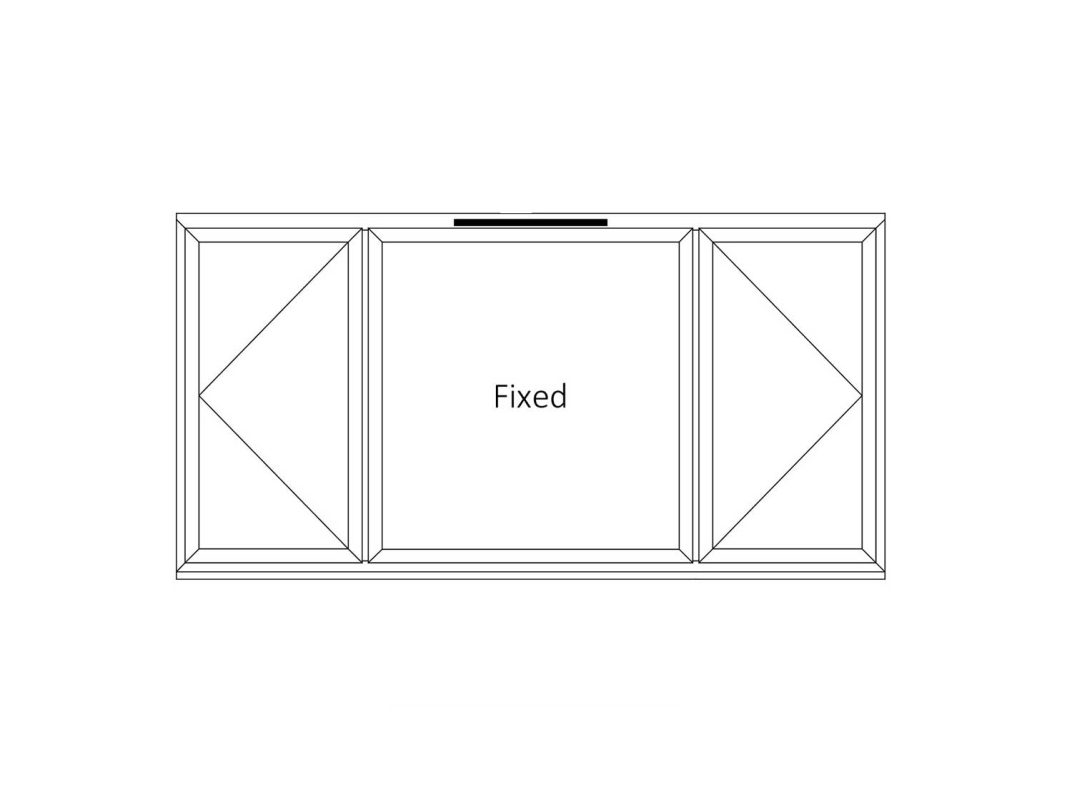

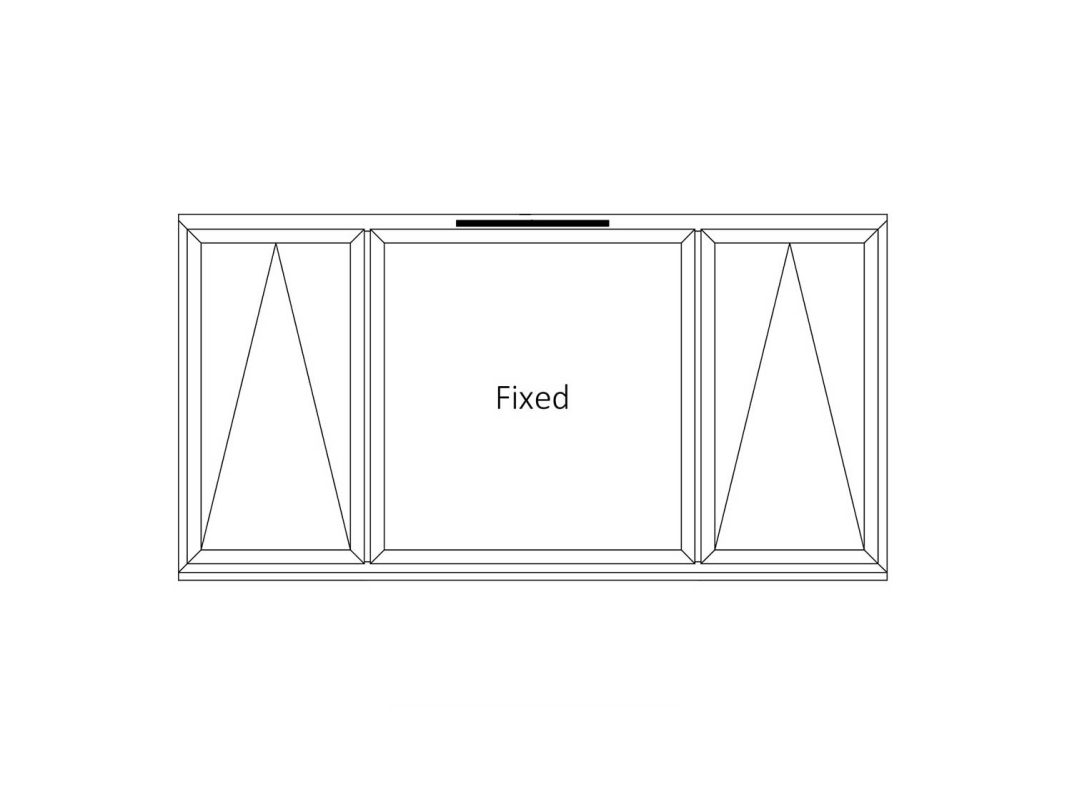

Left & Right: Top Hung, Middle: Fixed
Left & Right: Side Hung, Middle: Fixed

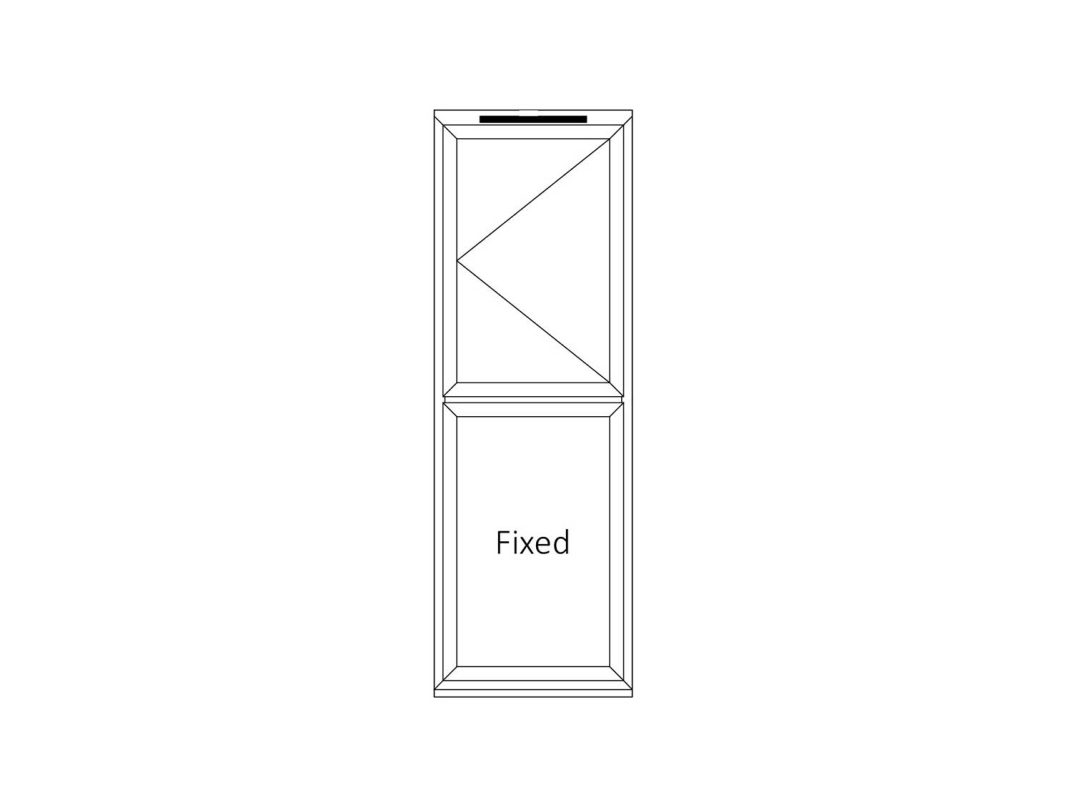

Side Hung, Fixed

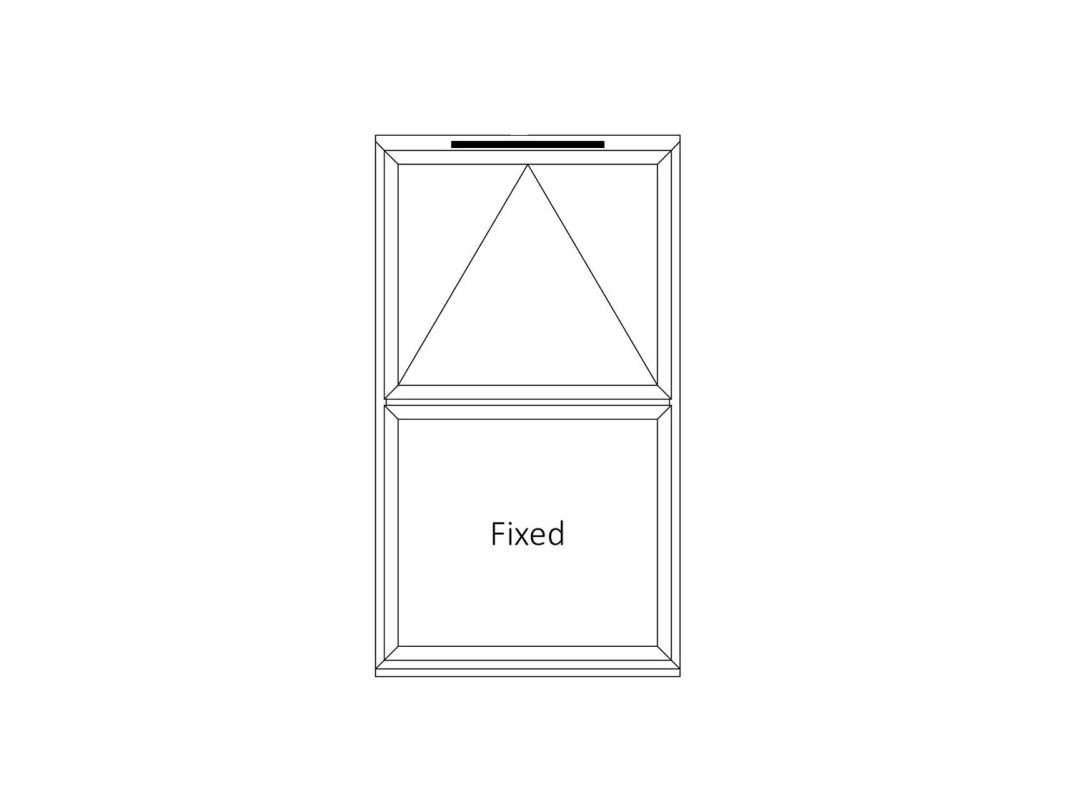

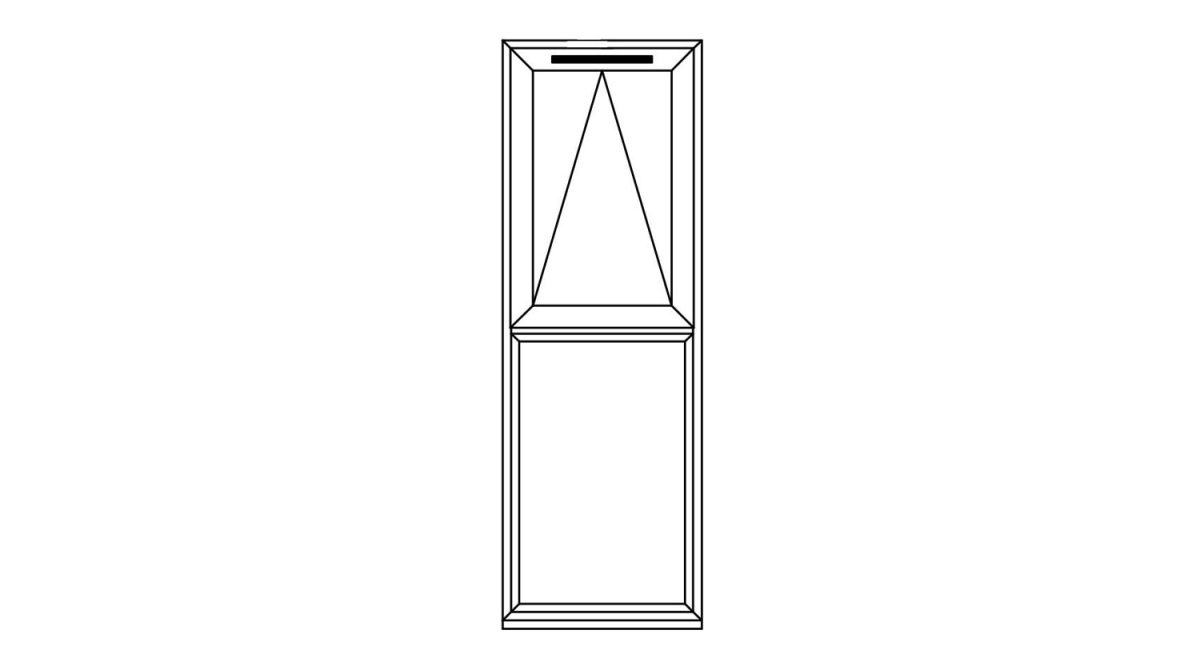

Top Hung, Fixed

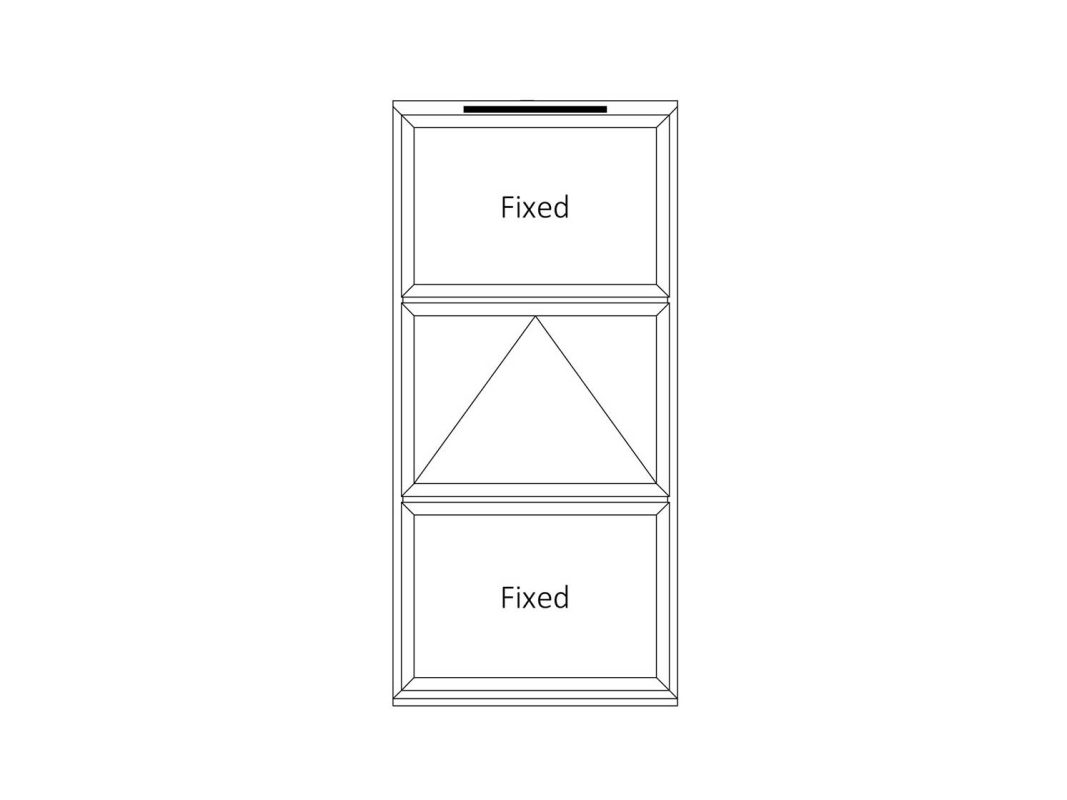

Fixed, Top Hung, Fixed
Double Top Hung, Fixed
PREVIOUS
NEXT
AluK Colour Options

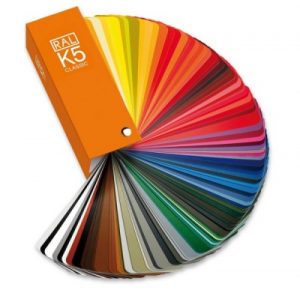

Whether you are looking for a statement colour or a more subtle colour for your gable end window, the AluK 58BW is available in the full RAL colour range. Giving you a 150 colours to choose from, guaranteeing that you will find the one that suits.
Powder coated to provide protection against the elements, as well as long lasting colour.
Single colour allows for the same colour inside and out. Or select the dual colour option, allowing you to select an exterior colour which matches the style of the outside of the house, whilst choosing a different colour for the interior of the casement window to blend in with the internal colour scheme.
Please find some of our most popular casement window colour options below.
For further inspiration take a look at the AluK colour collection brochure.
RAL Colours
RAL 7032 - Pebble Grey
RAL 7031 - Blue Grey
RAL 7016 - Anthracite Grey
RAL 7015 - Slate Grey
RAL 7012 - Basalt Grey
RAL 5003 - Ocean Blue
Key Features
Tech Specs
Size Limits
Configurations
Colours
Key Features
Highlights
Ultra slim frame
Doc L compliant
Ideal for both contemporary and traditional properties
Strong and durable
U-value as low as 1.1W/m2K
Window Energy Rating up to A++
Available in a marine grade pre-anodised finish
Manufactured on site
Options
Marine Grade Finish
Yes
Dual colour
Yes
Glazing
Double or Triple
Trickle Vents
Yes
Technical Specifications
For Reynaer’s most accessible casement window.
Specifications
Performance
Value
U-value (Double Glazing)
1.4 W/m2K
U-value (Triple Glazing)
1.1 W/m2K
Air Tightness
Class 4 (600 Pa)
Water Tightness
E1200 (1200 Pa)
Wind Load
Class C (s1/3000)
Acoustic Performance
47(-2; -7) dB
Security
PAS 24:2016
Size and Weight Limits
Specifications
Configuration
Limit
Max Element Size
1330w x 1530h mm
Min Element Size
530w x 330h mm
Min Visible Width T-profile
76 mm
Frame Depth
78 mm
Min Glass Thickness
24 mm
Max Glass Thickness
43 mm
Versatile Window Configurations
The slimline window from Reynaers can be manufactured to your exact gable end requirements. Align the mullion sight lines to the lines of the sliding doors or bi-folds below. Or create equilateral, isosceles or right-angle triangle gables.
Reynaers Colour Options
We offer an array of varied colours for signature styles and classic looks. With such attractive options for gable aluminium windows, homeowners can create fully bespoke designs to suit the style of their property and to match their tastes.
Choose from one of our most popular colours below, or from the RAL colour range of over 150 RAL colours. In a choice of matt or gloss finish, metallic colours, textured metallic Coatex finishes, wood-grain finishes, and pre-anodised (recommended for marine locations) or anodised coating.
RAL Colours
RAL 7032 - Pebble Grey
RAL 7031 - Blue Grey
7016M - Anthracite Grey
7015M - Slate Grey
RAL 7012 - Basalt Grey
RAL 5003 - Ocean Blue
Key Features
Tech Specs
Size Limits
Configurations
Colours
Key Features
Highlights
Smart and clean in appearance
Choose from triangle, triangle with upstands, trapezoid and trapezoid with upstands configuration options
Match gasket colour & drainage caps to window frames
Trickle vents to improve ventilation
Quality assured passing ISO 9001 standards
High quality locking system
PAS 24:2016 certification
Made in the UK
Options
Glazing Bars
Yes
Dual Colour
Yes
Glazing Options
28, 32, 44 mm
Gaskets
Black, White or Colour Coded
Trickle Vents
Yes
Technical Specifications
Specifications
Performance
Value
U-value (Double Glazing)
1.2 W/m2K
U-value (Triple Glazing)
0.8 W/m2K
Window Energy Rating (WER)
A++ to B
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class E1500 (1500 Pa)
Wind Load
Class B5 (2000 Pa)
Security
PAS 24:2016
BS EN 10088-2 Grade Certified
Yes
ISO 10077-2:2015 Certified
Yes
Frame Depth
80 mm
Size and Weight Limits
Specifications
Configuration
Limit
Fixed Frame - Max Size
4800w x 4800h mm
Fixed Frame - Min Size
225w x 225h mm
Fixed Frame - Area
7sq.m
Versatile Window Configurations
The Origin OW-80 can be fabricated to fit many different sizes and configurations. These configurations include; fixed windows, dummy sash, multi-light, bay windows, French windows and gable windows. Plus choose from top hung or side hung hanging options.

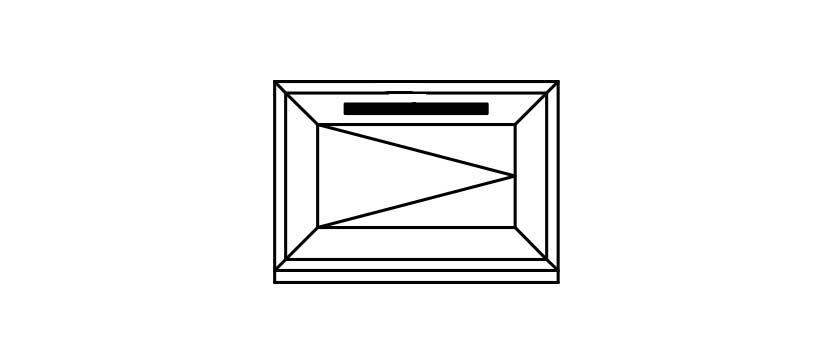

Side Hung Window

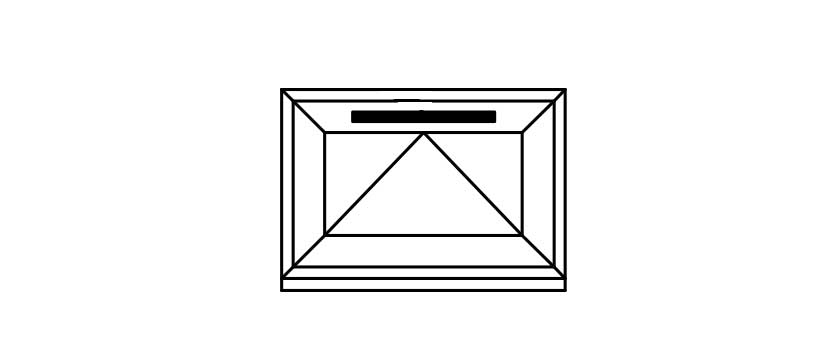

Origin-OW-80-Window-Style-2-Elevation

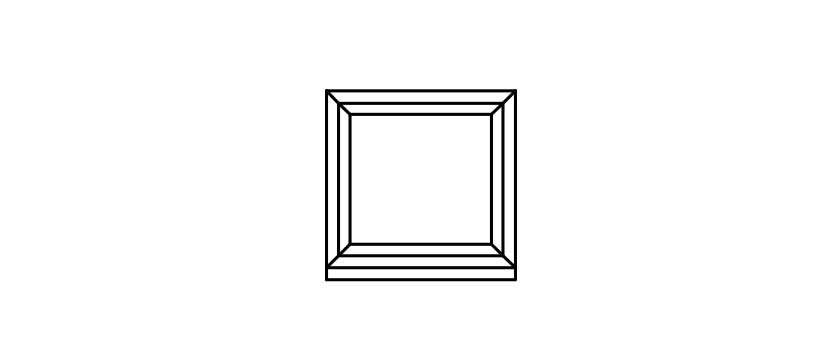

Fixed Light Window

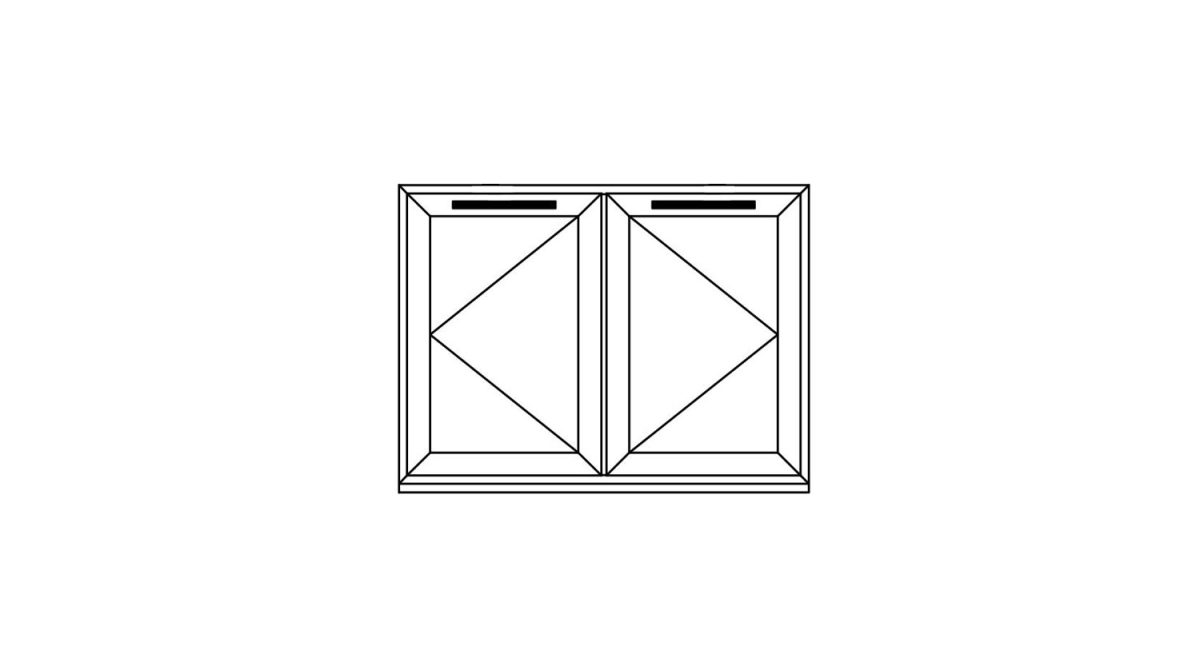

French Casement

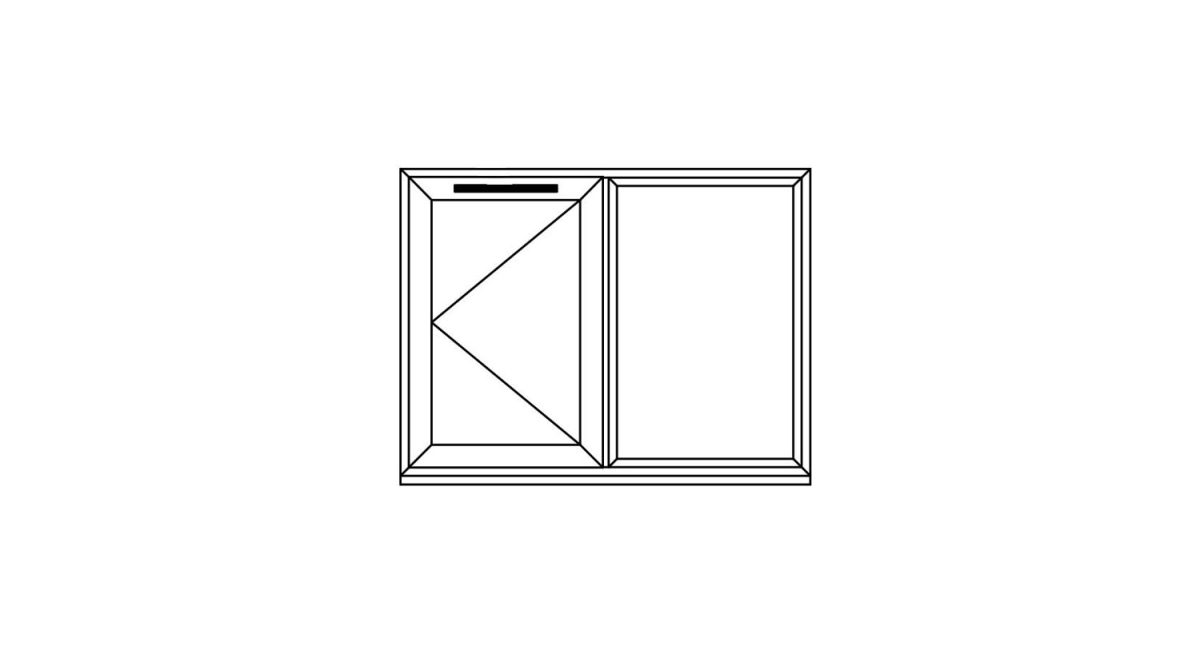

Left: Side Hung, Right: Fixed Light
Left & right: Top Hung

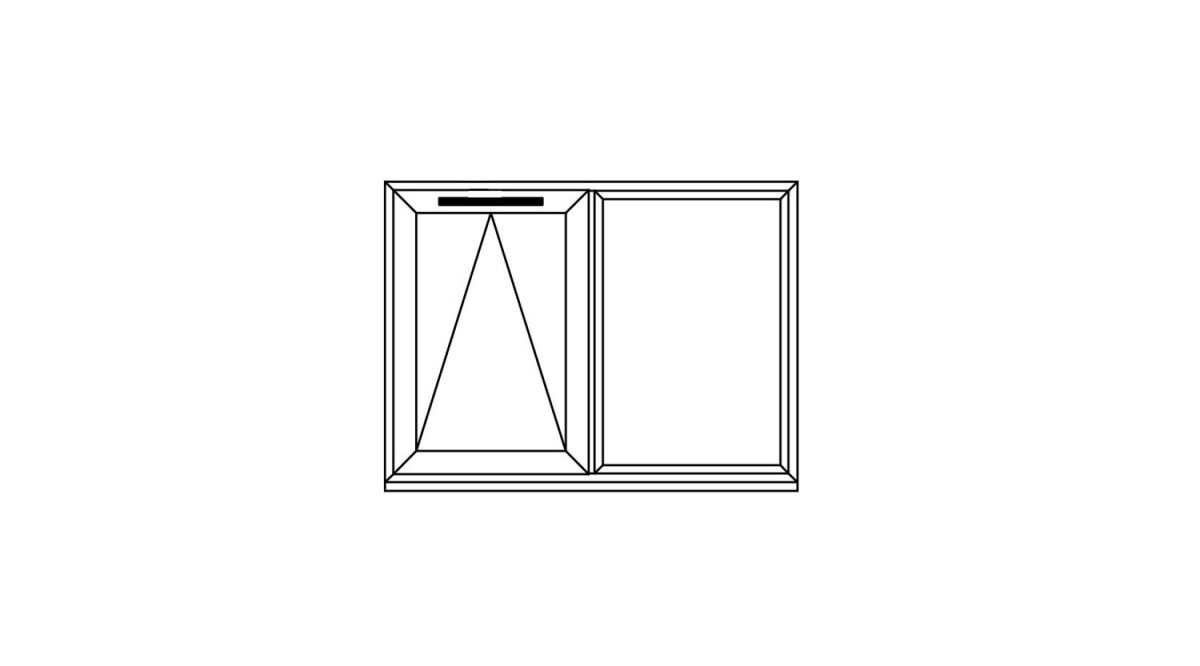

Left: Top Hung, Fixed Light
Left & Right: Side Hung, Middle: Fixed Light
Left & Right: Top hung, Middle: Fixed

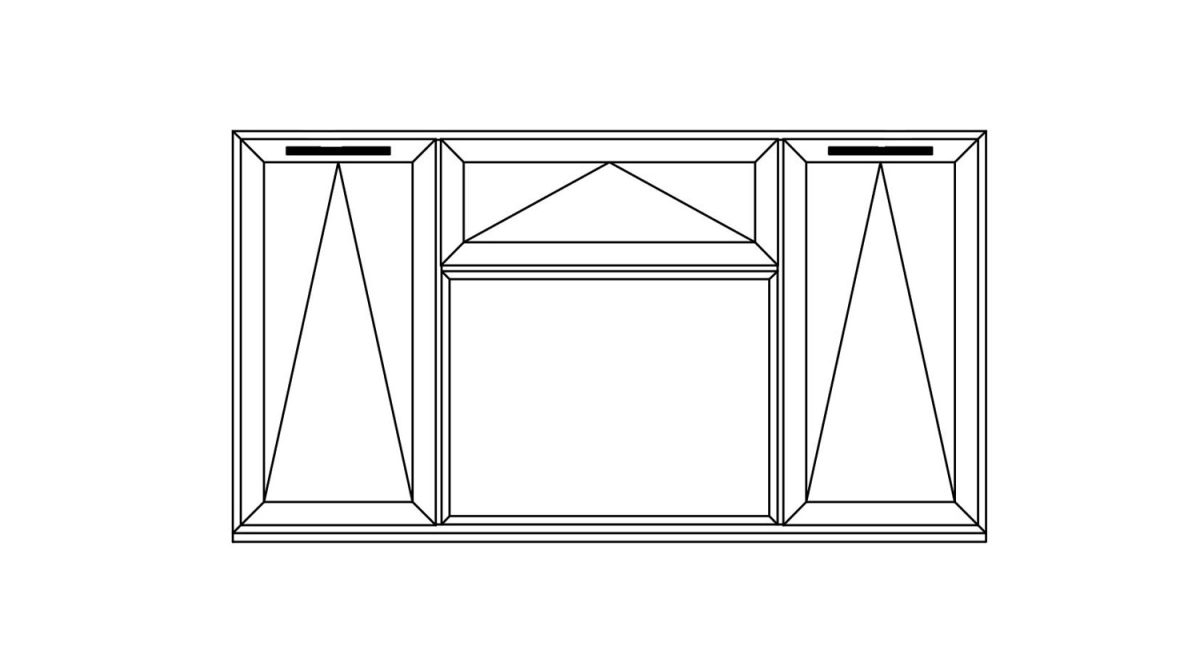

Left & Right: Side Hung, Middle: Top Hung, Bottom Middle Fixed

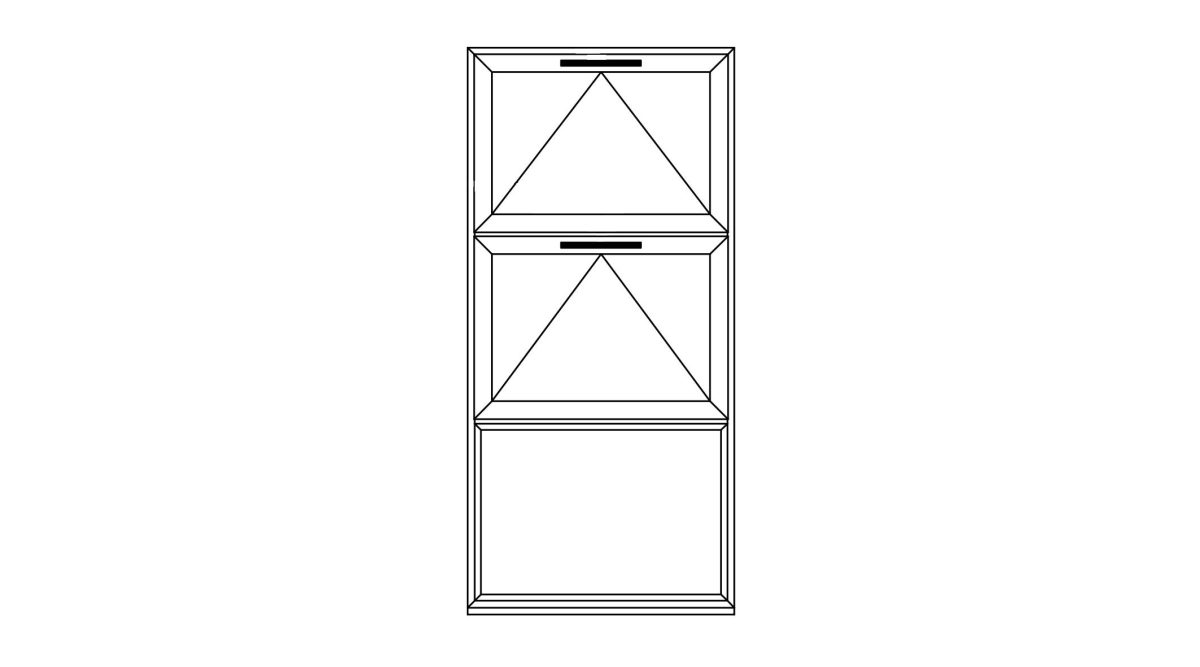

Left & Right: Top Hung, Middle: Top Hung, Bottom Middle Fixed
Multi Light

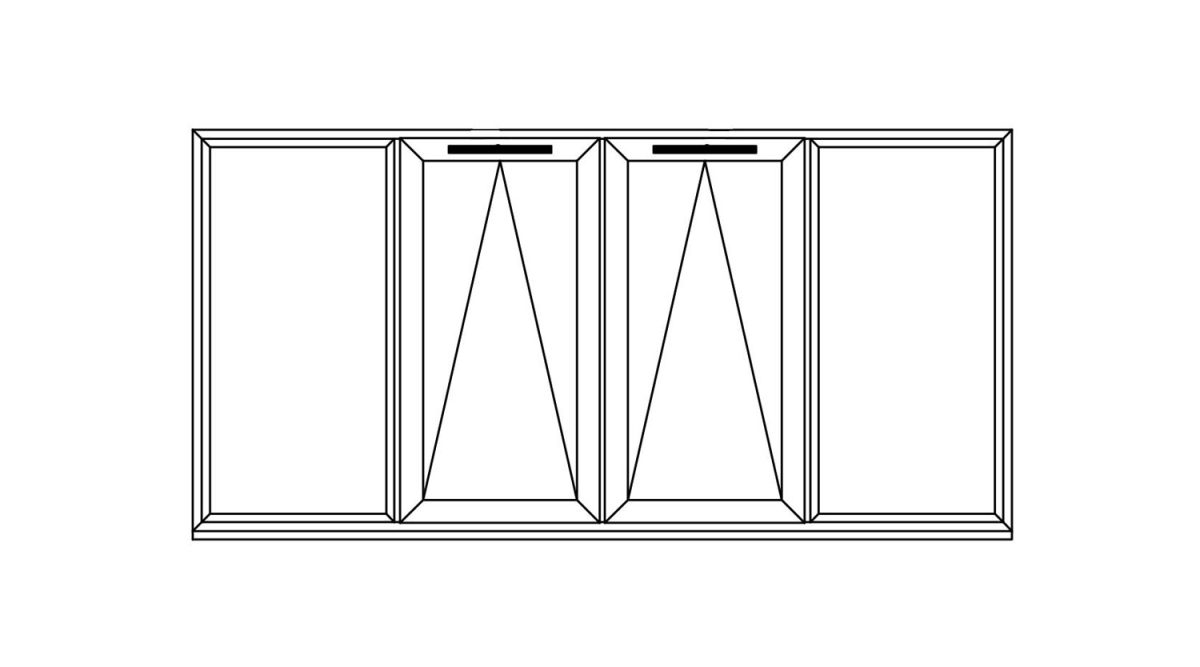

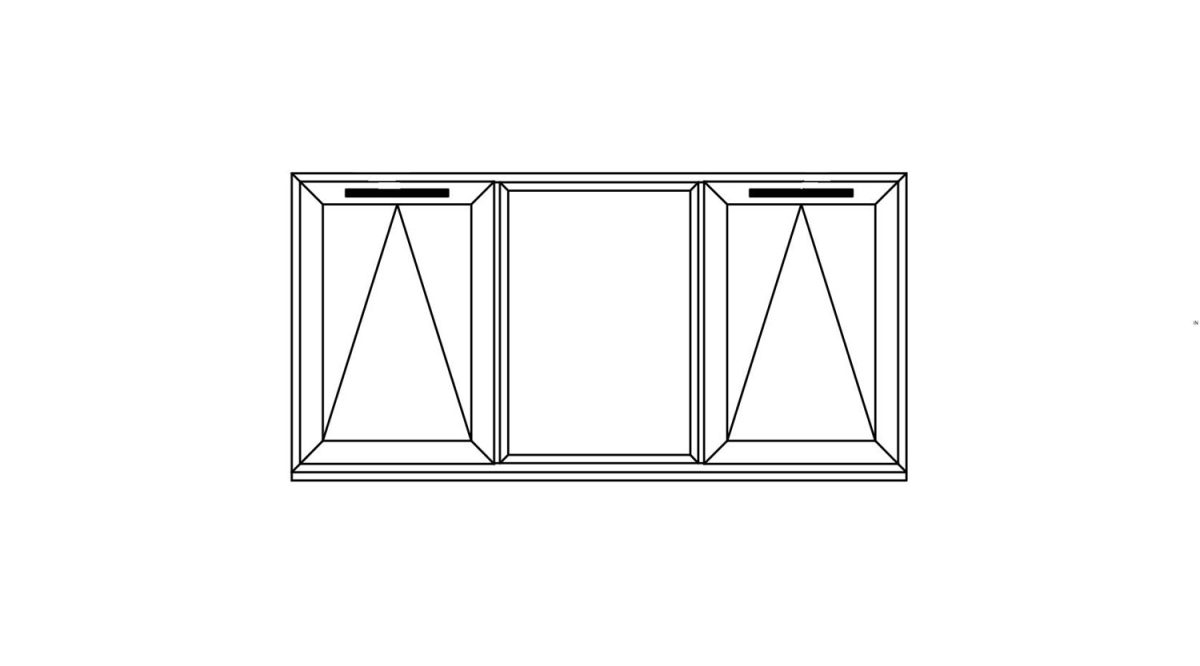

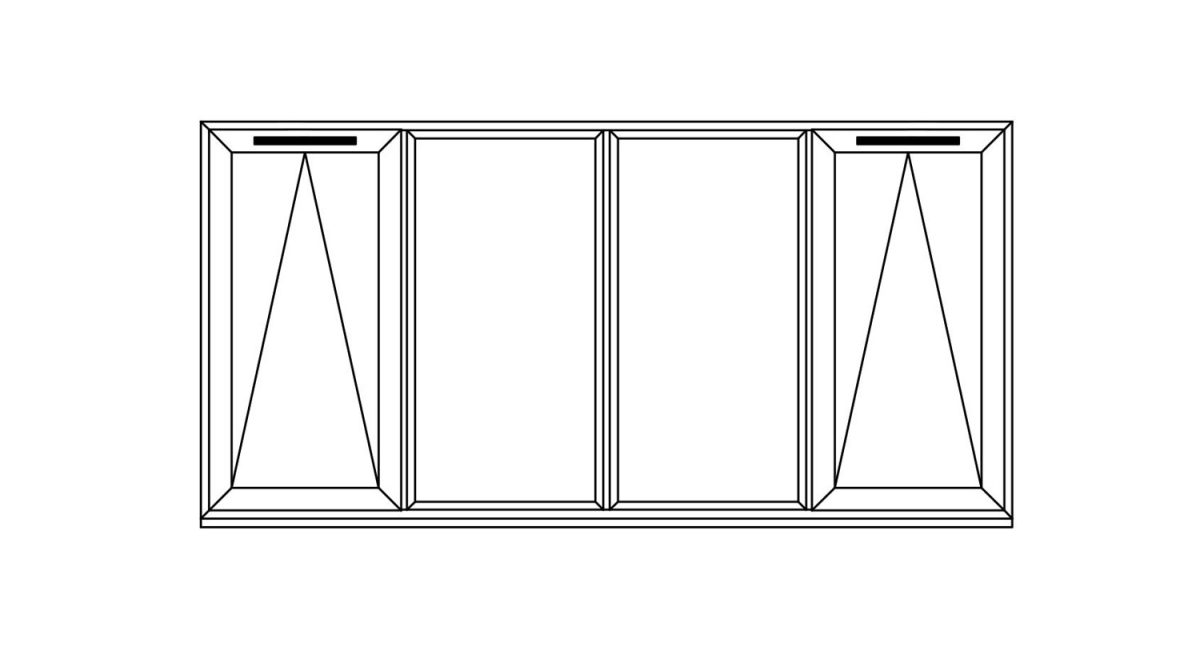

Multi Light Top Hung

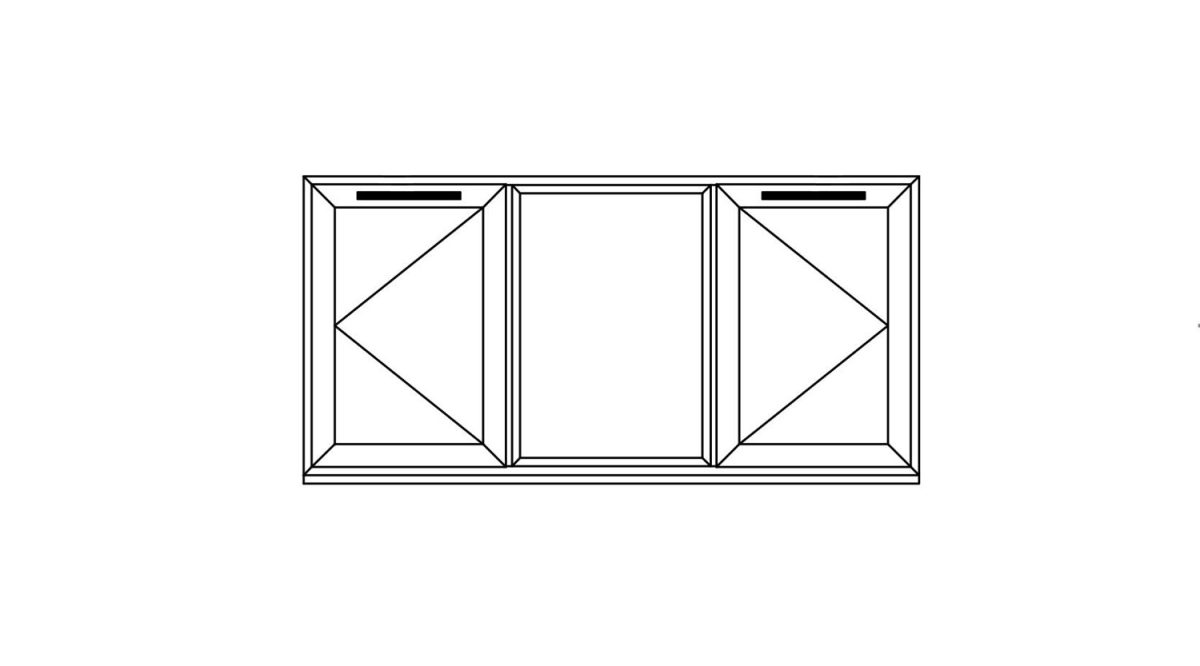

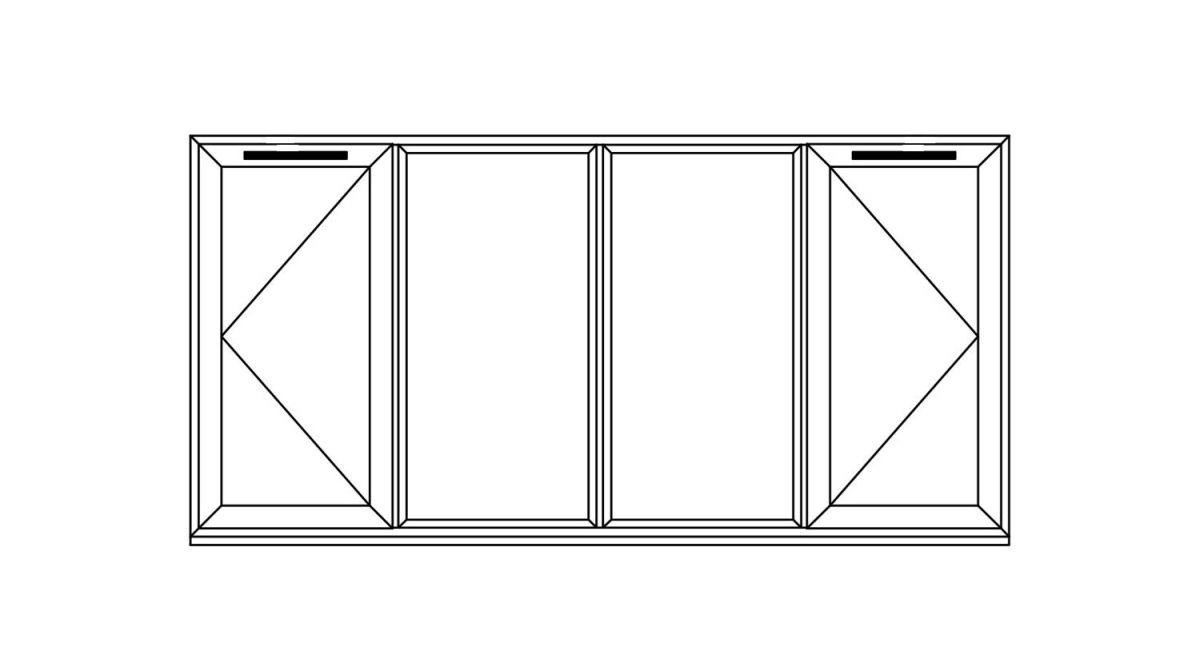

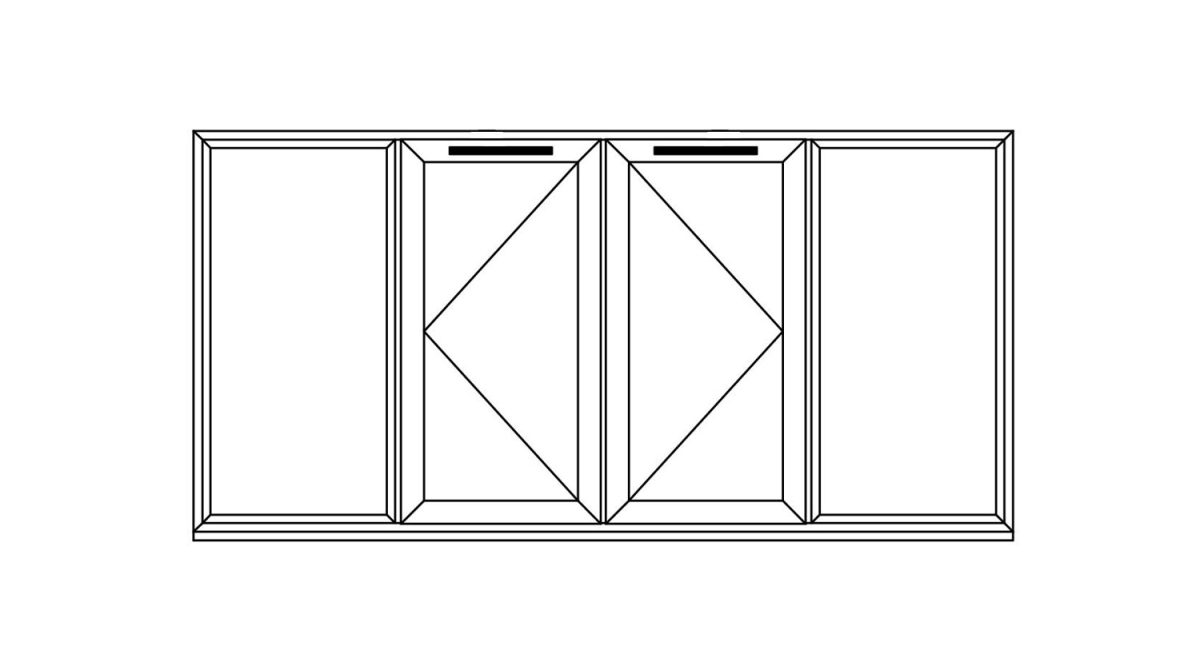

Multi Light Side Hung
Multi Light Top Hung
Side Hung, Fixed

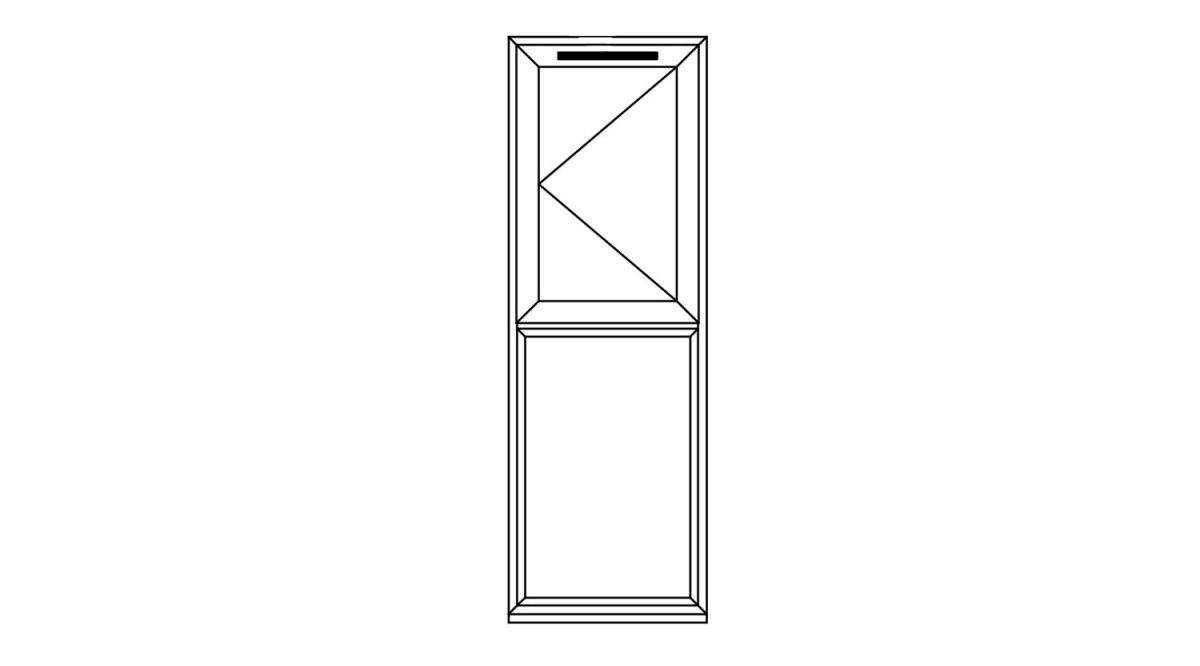

Side Hing over Fixed Light
Double Top Hung, Fixed
Fixed, Top hung, Fixed
PREVIOUS
NEXT
Origin Colour Options
The Origin OW-80 gable window is available in over 150 brilliant colours, allowing you to create a fully bespoke design to match the style of the property. Most of these colours can then be specified to have a gloss, matt or satin finish.
the highest grade power coating is applied to the frames for a flawless finish. With a durable yet smooth surface, it is highly resilient to the elements.
Find the option that suits your needs, or speak with a team member about our popular colours in Devon and Exeter.
150 RAL Colours
7016M - Anthracite Grey
7015M - Slate Grey
9010G - Hipca White
7021M - Black Grey
9005M - Jet Black
9010M - Hipca White
9007M - Dark Sliver Metallic
9910G/7016M - Dual Colour
