Flush Casement Windows Exeter & Devon

Our flush casement windows are the perfect choice for contemporary new builds or refurbishment projects. They offer a flawless flush appearance, clean lines and slim sightlines that guarantee unmistakably modern aesthetics. Request a quote for flush casement windows or contact the team for more information.

Learn More Request a Quote

Our Affiliations

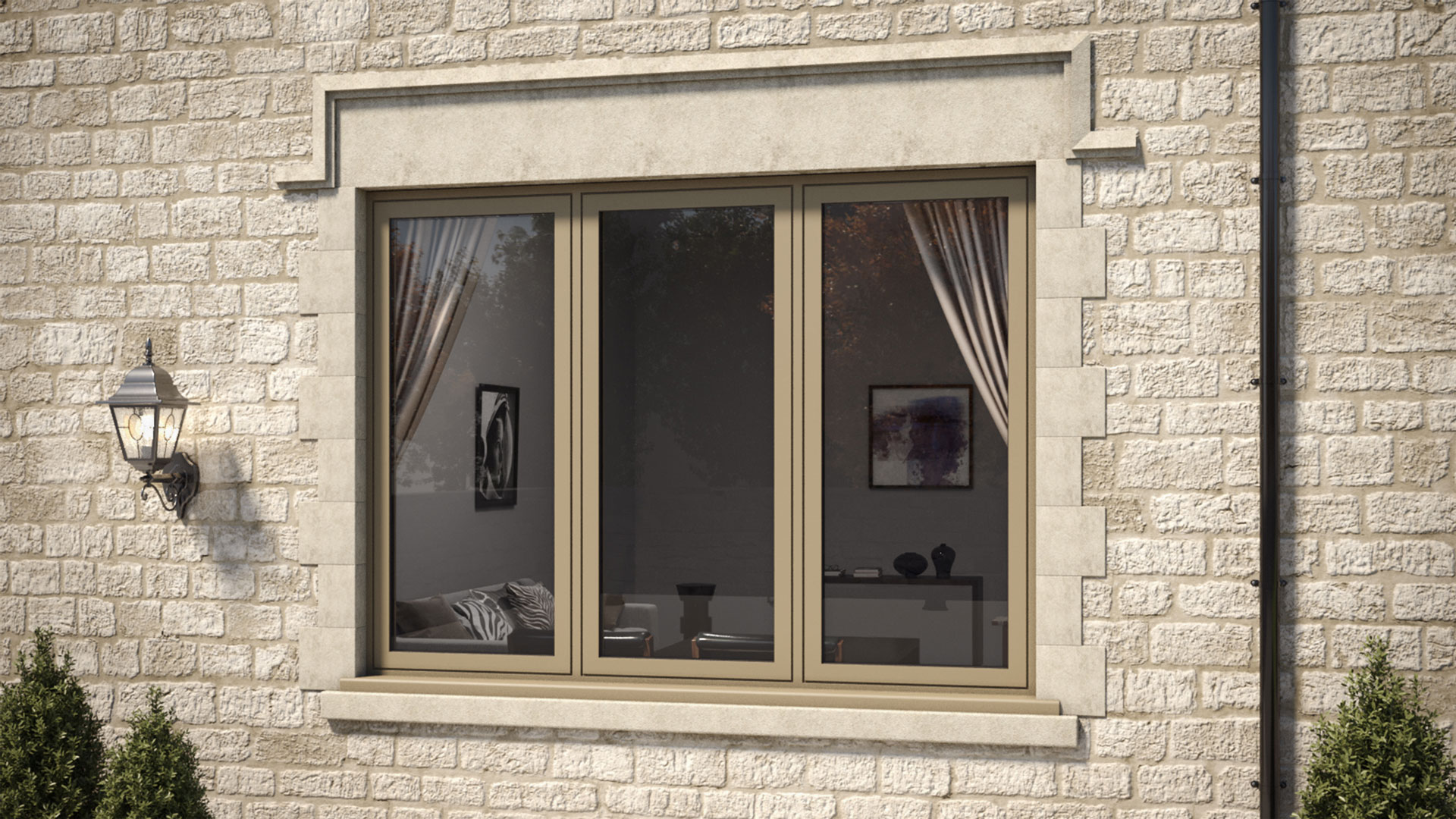

Flush Casement Windows Devon

The design of our flush casement windows is suitable for a variety of modern architectural styles.

Suitable for properties in conservation areas or heritage properties looking to replace older wooden frames.

This maintains the visual appeal while lowering the household window energy rating.

Contemporary homes may choose flush designs to match modern exteriors. With signature colours, they seamlessly blend into the existing style.

Locally Fabricated Casement Windows

Our casement windows are fabricated within our two exceptional facilities, using the latest and most innovative technology.

This allows us to maintain and improve our standards every time.

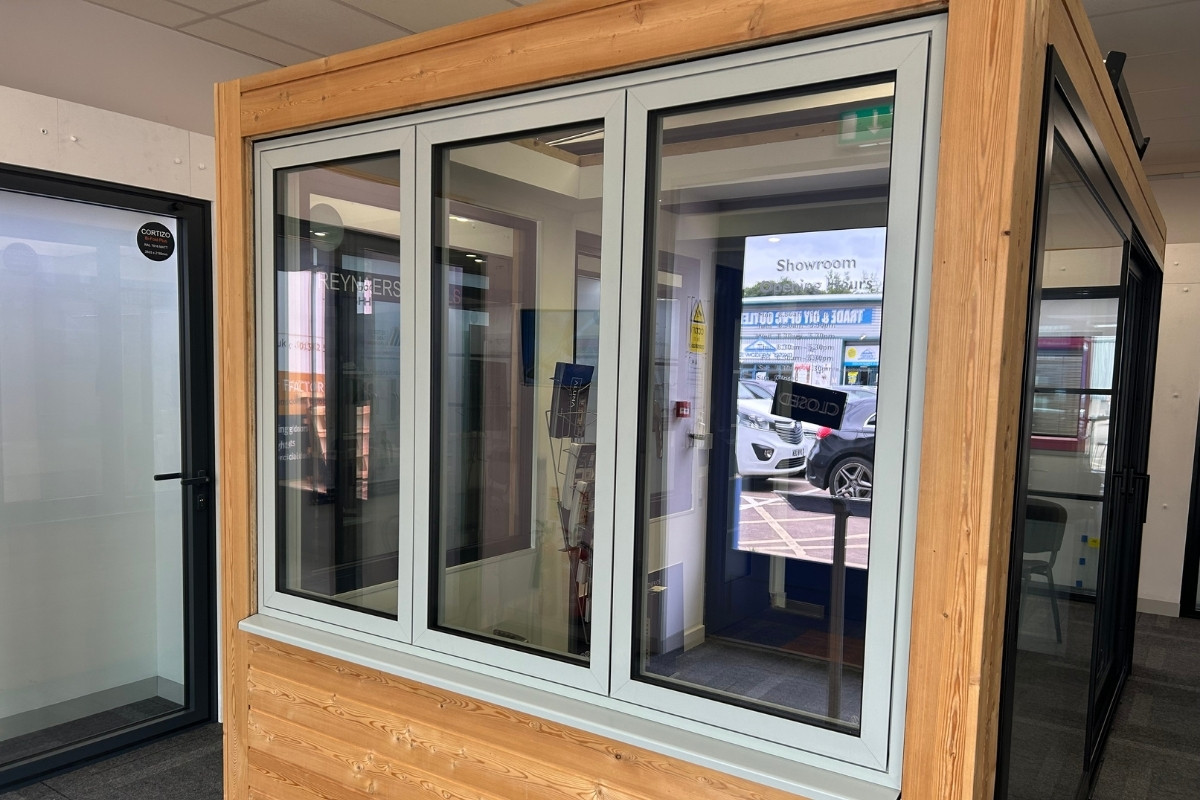

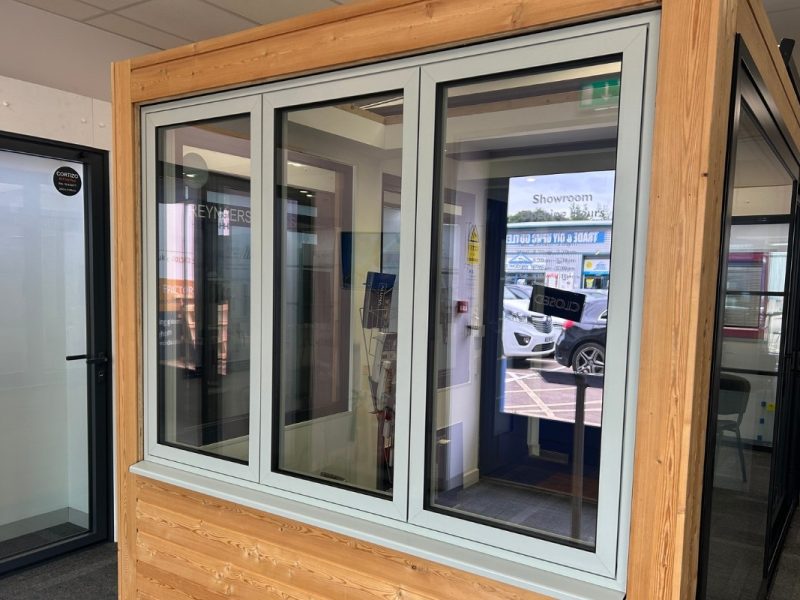

Visit our Exeter showroom to see our flush casement windows in person, and see where they are made in our onsite factory.

Technical Specifications

Aluk 58BW Flush

Cortizo Casement TB

Aluk 58BW Flush

The AluK 58BW is available as a flush casement window, which delivers clean lines and enhanced thermal efficiency.

It offers the chance to create a modern flush finish with slim sightlines that will suit any property.

Optio 58BW Flush AW620 Sash U44002 Frame cut through

Cortizo Casement TB

Discover the Cortizo Casement TB. A thermally broken flush casement window designed for outward openings. It is available in both side-hung and top-hung configurations.

Delivering impressive thermal efficiency that achieves u-Values as low as 1.0W/m²K and PAS 24 certification, it provides a high-performance solution suitable for a range of property styles.

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Key Features

Highlights

Part L compliant

Minimal sightlines

Advanced weather performance

Flexible design choice

The perfect choice for contemporary new-builds and refurbishment projects

Manufactured onsite in Exeter

Options

Glazing

24mm – 40mm

Frame Depth

58mm – 70mm

Aesthetics

Flush, Bay, Chamfered, Heritage, Ovolo or Contemporary

Glazing Bars

Yes

Colour/Finish Options

Single/Dual Colour, Textured Finish, Anodised Finish

Trickle Vents

Yes

Technical Specifications

If you have any questions about our flush casement windows for your next project, speak with our team. We will be happy to help.

Specifications

Performance

Value

U-value (Double Glazing)

1.4 W/m²K

U-value (Triple Glazing)

1.2 W/m²K

Window Energy Rating (WER)

B – C

Air Permeability

Class 4 (600 Pa)

Water Tightness

Class 9a (600 Pa)

Wind Resistance

Class E2400 (2400 Pa)

Acoustic Performance

Rw (C; Ctr) 42 (-1;-5) dB

Security

PAS 24:2016

Q-Mark Certified

Yes

Sightline (Frame to Vent)

98mm

Sightline (Vent to Mullion to Vent)

113mm

Sightline (Dummy Sash)

158mm

Sightline (Fixed Light)

53mm

Downloads

Name

Type

Size

AluK 58BW Flush HI Data Sheet

pdf

2.57 MB

Download

AluK 58BW Flush Data Sheet

pdf

734.67 KB

Download

view all downloads

Size and Weight Limits

Specifications

Configuration

Limit

Top Hung - Max Size

1750w x 2500h mm

Top Hung - Min Size

300w x 350h mm

Top Hung - Max Weight

180kg

Side Hung - Max Size

1300w x 1750h mm

Side Hung - Min Size

300w x 300h mm

Side Hung - Max Weight

55kg

Fixed Light - Max Weight

250kg

Downloads

Name

Type

Size

AluK 58BW Flush HI Data Sheet

pdf

2.57 MB

Download

AluK 58BW Flush Data Sheet

pdf

734.67 KB

Download

view all downloads

Configurations

The sharp shadow line found on the AluK 58BW flush casement window is a result of the open-out sashes. Available in the following configurations: French casement, top-hung, side-hung, and fixed-lights. The flush shadow-line can also be achieved using dummy sashes.

You can also achieve the flush aesthetic in bay window styles, using the AluK Bay Pole for bay windows of any angle, and the Corner Posts for 90° angle windows.

Left: Side Hung, Right: Fixed

Left: Top Hung, Right: Fixed

Side Hung

Top Hung

Top Hung, Fixed

Side Hung, Fixed

Fixed Window

Fixed, Top Hung, Fixed

Double Top Hung, Fixed

Left & Right: Top Hung

French Casement

AluK 58BW - Left & Right: Top Hung, Middle: Fixed

Left & Right: Side Hung, Middle: Fixed

Left & Right: Top Hung, Middle: Fixed

Left & Right: Side Hung, Middle: Top Hung, Bottom Middle: Fixed

Left, Right & Middle: Top Hung, Bottom Middle: Fixed

AluK Colour Options

The AluK 58BW flush casement window is available in the full RAL colour range, either single or dual colour, for a different colour internally compared to externally.

RAL Colours

RAL 7032 - Pebble Grey

RAL 7031 - Blue Grey

RAL 7016 - Anthracite Grey

RAL 7015 - Slate Grey

RAL 7012 - Basalt Grey

RAL 5003 - Ocean Blue

AluK Hardware Options

Get in touch with our team to discuss our range of hardware options.

Mila Handle Grey

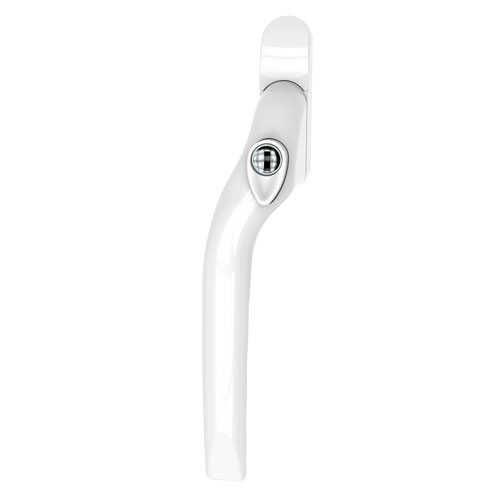

Mila Handle White

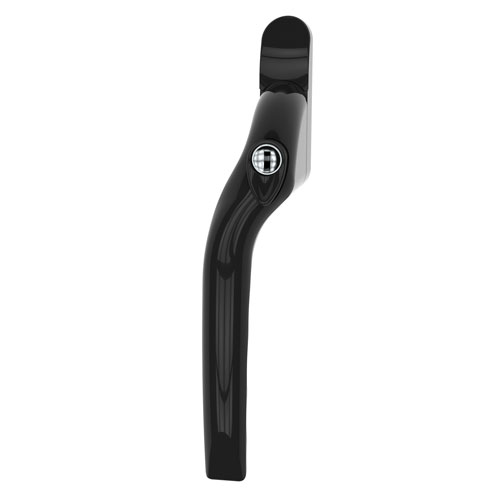

Mila Handle Black

Mila Handle Chrome

Key Features

Tech Specs

Size & Weight Limits

Configurations

Key Features

Features

U-Values from from 1.0 W/ m²K

PAS 24 Certified

70mm sightlines

Thermal break zone of 32mm

Options

Value

Glazing

23-44mm

Profile Thickness

1.6mm

Polyamide strip length

32mm

Tech Specs

Specifications

Tech Specs

Value

U-Value

From 0.9 (W/m2K)

Air Permeability

Class 4

Water Tightness

Class E1200

Wind Resistance

CE 2400

Security

PAS24

Maximum accoustic insulation

Rw = 45 dB

Downloads

Name

Type

Size

flush casement windows

jpeg

136.47 KB

Download

Cortizo Casement TB Brochure

pdf

1.33 MB

Download

view all downloads

Size & Weight Limits

Specifications

Options

Value

Slim sash / Top hung

1,200mm (w) x 1,300mm (h)

Slim sash / Side hung

950mm (w) x 1,300mm (h)

Heavy duty sash / Side hung

750mm (w) x 1,750mm (h)

Heavy duty sash / Top hung

1,800mm (w) x 1,800mm (h)

Maximum slim sash weight

Side hung 35kg / Top hung 50kg

Maximum heavy duty sash weight

Side hung 4 kg / Top hung 100kg

Downloads

Name

Type

Size

Cortizo Casement TB Data Sheet

pdf

197.35 KB

Download

Cortizo Casement TB Brochure

pdf

1.33 MB

Download

view all downloads

Configurations

The Cortizo Casement TB Window is available in side-hung or top-hung outward-opening configurations. It can be finished in several dual colour systems, colour powder coating, wood effect powder coating, anti-bacterial powder coating, or an anodised finish.
