Featured Project

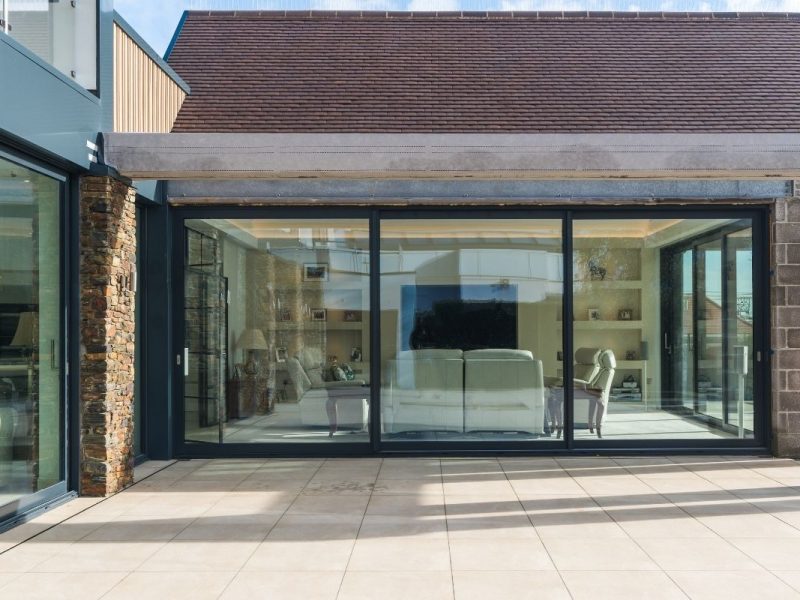

Reynaers Lift and Slide doors and aluminium windows in Torquay coastal property
Exeter Trade Aluminium recently supplied this stunning collection of Reynaers CP 130 Lift and Slide door systems. Installed by one … Continued

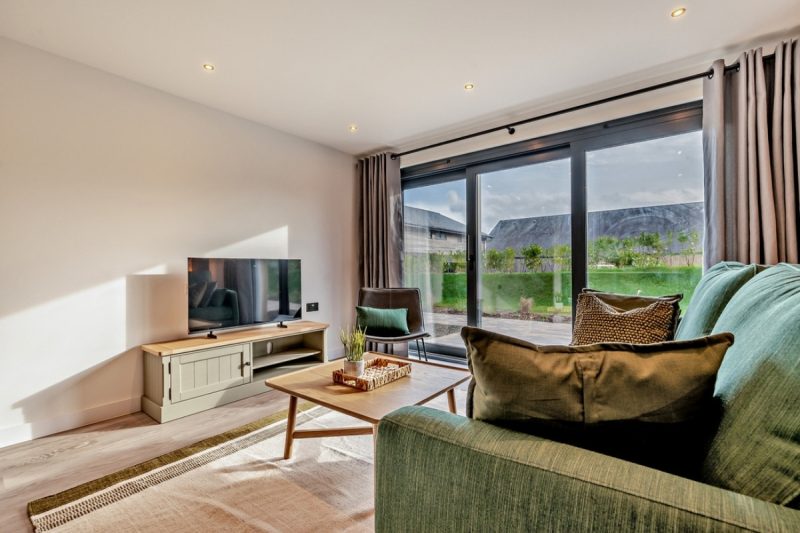

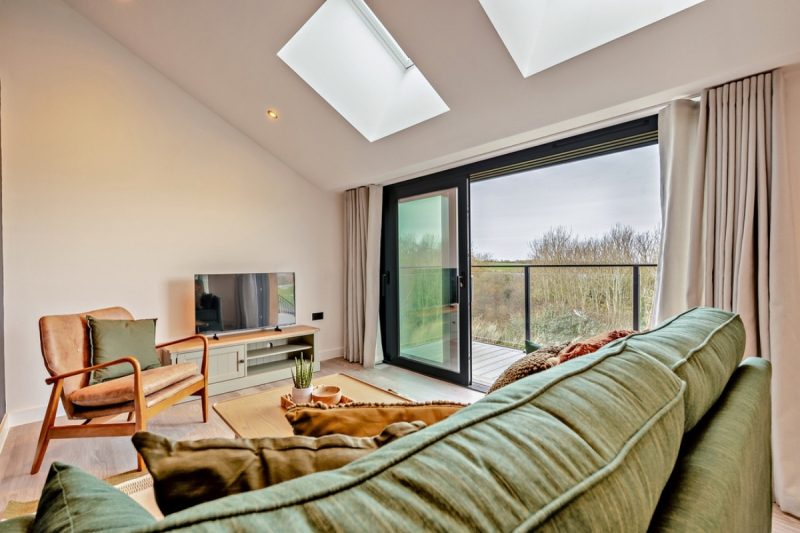

Aluminium Lift and Slide Doors Exeter & Devon
Our aluminium lift and slide sliding doors combine uninterrupted views, a flexible design and fantastic aesthetics. Plus boast an impressive specification all while remaining easy to install, and easy to operate.
Our Affiliations

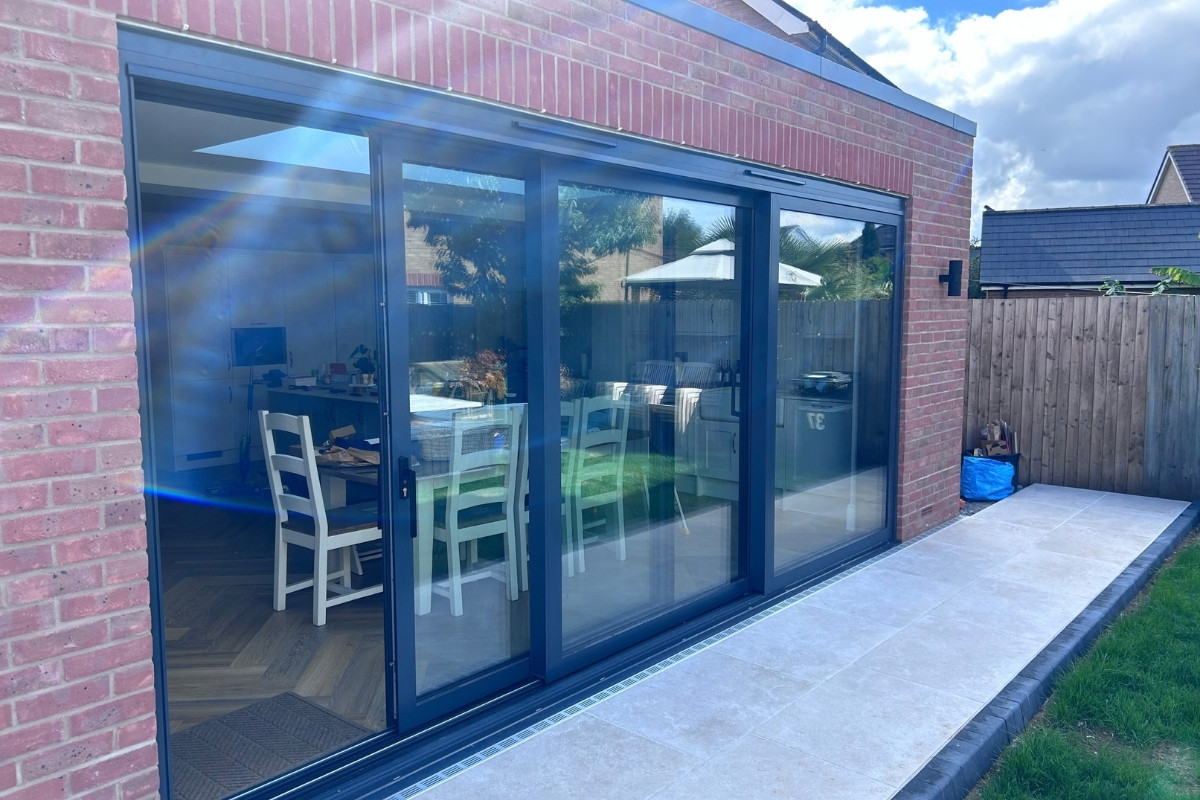

Lift and Slide Patio Doors Devon
Opened or closed, sliding doors provide minimal interruptions, blurring boundaries between inside and out. Whilst adding style and flexibility to any space.
Cleverly designed to effortlessly open large expanses of glass. Lift and slide doors operate in much the same way as sliding doors. However, rather than resting on tracks and rollers, the doors are lifted slightly, by turning the handle 180 degrees, for a smooth and silky operation. Making even the biggest aluminium patio doors easy to open or close.
Perfect for Coastal Locations
Enjoy spectacular views with contemporary aluminium lift & slide doors even in the most exposed locations.
Select our pre-anodised finish, and stainless steel handles to protect the doors against the harsh salt air for coastal properties.
Effectively maximize the view whilst creating a stunning feature using the pocket door, open corner and glass corner configurations. All achievable with our aluminium lift and slide doors.

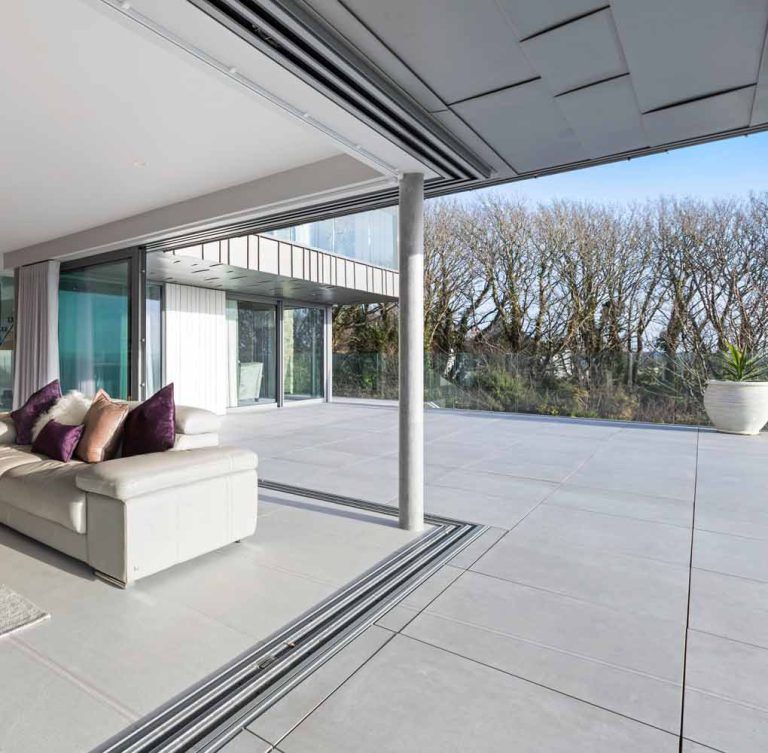

Pocket door and open corner configuration
A number of our aluminium lift and slide doors can be configured in pocket door and open corner configurations if you would like to create a truly exceptional finish.
An open-corner sliding door allows you to effortlessly connect your indoor and outdoor spaces.
Technical Specifications
Reynaers CP 130 LS
Reynaers MasterPatio
Aluna Slider
Reynaers CP 130 LS
The perfect solution for both traditional and contemporary homes, new-builds or renovations. With advanced engineering, this patio sliding door system can be installed in an open corner configuration, or within a cavity wall pocket. This revolutionary system creates unparalleled views as an architectural centrepiece. Equally, it offers great thermal performance and weather ratings. A good value, feature rich sliding door option.

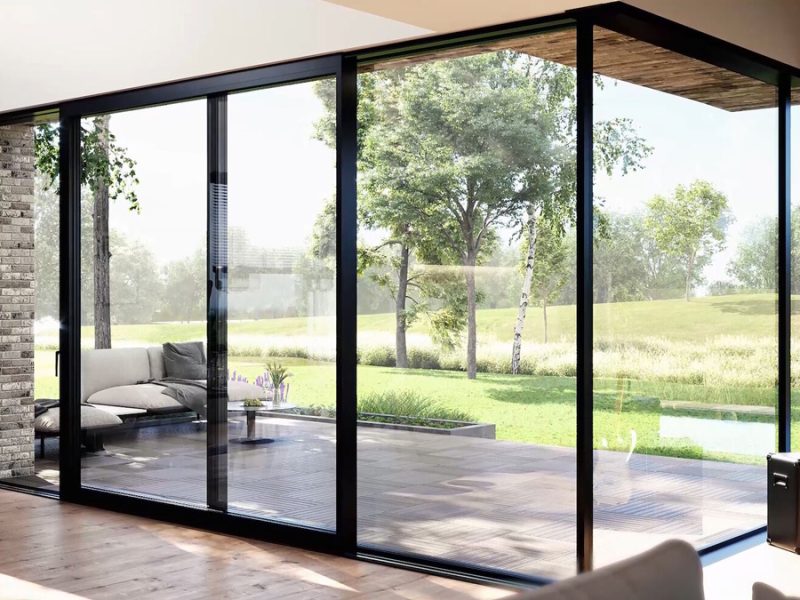

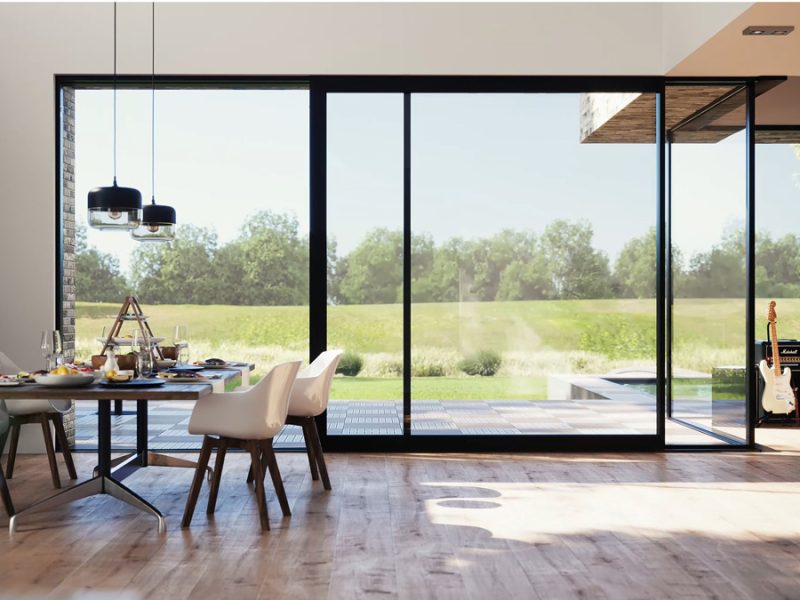

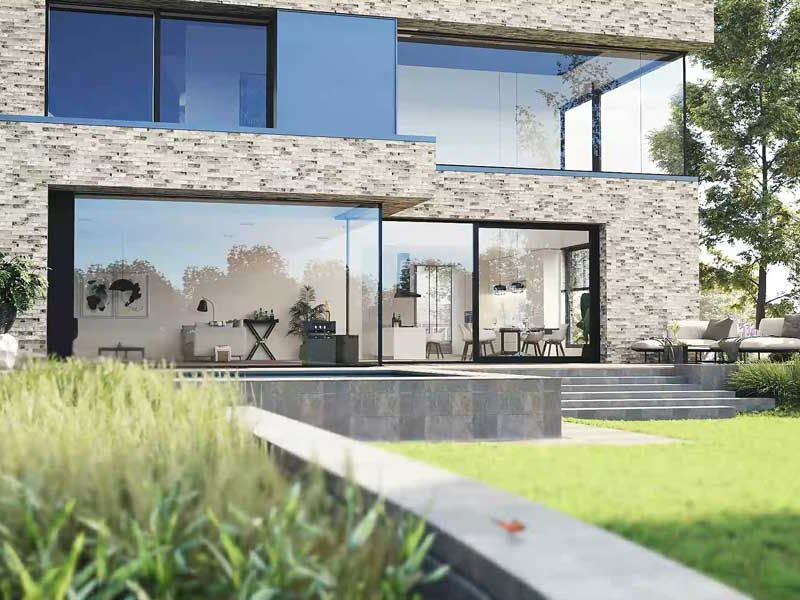

Reynaers MasterPatio
The MasterPatio by Reynaers is a floor-to-ceiling sliding door system, which provides superior thermal insulation, improved comfort and a clean design. Plus industry-leading sizes, with a maximum height of 3.7m, for completely unobstructed views.
The lift and slide system offers a minimalist design, and concealed locks which will suit both traditional and contemporary properties. The sliding doors are also suitable for all building from single dwellings to high-rise apartments as the system has the ability to resist wind loads of up to 600 pascals (Pa) in pressure.

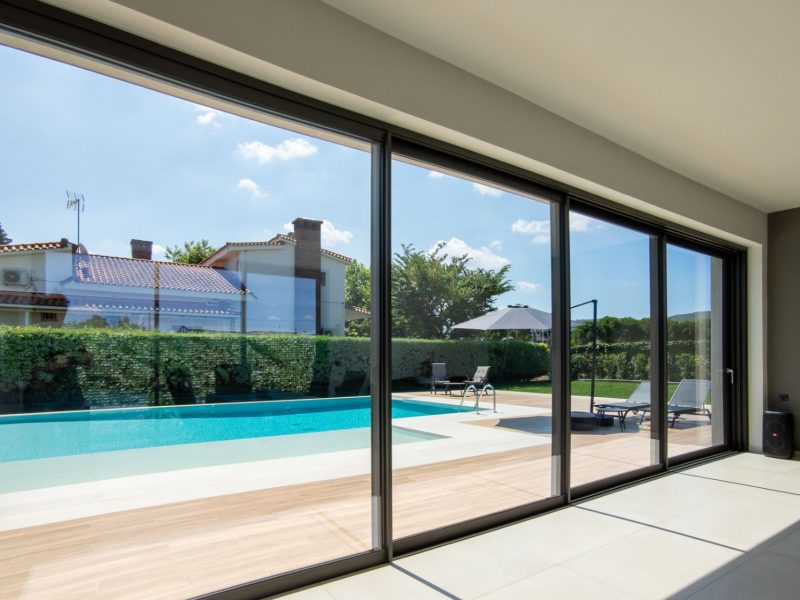

Aluna Slider
The ALUNA Slider makes for a fantastic addition to any style of property. It adds performance to your home with excellent thermal efficiency and style with a super-slim profile starting from 25mm.
Key Features
Tech Specs
Size Limits
Configurations
Colours
Hardware
Key Features
Highlights
Part L compliant
Lift & slide mechanism for ease of opening
Multi track options for various configurations
Open corner and pocket door configuration options
Open into a ventilation position
Stainless steel rollers improve longevity and performance
Lowered threshold options for Document M compliance
No grooves to pick up debris and dust
Manufactured onsite
Options
Track Options
Mono rail, duo rail or 3- rail
Open Corner Configuration
Yes
Pocket Corner Configuration
Yes
Marine Grade
Yes
Threshold
Low or standard
Glazing
Double or triple
Technical Specifications
Specifications
Performance
Value
U-value (Double Glazing)
1.5 W/m2K
U-value (Triple Glazing)
1.1 W/m2K
Air Tightness
Class 4 (600 Pa)
Water Tightness
Class 8a (450 Pa)
Wind Load
Class C3 (1200 Pa)
Acoustic Performance
Rw (C; Ctr) = 35 (-2;-6) dB / 39 (-1;-3) dB
Burglar Resistance
RC2/WK2
Thermal Break
Fibreglass Reinforced Polyamide Strips
Downloads
Name
Type
Size
Size Limits
Options
Properties
Limit
Element - Max Height
2784 mm
Element - Min Height
812 mm
Vent - Max Size
2700w x 2700h mm
Vent - Min Size
700w x 746h mm
Vent - Max Weight
300 kg
Configurations
There are multiple configuration options available across monorail, 2-rail and 3-rail tracks. Plus pocket door and open corner configurations. The CP 130 LS sliding door can be configure to suit your projects requirements.

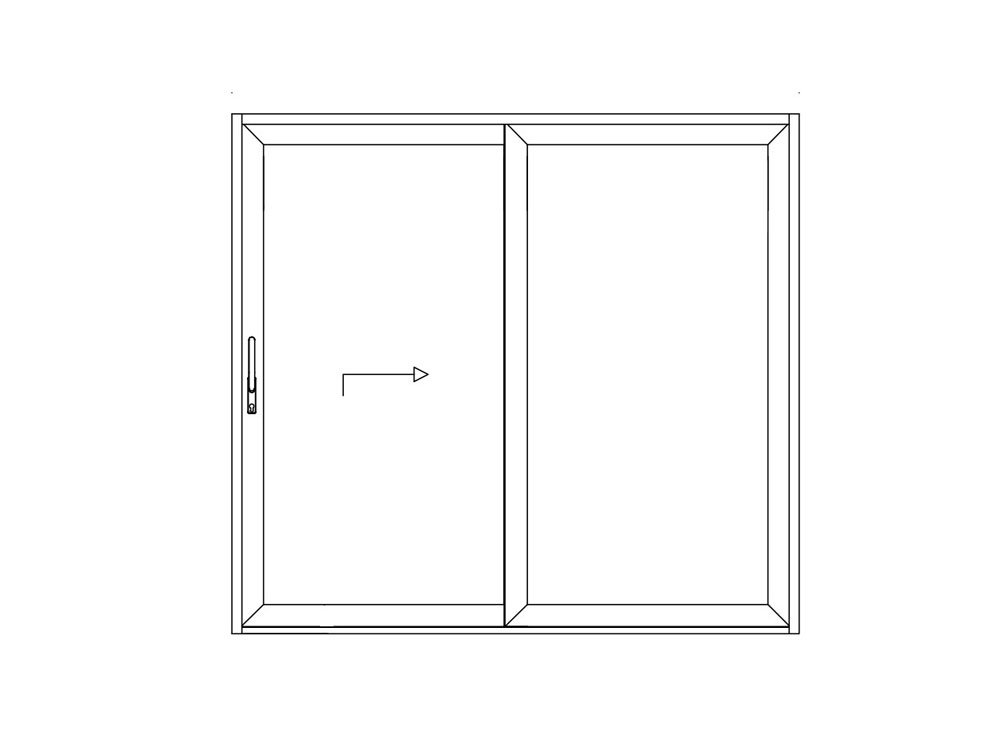

Reynaers-CP130LS-XQ

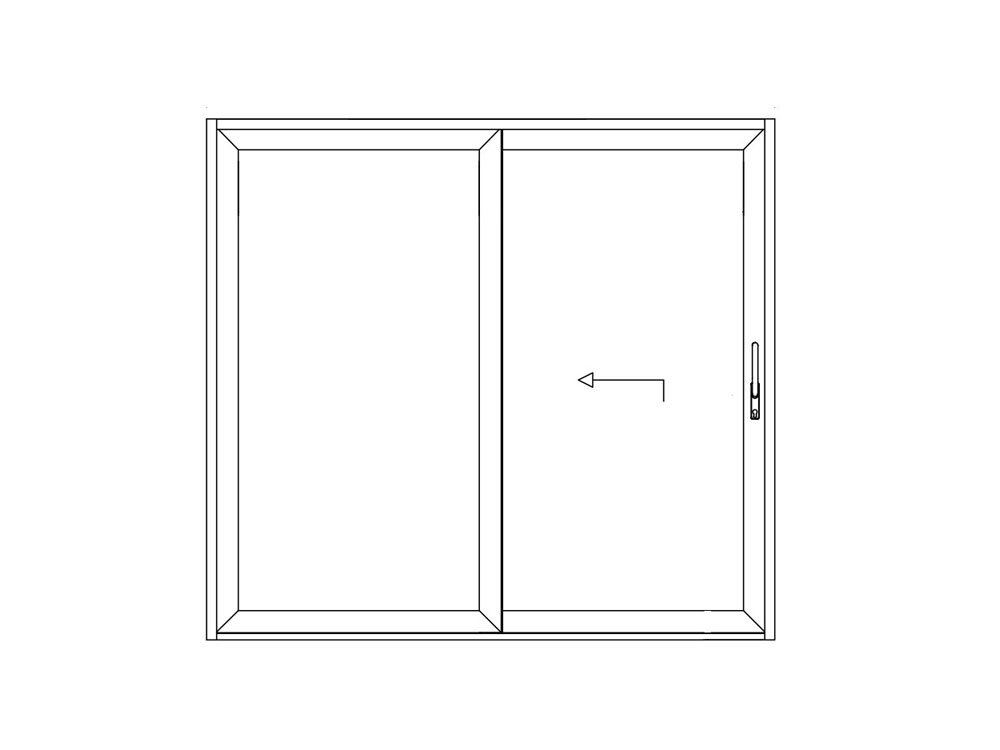

Reynaers-CP130LS-QX

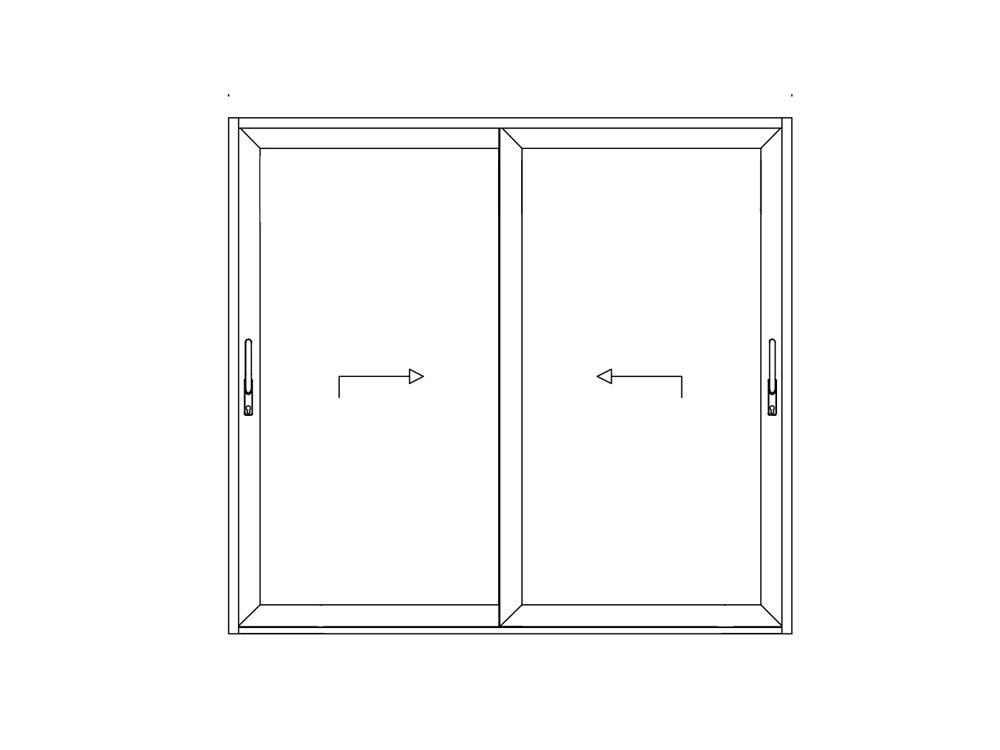

Reynaers-CP130LS-XX-L

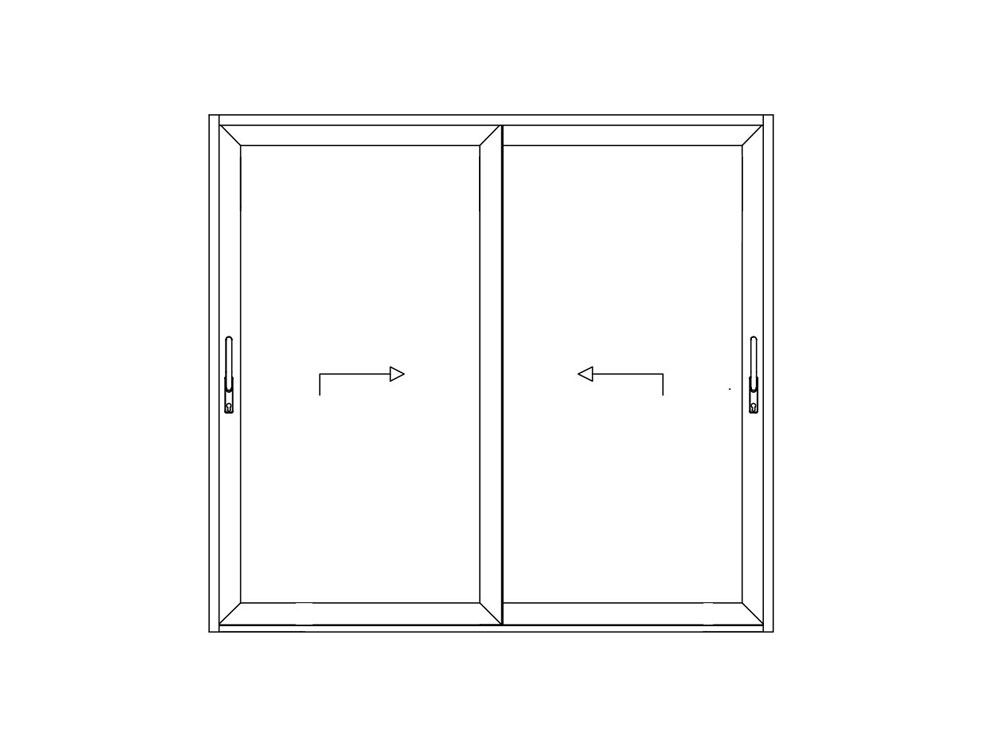

Reynaers-CP130LS-XX-R

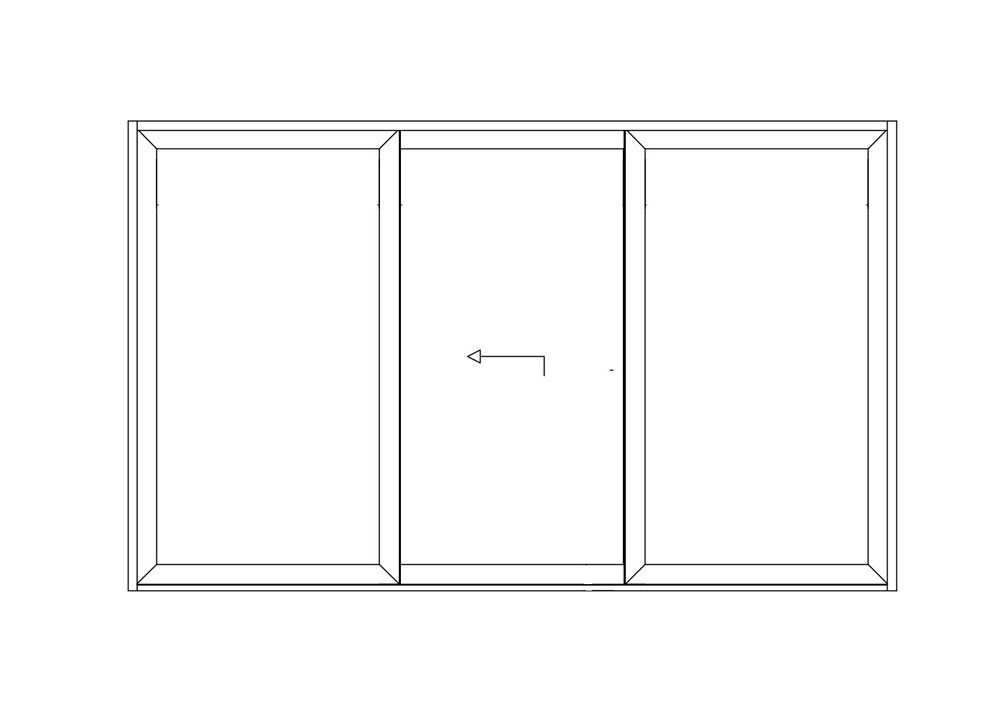

Reynaers-CP130LS-QXQ-L

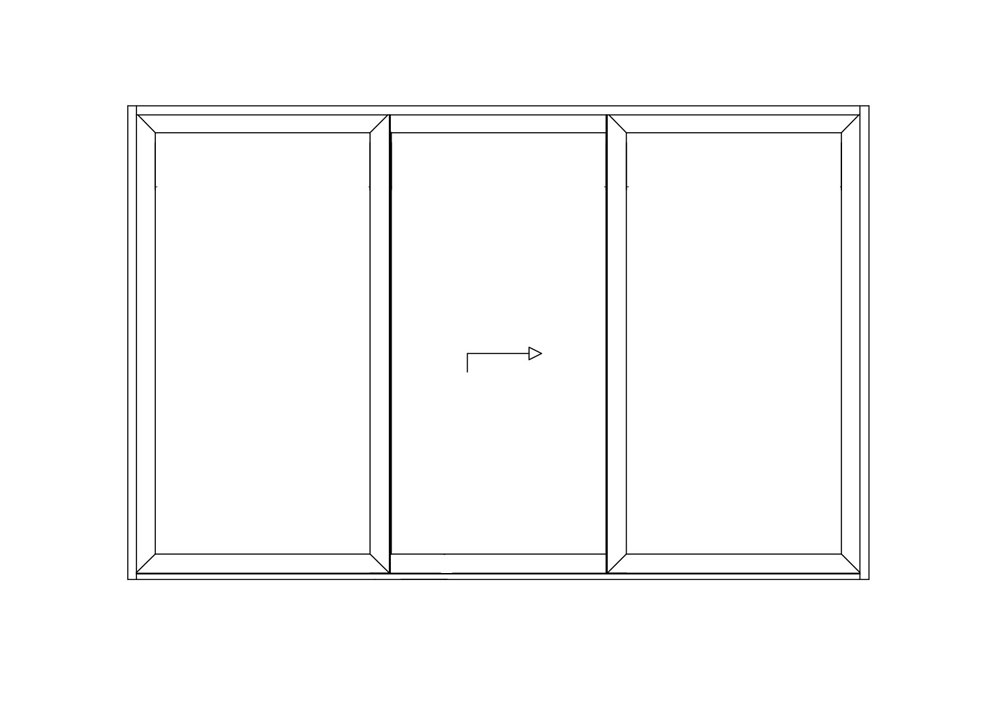

Reynaers-CP130LS-QXQ-R

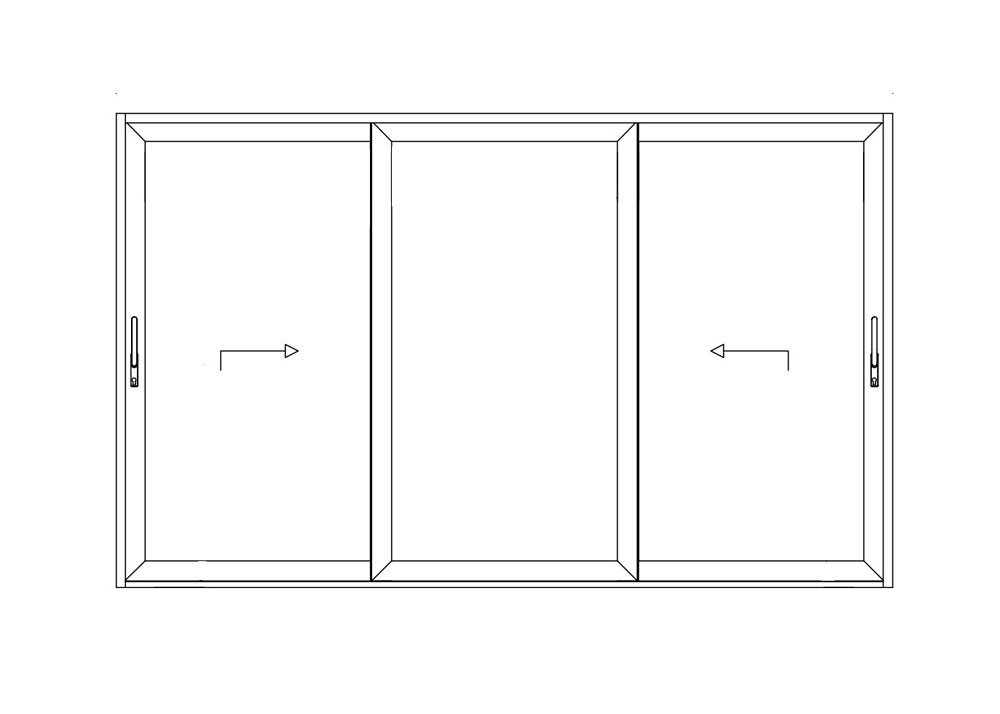

Reynaers-CP130LS-XQX

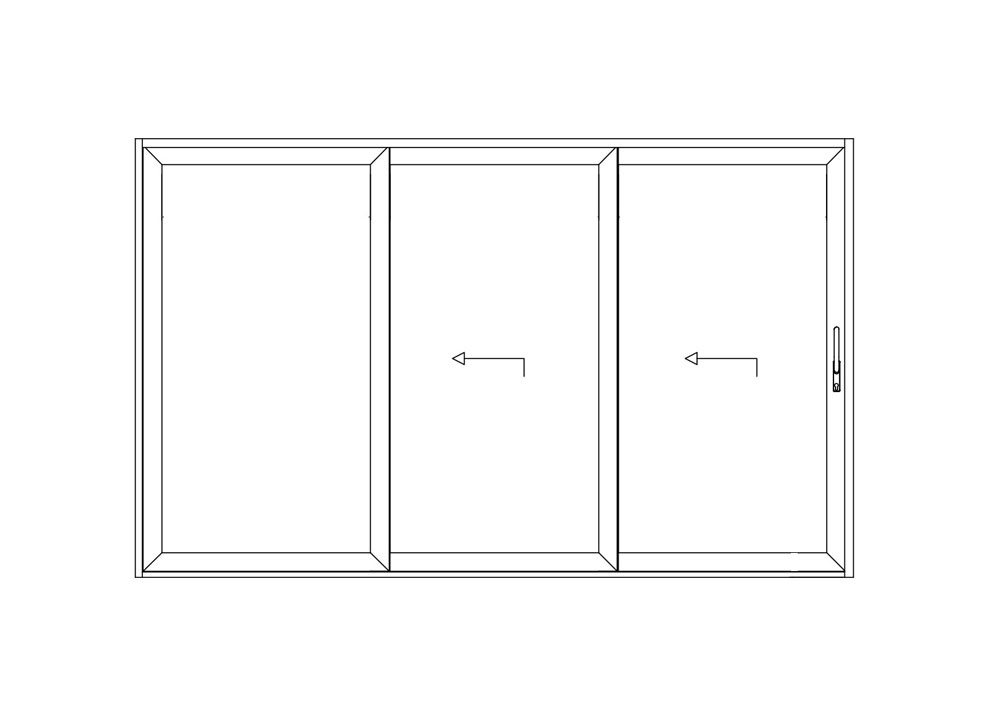

Reynaers-CP130LS-QXX

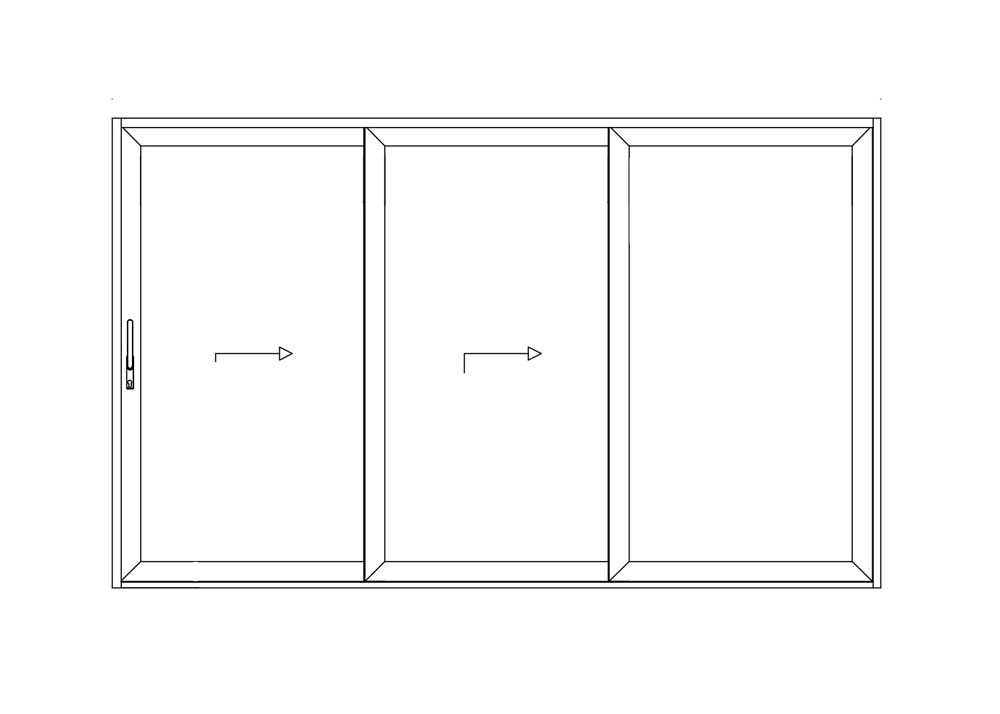

Reynaers-CP130LS-XXQ

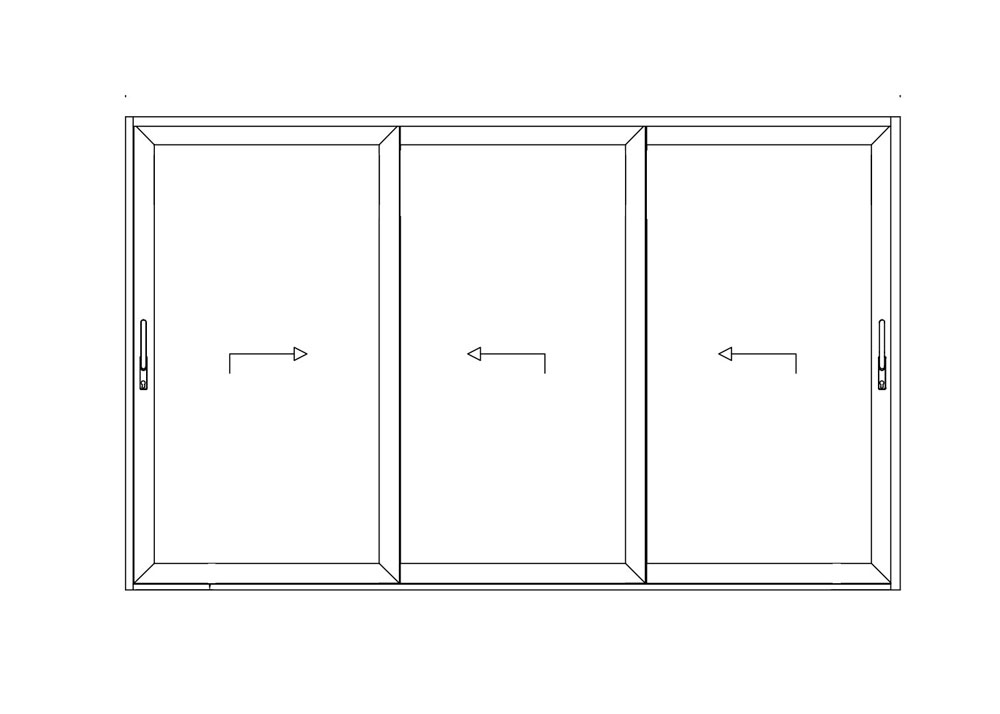

Reynaers-CP130LS-XXX-RLL

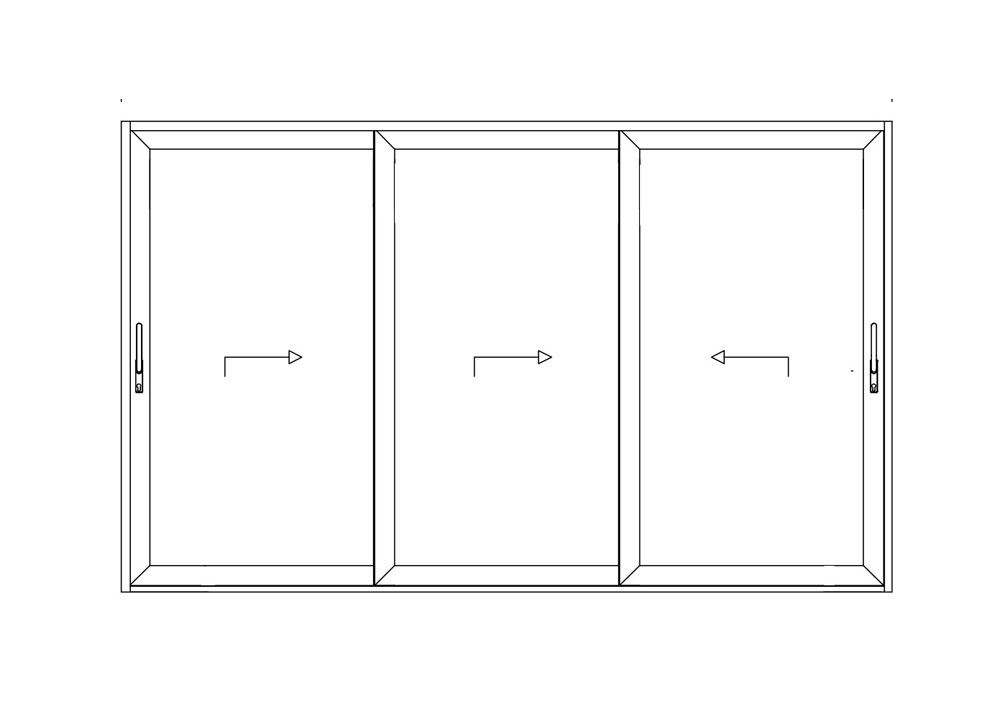

Reynaers-CP130LS-XXX-RRL

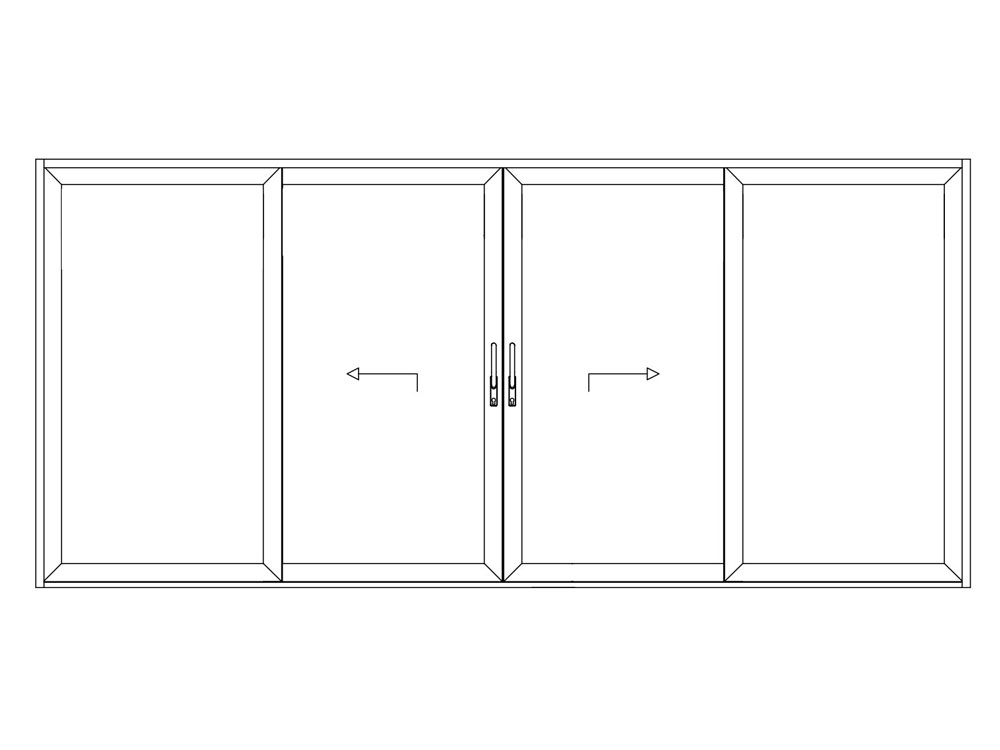

Reynaers---CP130LS-QXXQ

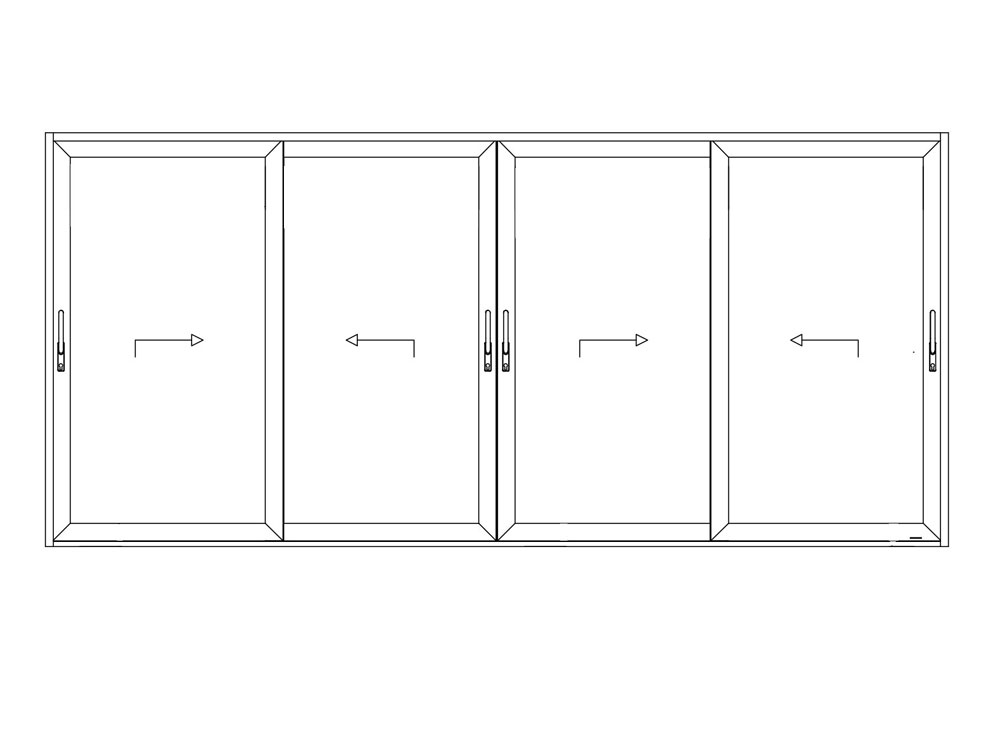

Reynaers-CP130LS-XXXX

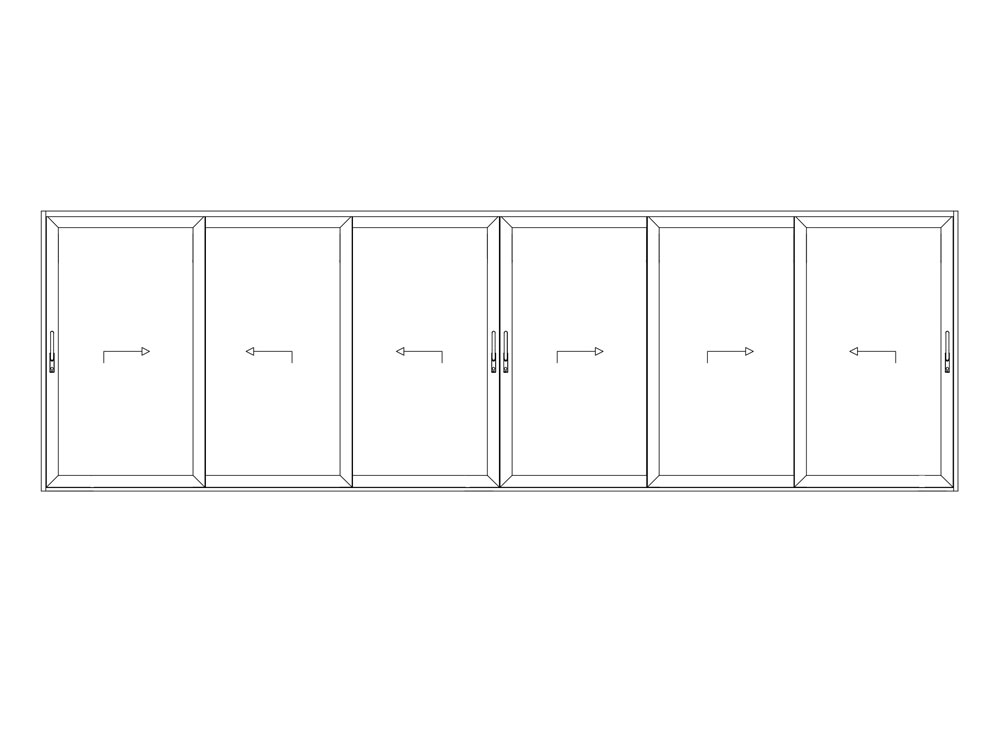

Reynaers-CP-130-LS-XXXXXX

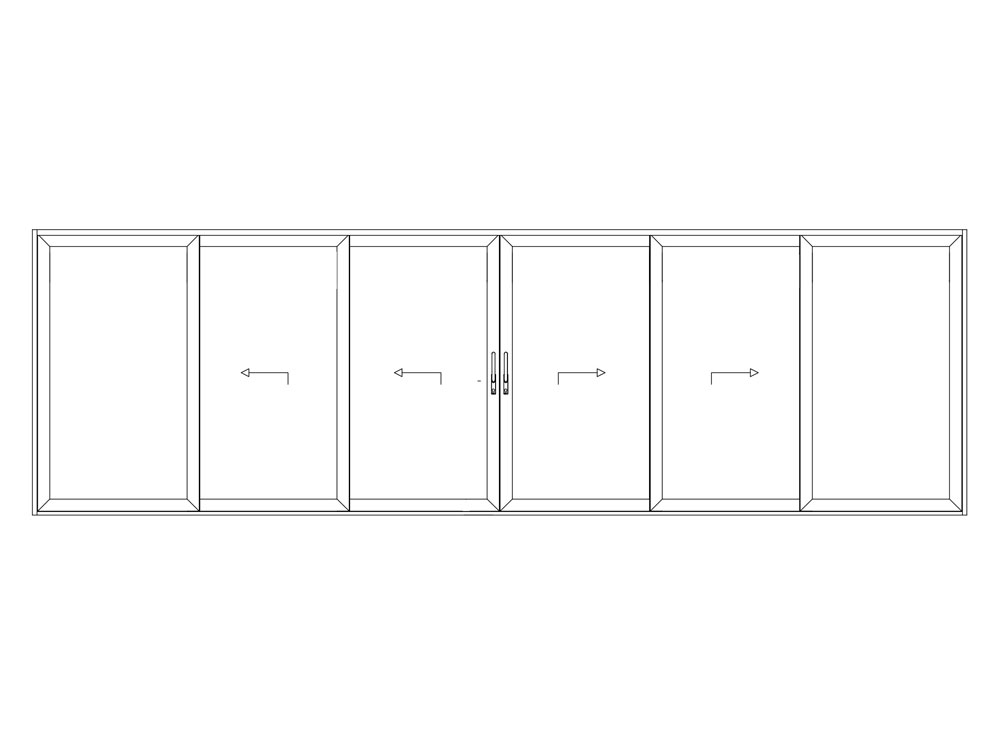

Reynaers-CP130LS-QXXXXQ

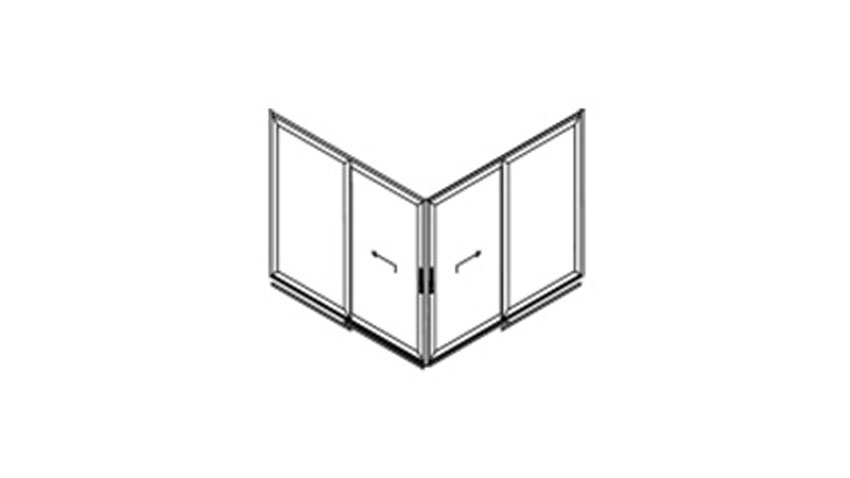

90 Degree Corner
PREVIOUS
NEXT
Reynaers Colour Options
The Reynaers CP 130 LS lift and slide door is available in a large range of RAL colours, in a choice of matt or gloss finish, metallic colours, textured metallic Coatex finishes, wood-grain finishes, and pre-anodised (recommended for marine locations) or anodised coating. Allowing you to match the colour of the windows, or create a contrast.
Select dual colour, if you are looking to have a different colour on the inside of the sliding doors compared to outside.
Our Exeter team can help you choose the right colour for your project, whether a popular colour, or a unique bespoke RAL colour.
RAL Colours
RAL 7032 - Pebble Grey
RAL 7031 - Blue Grey
7016M - Anthracite Grey
7015M - Slate Grey
RAL 7012 - Basalt Grey
RAL 5003 - Ocean Blue
Reynaers Hardware Options
Enhance the look, performance and durability of your sliding doors with our hardware options.

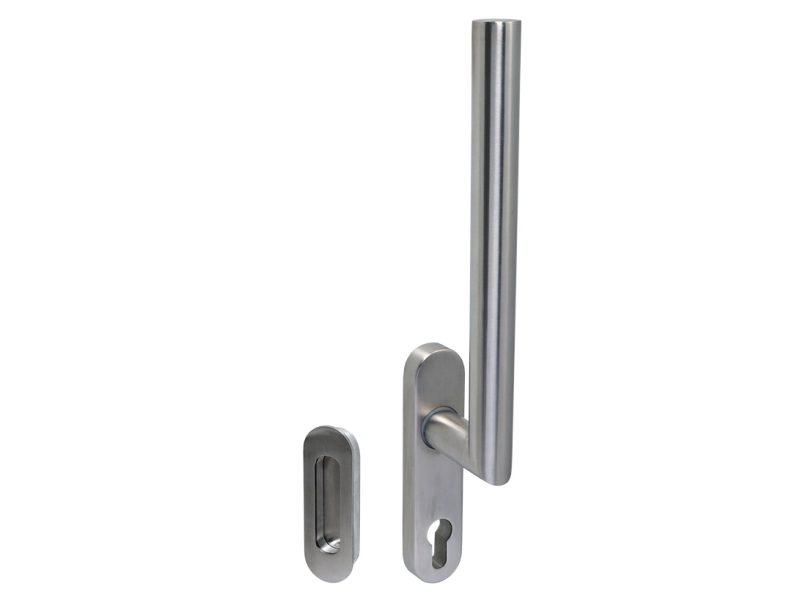

BLU 316 Marine Grade Stainless Steel Pull and Handle

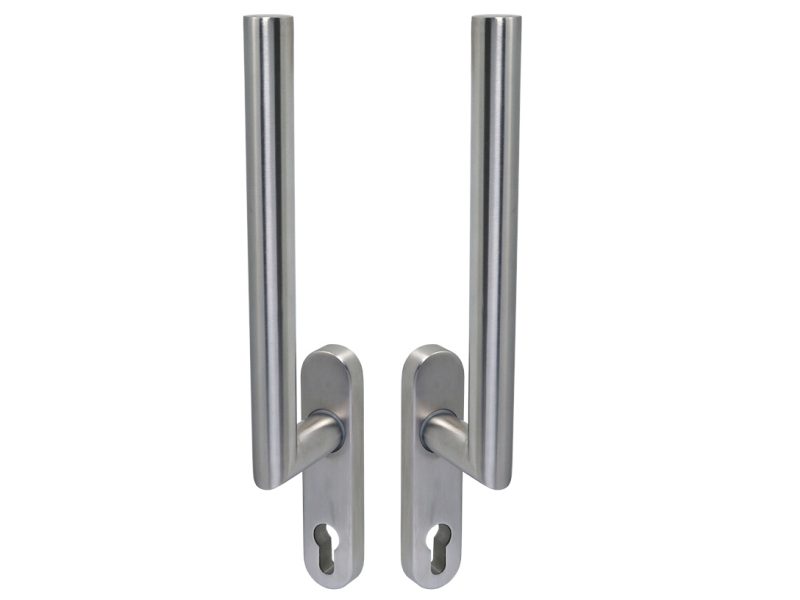

BLU 316 Marine Grade Stainless Steel Handle
Key Features
Tech Specs
Size Limits
Key Features
Highlights
Part L compliant
Lift & slide mechanism for ease of opening
Monorail, 2-rail, or 3-rail configuration options
Suitable for large apertures with industry leading maximum sizes
High thermal performance suitable for low energy houses
Slim sightlines
Options
Options
Value
Track Options
Monorail, 2-rail or 3-rail
Marine Grade
Yes
Threshold
Low or standard
Smart Home Compatable
Yes
Concealed Drainage
Yes
Glass to Glass Corner
Yes
Technical Specifications
Specifications
Performance
Value
U-value
0.82 W/m2K
Air Tightness
Class 4 (600Pa)
Water Tightness
Class 9A (600Pa)
Wind Load
Class C5 (2000Pa)
Acoustic Performance
44(-1;-4) dB
Burglar Resistance
RC2, WK2
Size Limits
Options
Properties
Limit
Element - Max Size
3000w x 3706h mm
Element - Min Size
1393w x 1906h mm
Vent - Max Size
3000w mm x 3600h mm
Vent - Min Size
700w mm x 1800h mm
Vent - Max Weight
500 kg
Glass - Max Weight
1200 kg
Key Features
Tech Specs
Size Limits
Configurations
Colours
Hardware

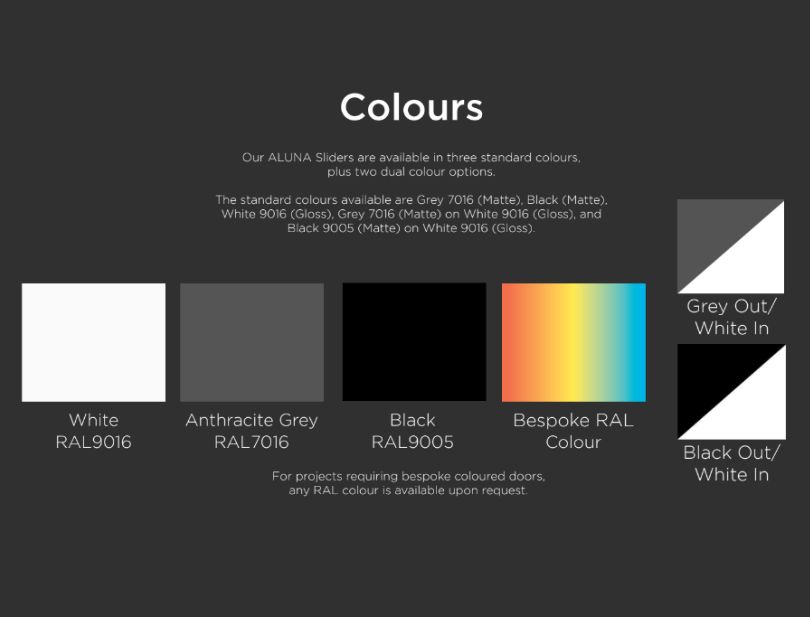

Colours
The ALUNA Slider has three standard colour options and two dual-colour options.
The standard colour options include Grey 7016 (Matt), Black (Matt), White 9016 (Gloss), Grey 7016 (Matt) on White 9016 (Gloss), and Black 9005 (Matt) on White 9016 (Gloss).
For bespoke coloured doors featuring any RAL colour, speak to a member of our team for more information.

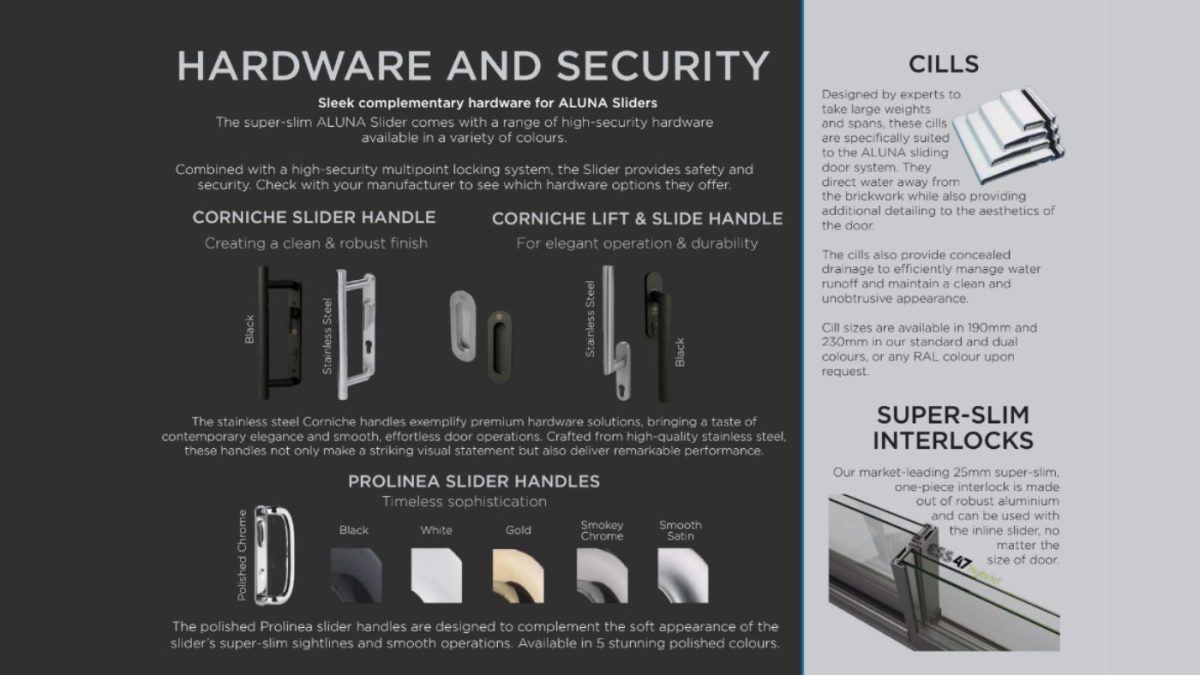

Hardware
Enhance the look, performance, and durability of your sliding doors with the ALUNA Slider’s hardware options.
Why Exeter Trade Aluminium?
Quick Quote Turnaround
Competitive Trade Prices
Buy Directly From The Factory
Accurate Lead Times
Fast Track Options
Supplier Support
Versatile Configurations
Exeter Showroom
Manufactured Onsite
Expansive Delivery Area
Full RAL Colours
See Our
Premium Ranges
Request a quote for aluminium lift and slide doors.
In need of a quote for aluminium lift and slide doors?
Please complete our short form with your requirements and a member of the team will be in contact with your quote.
We supply lift and slide doors to the trade and homeowners in Exeter, and across Devon, Cornwall, Somerset, Dorset, Wiltshire and surrounding areas. Request a quote today.
Alternatively, visit our showroom to touch and experience the products we have on offer. With an expert on hand to answer any questions you have.
Sign up to our email newsletter for the latest product information, lead times and news from Exeter Trade Aluminium.
Contact Us
If you are looking for more information about our aluminium lift and slide doors please get in contact and a member of the team will be happy to help.
