Key Features
Highlights
Part L compliant
Suitable for both new builds and replacement windows
Ideal for small spaces, high-rise buildings or full length windows
Blend seamlessly with fixed windows
Easy to clean outside pane
Tilt to allow for fresh air to flow into the home
Offers exceptional child safety
Appropriate for bay and contemporary styles
Manufactured on site
Options
Frame depth
58 mm or 70 mm
Frame aesthetics
Bay, Contemporary and or Square
Glazing thickness
24 - 40 mm
Specifications
U-value (Double Glazing)
1.4 W/m2K
U-value (Triple Glazing)
1.2 W/m2K
Window Energy Rating (WER)
B - C
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class 8a (600 Pa)
Wind Resistance
Class E2400 (2400 Pa)
Acoustic Performance
Rw (C;Ctr) 44 (-1;-5) dB
Sightline (Frame to Vent)
86 mm
Sightline (Vent to Mullion)
100 mm
Sightline (Fixed Light)
43 mm
Downloads
Aluk Windows and Doors Brochure
pdf
12.13 MB
Download
AluK 58BW TBT HI Data Sheet
pdf
1.25 MB
Download
Size Limits
Options
Tilt & Turn - Max Size
1725w x 2300h mm
Tilt & Turn - Min Size
380 x 575 mm / 480 x 375 mm
Tilt & Turn - Max Weight
150 kg
Fixed Light - Max Weight
250 kg
Configurations
Combine the 58BW tilt-before-turn windows side hung, fixed light and multi-light configurations.

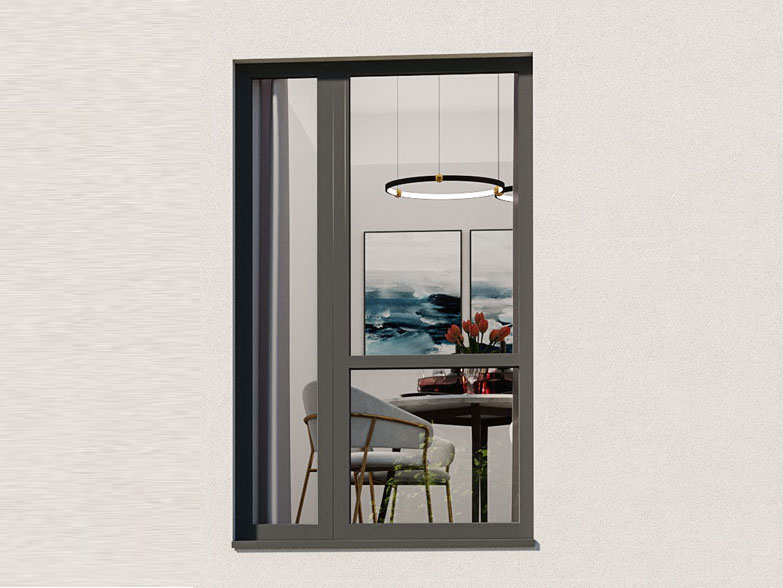

Left: TBT, Right: Fixed Light

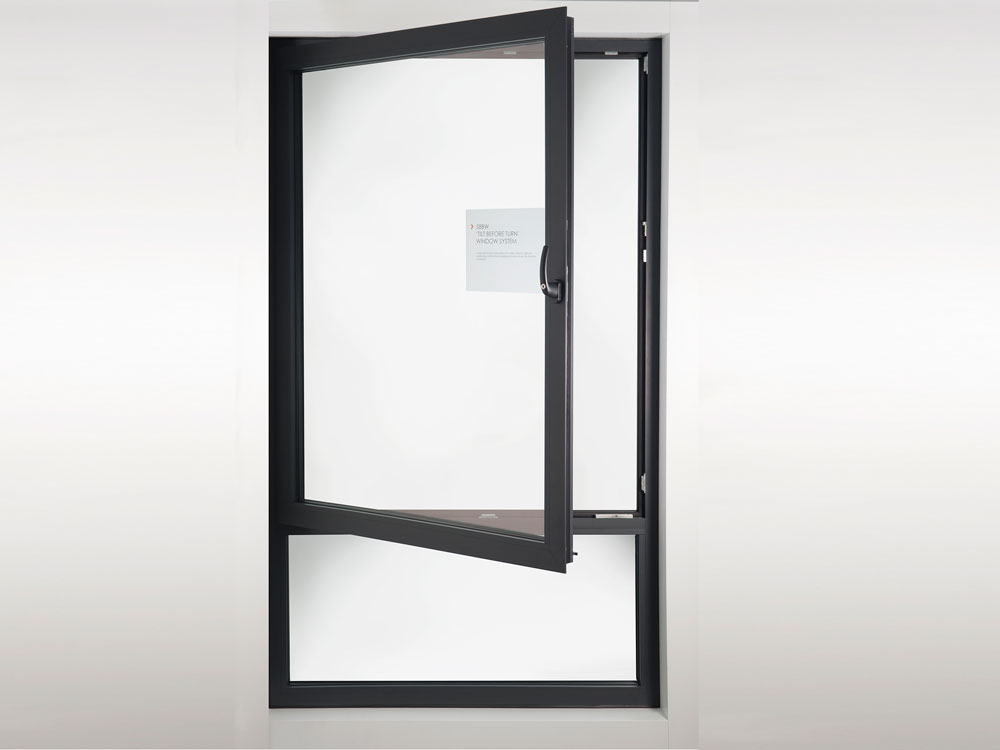

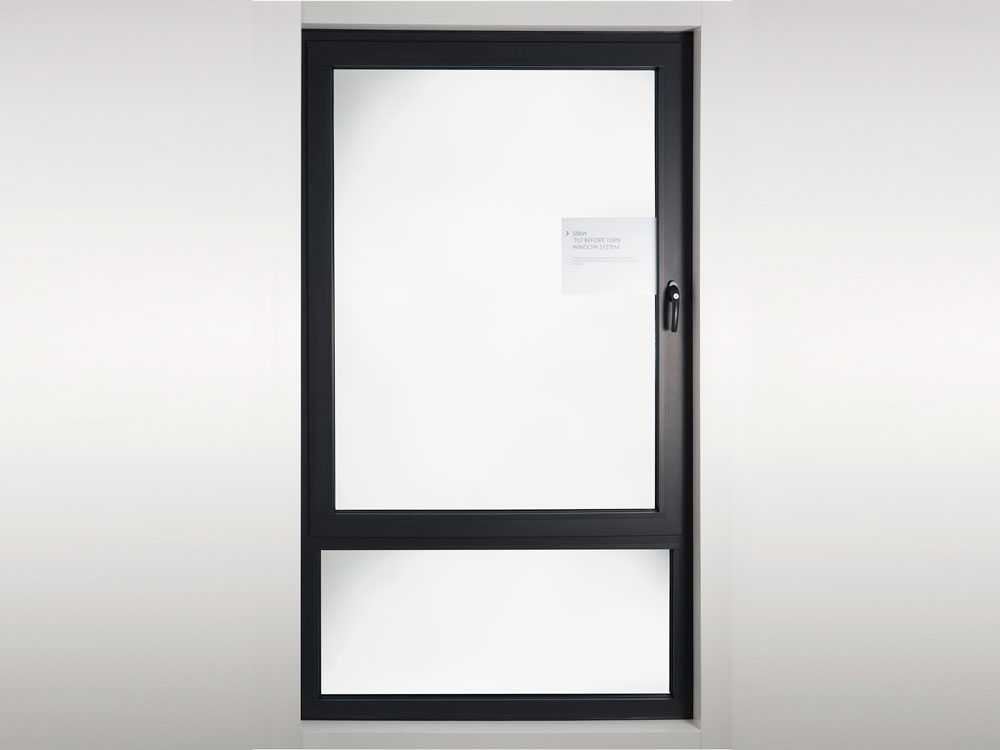

Multi-light, Top; TBT Open View
AluK Colour Options
Whether you are looking for a statement colour or a more subtle colour for your tilt and turn windows, the AluK 58BW TBT is available in the full RAL colour range. Giving you a 150 colours to choose from, guaranteeing that you will find the one that suits.
Powder coated to provide protection against the elements, as well as long lasting colour.
Single colour allows for the same colour inside and out. Or select the dual colour option, allowing you to select an exterior colour which matches the style of the outside of the house, whilst choosing a different colour for the interior of the casement window to blend in with the internal colour scheme.
Please find some of our most popular tilt and turn window colour options below.
For further inspiration take a look at the AluK colour collection brochure.
RAL 7016 - Anthracite Grey
Key Features
Tech Specs
Size Limits
Configurations
Colours
Key Features
Highlights
Highly weather resistant
A great all-round performer
Attractive designs for every home
Suitable for large apertures
Polyamide thermal breaks reduce heat transfer
No need for child restrictors with tilt function
Ventilation available even in light rain
Manufactured on site
Options
Style Variants
Functional, Softline, Hidden Vent
Specifications
U-value
1.2 W/m2K (depending on frame/vent combination and glass thickness)
Air Permeability
Class 4 (600 Pa)
Water Tightness
Class 9a (600 Pa)
Wind Load
Class C3 (1200 Pa)
Acoustic Performance
Rw (C; Ctr) = 42 (-2;-4) dB (triple glazing)
Fire Resistance
EN 13501-2; EN 1365-1; EN1634-1; EI 30; EI 60; EI 45; EW 30
Downloads
Reynaers CS 77 Windows & Doors Brochure
pdf
362.50 KB
Download
Size Limits
Options
Max Vent Size
1200w x 2800h mm
Max Weight Element
170 kg
Min Visible Width Frame (Inward Opening)
51 mm
Min Visible Frame-vent (Inward Opening)
89 mm
Min Visible Width T-profile
76 mm
Overall System Depth Frame
68 mm
Overall System Depth Vent
77 mm
Max Glass Thickness
52 mm
Min Glass Thickness Vent
4 mm
Max Glass Thickness Vent
63 mm

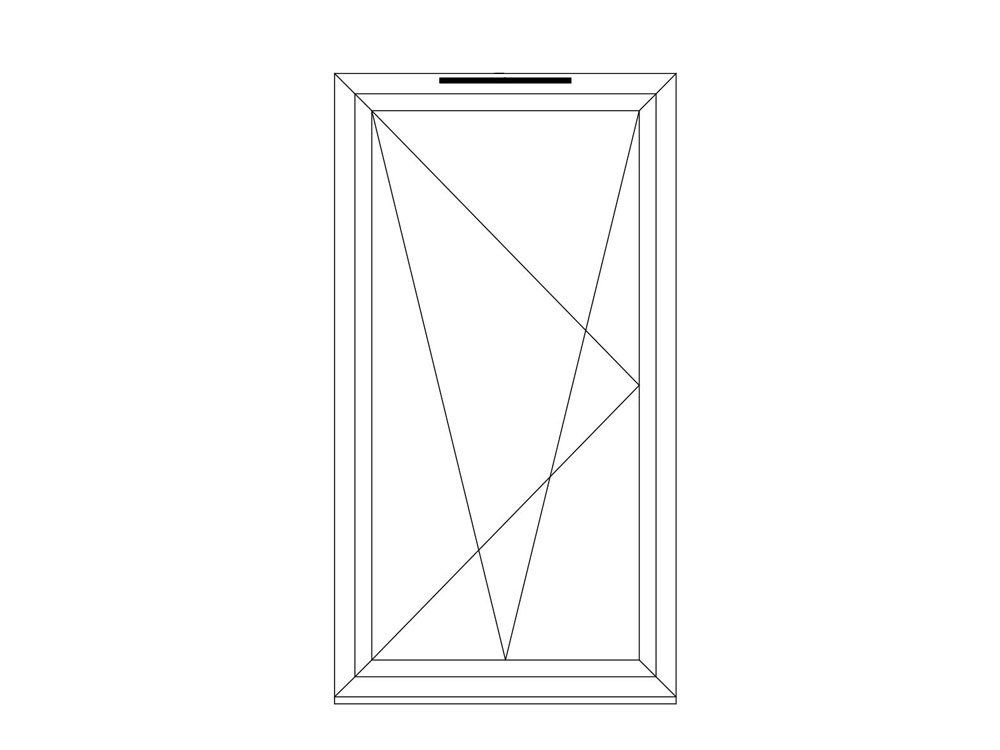

Configurations

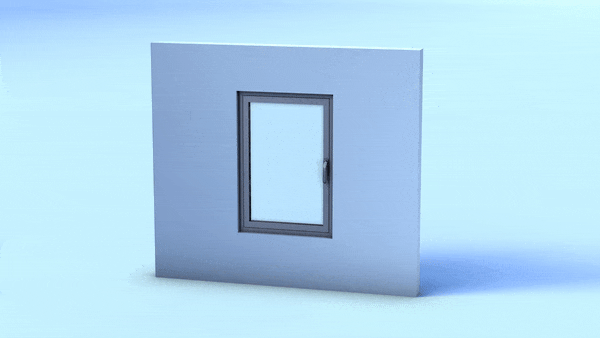

Combine the Reynaers CS 77 tilt and turn window with side hung, fixed light and multi-light configurations.

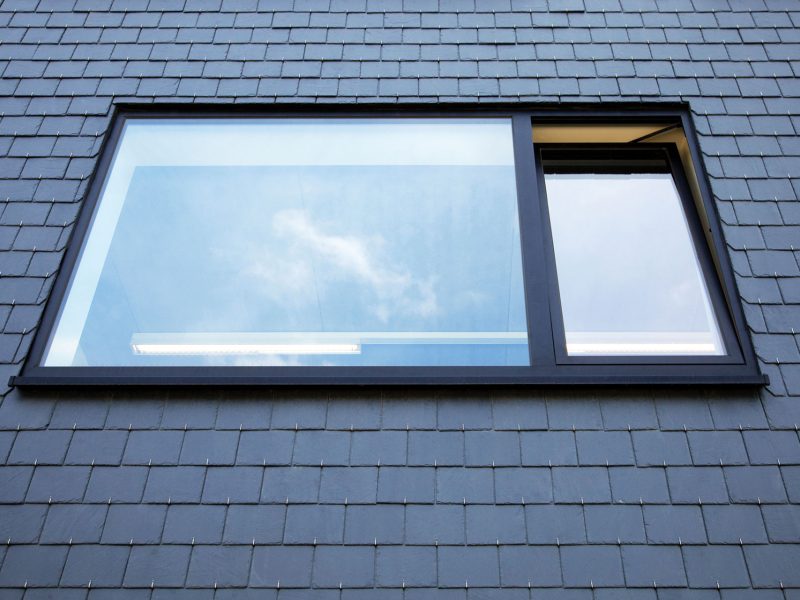

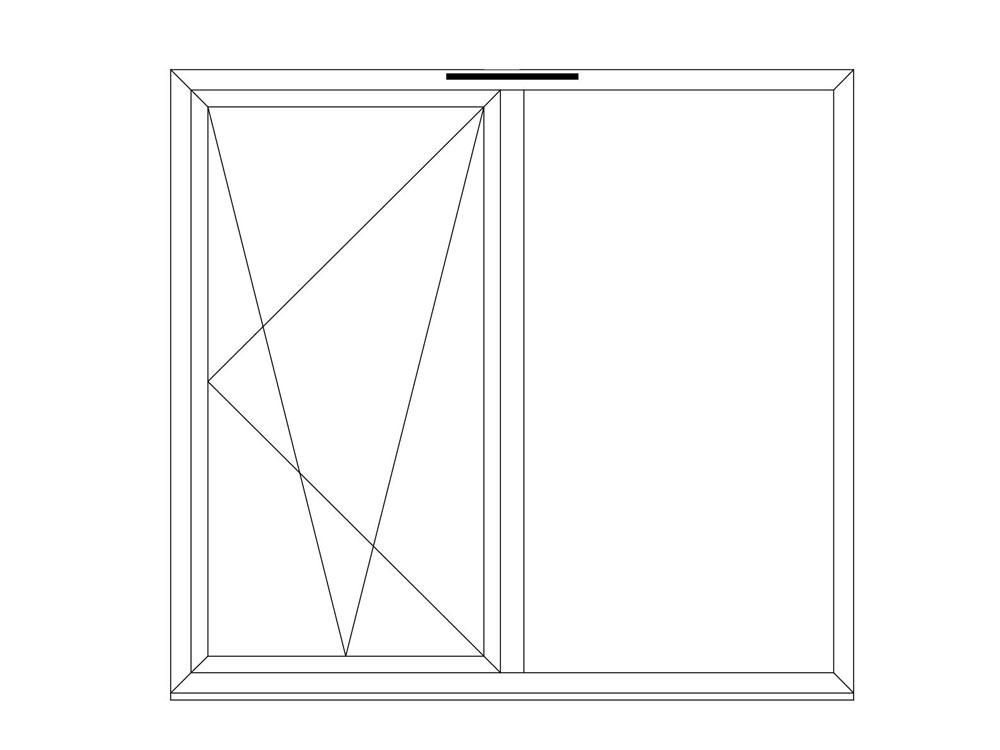

Left: TBT, Right: Fixed Light
Reynaers Colour Options
We offer an array of varied colours for signature styles and classic looks. With such attractive options for tilt and turn aluminium windows, homeowners can create fully bespoke designs to suit the style of their property and to match their tastes.
Choose from one of our most popular colours below, or from the RAL colour range of over 150 RAL colours. In a choice of matt or gloss finish, metallic colours, textured metallic Coatex finishes, wood-grain finishes, and pre-anodised (recommended for marine locations) or anodised coating.
