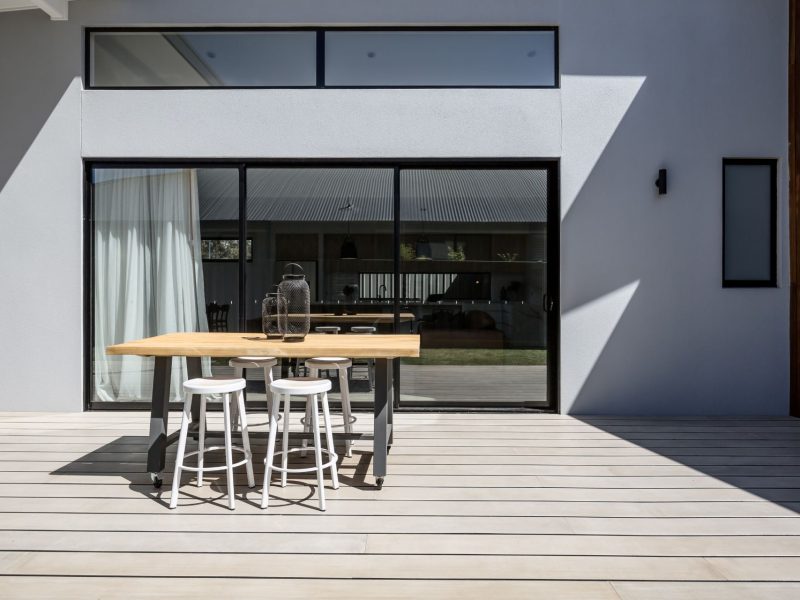

Aluna Sliding Door.

Sliding Doors Exeter & Devon

Our Sliding Doors combine uninterrupted views, a flexible design and fantastic aesthetics. Plus boast an impressive specification all while remaining easy to install, and easy to operate.

Our Affiliations

Aluna Sliding Door.

Sliding Doors

Opened or closed, sliding doors provide minimal interruptions, blurring boundaries between inside and out.

Sliding Doors Exeter

Perfect for Coastal Locations

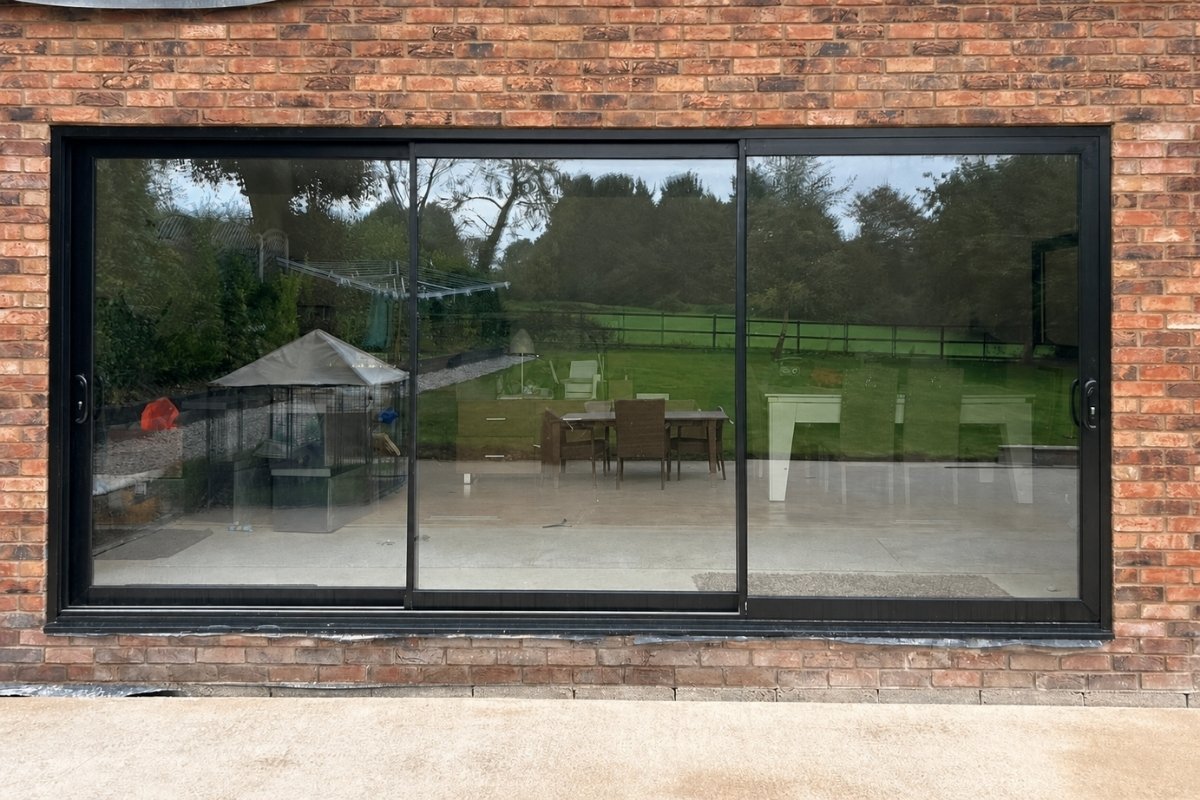

Enjoy spectacular views with contemporary aluminium sliding doors.

Select our pre-anodised finish, and stainless steel handles to protect the doors against the harsh salt air for coastal properties.

Effectively maximise the view while creating a stunning feature using the pocket door, open corner and glass corner configurations. All are achievable with our aluminium sliding doors.



Lift and Slide Doors Devon

Bespoke Fabrication

Visit our showroom to see and experience our sliding doors for yourself. Discuss your configuration requirements with our team of experts.

Fabricated at the Exeter Trade Aluminium factory to your exact size, configuration, hardware and colour/finish requirements. Combining high-quality material and design with top craftsmanship, and excellent guarantees.

Technical Specifications

ALUNA Slider

Origin OS-20

Origin OS-29

Origin OS-44

Origin OS-77

ALUNA Slider

The ALUNA Slider is a stunning addition to any property, adding style and value to your home. Providing excellent thermal efficiency and a strong, super-slim profile section starting from just 25mm, it effortlessly minimises the visible framework with its design.

ALUNA Logo.
Aluna Slider.

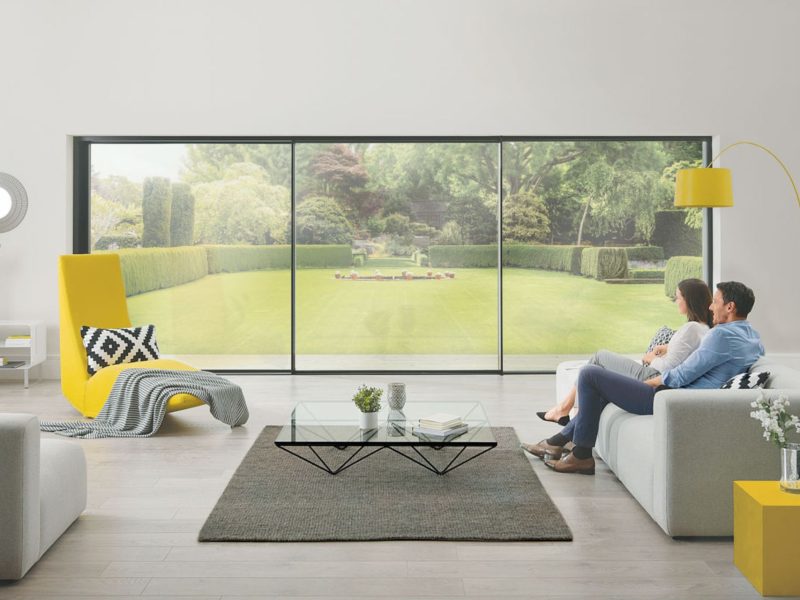

Origin OS-20

A minimalistic design that is guaranteed to complement any interior space, without compromising on performance. At just 20mm, the OS-20’s sightlines are some of the smallest on the market and offer a sleek ultra-slim finish.

Origin Logo.

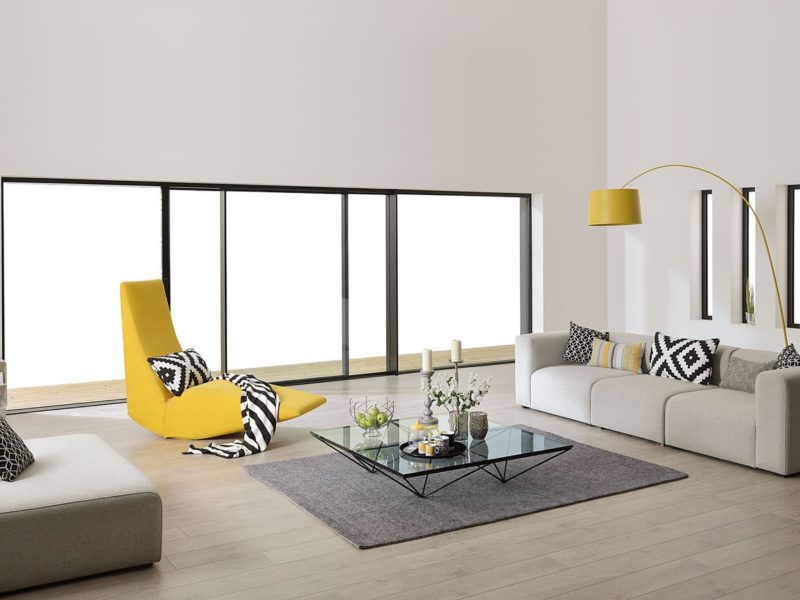

Origin OS20 Sliding Door.

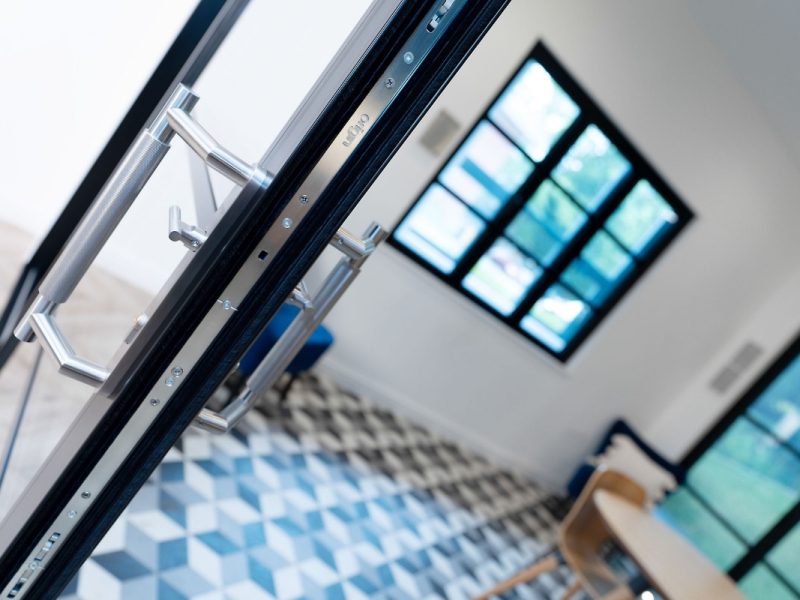

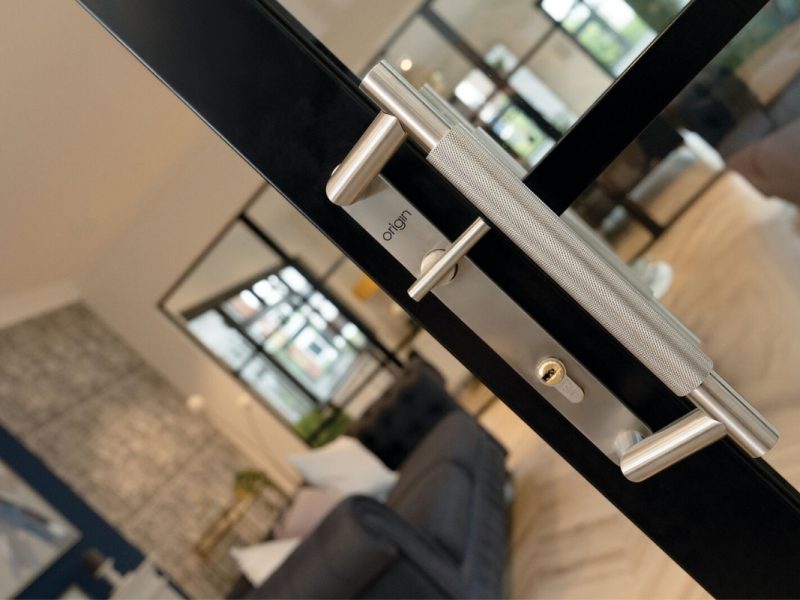

Origin OS-29

Allow an abundance of natural light into your home with the Origin OS-29 Patio Slider. A classic design that can be tailored to your individual style or taste, while still achieving a slim finish with 29mm sightlines.

Origin Logo.
Origin OS29 Sliding Door.

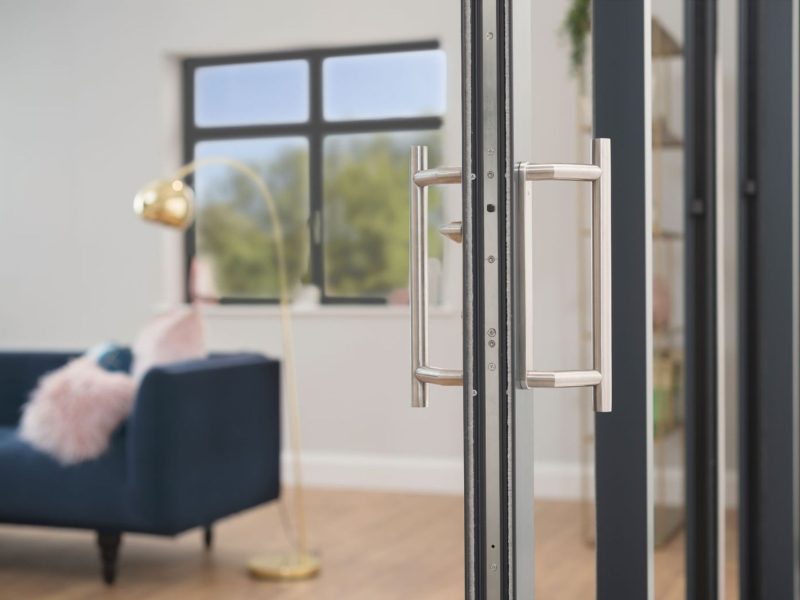

Origin OS-44

The OS-44 sits in the middle of Origin’s Patio Slider range with 44mm sightlines. Made from high-grade aluminium it makes for a practical and stylish solution.

Origin Logo.

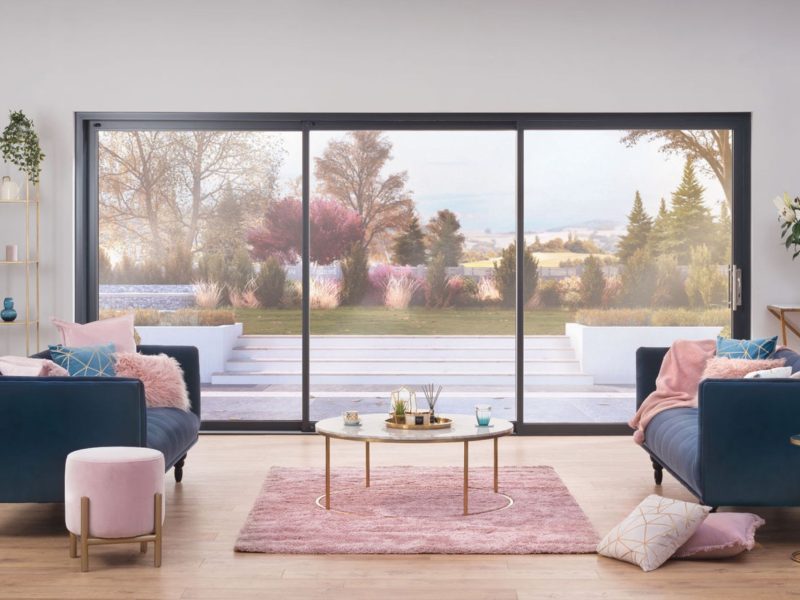

Origin OS44 Sliding Door.

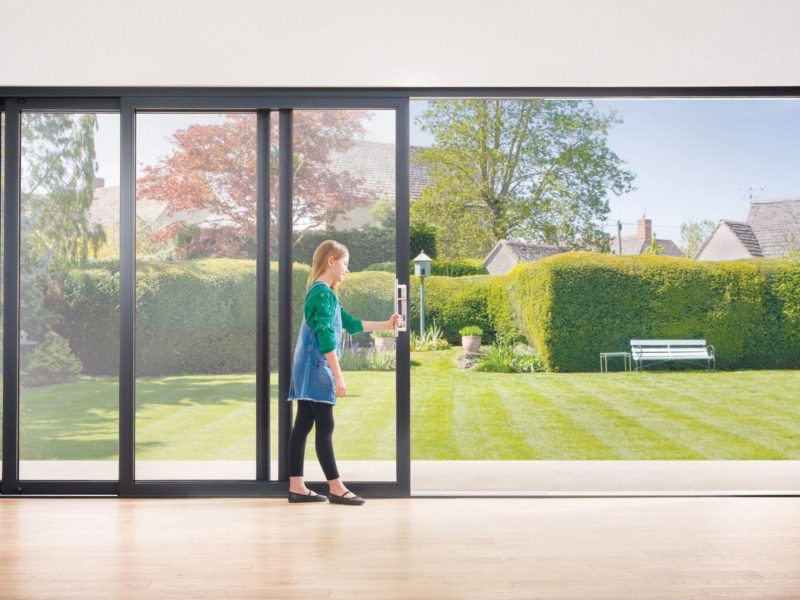

Origin OS-77

If you’re looking to achieve a more traditional look, the OS-77 offers the largest sightlines in the Origin Patio Slider range at 77mm.

Origin Logo.

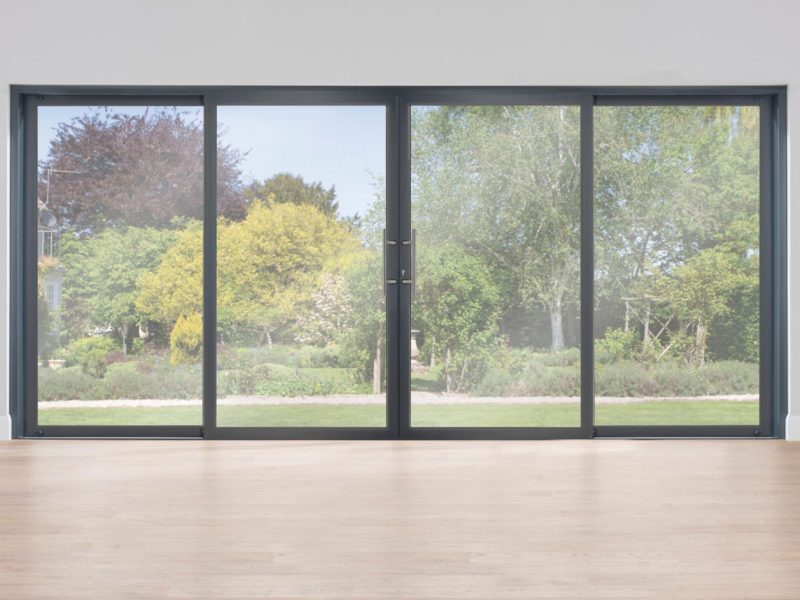

Origin OS77 Sliding Door.

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Aluna Slider.

Key Features

Highlights

Super-slim 25mm interlock or 50mm non-bonded interlock


Double & Triple track options


Security tested to PAS24:2022


U values as low as 1.4 W/m2K


Multi-locking mechanism


Stainless steel lamina on rail profiles for smooth sliding operation


Trickle vents can be added


PVC rail cover for added thermal insulation and water protection


Two levels of channelling water and rubber tubular gaskets provide a robust seal and improved drainage


Options

Options


Track Options
Double & Triple

Threshold
Standard

Glazing
Double or triple

Aluna Slider.

Technical Specifications

Specifications

Performance

Value


U-value
1.4 (W/m2K)

Air Tightness
Up to 300Pa

Water Tightness
Up to 250Pa

Wind Load
Class C2/B3

Energy Rating
C

Burglar Resistance
PAS 24:2022 Compliant

Downloads

Name

Type

Size


Aluna Slider Brochure 2024

pdf

5.78 MB

Download


Aluna Slider.

Size Limits

Options

Size Limits

Value


Maximum Sash Size
2.5m x 2.7m

Maximum Sash Weight Per Door Lead
250kg

Interlock Sightlines
25mm/50mm

Double Track Outer Frame Width
120mm

Triple Track Outer Frame Width
183mm

Configurations

Choose from a wide variety of configurations from two to six panels. Depending on the number of panes chosen and which panes you would like sliding or fixed.

Colours

The ALUNA Slider has three standard colour options and two dual-colour options.

The standard colour options include Grey 7016 (Matte), Black (Matte), White 9016 (Gloss), Grey 7016 (Matte) on White 9016 (Gloss), and Black 9005 (Matte) on White 9016 (Gloss).

For bespoke coloured doors featuring any RAL colour, speak to a member of our team for more information.

ALUNA Slider Door Colours.

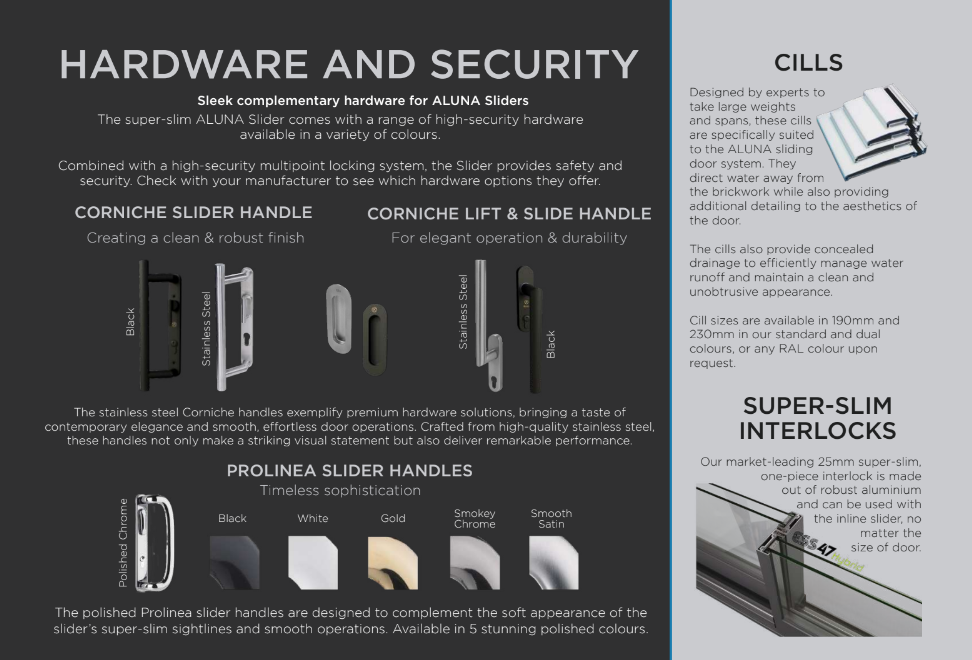

Hardware

Enhance the look, performance, and durability of your sliding doors with the ALUNA Slider’s hardware options.

ALUNA Slider Hardware.

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Key Features

Highlights

20mm sightline


Sleek minimalist design


Over 150 RAL colours


Up to a 20 year gurantee


Options

Options

Value


Extras
Trickle Vents, Drip Bar

Cills
180mm or 225mm

Frame Extender
35mm

Origin OS20 Sliding Door.

Technical Specifications

Specifications

Performance

Value


U-Value
1.4 (W/m2K)

Air Permeability
Class 4

Water Tightness
Class 7A

Resistance to Wind Load
Class A3

Downloads

Name

Type

Size


The Artisan Slider Specification Guide

pdf

7.50 MB

Download


The Sliding Door Collection

pdf

8.46 MB

Download


Origin OS20 Sliding Door.

Size Limits

Options

Size Limits

Value


Double Track Frame Depth
116mm

Triple Track Frame Depth
182mm

Track Height
44mm

Maximum Sash Size
2.2m x 2.93m

Maximum Sash Weight
200kg

Configurations

The OS-20 is available in several configurations from two-door through to a six-door configuration. The maximum individual door size can be made as big as 6sqm.

As standard the two outer panels on the four and six-door configurations are fixed, but the OS-20 also has the option of having all four, or six panels as sliders.

Origin Colour Options

150 RAL Colours

7016M - Anthracite Grey

7015M - Slate Grey

9010G - Hipca White

7021M - Black Grey

9005M - Jet Black

9010M - Hipca White

9007M - Dark Sliver Metallic

9910G/7016M - Dual Colour

Origin Hardware Options

Deluxe Black Soft Touch

Duluxe Rose Gold Soft Touch

Deluxe Anthracite Soft Touch

Premium 251 Solid Stainless

Contemporary Stainless Steel

Premium 301 Solid Stainless

Premium 303 Solid Stainless

Solid Stainless with Long Back Plat

Chrome Offset Lever Handle

Stainless Steel Offset Lever Handle

White Offset Lever Handle

Bow Bar 550mm or 720mm

Hafi Offset Bar 500mm, 1200mm

Hafi Straight Bar 500mm, 1200mm or 1800mm

Cylinder Pull

Door knocker

Letterbox

black-offset-lever-handle

Key Features

Tech Specs

Configurations

Colours

Hardware

Size Limits

Origin OS29 Sliding Door.

Key Features

Key Features

29mm Sightline


PAS 24:2016 Certified


Concealed running gear and track


Square beading


Options

Options

Value


Track Options
Double or Triple Track

Colours
Over 150 RAL shades

Extras
Trickle vents, cils or drip bar available

Origin OS29 Sliding Door.

Technical Specifications

Specifications

Tech Specs

Value


U-Values
1.3 (W/m²K)

Air Permeability
Class 3, 600pa

Water Tightness
Class 6A, 250pa

Resistance to Wind Load
1600 Pa

Downloads

Name

Type

Size


The Patio Slider Specification Guide [2.283.3] (1)

pdf

11.29 MB

Download


The Sliding Door Collection [18.2.12] (1)

pdf

8.46 MB

Download


Configurations

The Origin OS-29 is available in several configurations from two-door through to a six-door configuration.

When configuring the OS-29 in four-door and six-door options, the outer panels on the respective variants will be fixed.

Origin Colour Options

150 RAL Colours

7016M - Anthracite Grey

7015M - Slate Grey

9010G - Hipca White

7021M - Black Grey

9005M - Jet Black

9010M - Hipca White

9007M - Dark Sliver Metallic

9910G/7016M - Dual Colour

Origin Hardware Options

Deluxe Black Soft Touch

Duluxe Rose Gold Soft Touch

Deluxe Anthracite Soft Touch

Premium 251 Solid Stainless

Contemporary Stainless Steel

Premium 301 Solid Stainless

Premium 303 Solid Stainless

Solid Stainless with Long Back Plat

Chrome Offset Lever Handle

Stainless Steel Offset Lever Handle

White Offset Lever Handle

Bow Bar 550mm or 720mm

Hafi Offset Bar 500mm, 1200mm

Hafi Straight Bar 500mm, 1200mm or 1800mm

Cylinder Pull

Door knocker

Letterbox

black-offset-lever-handle

Size Limits

Options

Size Limits

Value


Double Track Frame Depth
143mm

Triple Track Frame Depth
213mm

Track Height
50mm

Sightline
29mm

Maximum Sash Size
2.2m x 2.52m

Maximum Sash Weight
200kg

Key Features

Tech Specs

Configurations

Hardware

Colours

Size Limits

Origin OS44 Sliding Door.

Key Features

Key Features

44mm sightline


Slim design


Concealed running gear and track


Square beading


Options

Options

Value


Track
Double or Triple

Colours
150 RAL Shades

Extras
Trickle Vents, Cills and Drip Bar available

Origin OS44 Sliding Door.

Technical Specifications

Specifications

Tech Specs

Value


U-Values
1.3 (W/m2K)

Air Permeability
Class 3, 600Pa

Water Tightness
Class 6A, 250Pa

Resistance to Wind Load
1600Pa

Downloads

Name

Type

Size


The Sliding Door Collection [18.2.12] (1)

pdf

8.46 MB

Download


The Patio Slider Specification Guide [2.283.3] (1)

pdf

11.29 MB

Download


Configurations

The Origin OS-44 is available in several configurations from two-door through to a six-door configuration.

When configuring the OS-44 in four-door and six-door options, the outer panels on the respective variants will be fixed.

Origin Hardware Options

Deluxe Black Soft Touch

Duluxe Rose Gold Soft Touch

Deluxe Anthracite Soft Touch

Premium 251 Solid Stainless

Contemporary Stainless Steel

Premium 301 Solid Stainless

Premium 303 Solid Stainless

Solid Stainless with Long Back Plat

Chrome Offset Lever Handle

Stainless Steel Offset Lever Handle

White Offset Lever Handle

Bow Bar 550mm or 720mm

Hafi Offset Bar 500mm, 1200mm

Hafi Straight Bar 500mm, 1200mm or 1800mm

Cylinder Pull

Door knocker

Letterbox

black-offset-lever-handle

Origin Colour Options

150 RAL Colours

7016M - Anthracite Grey

7015M - Slate Grey

9010G - Hipca White

7021M - Black Grey

9005M - Jet Black

9010M - Hipca White

9007M - Dark Sliver Metallic

9910G/7016M - Dual Colour

Size Limits

Options

Size Limits

Value


Double Track Frame Depth
143mm

Triple Track Frame Depth
213mm

Track Height
50mm

Sightline
44mm

Maximum Sash Size
2m x 2.52m

Maximum Sash Weight
200kg

Key Features

Tech Specs

Configurations

Colours

Hardware

Size Limits

Origin OS77 Sliding Door.

Key Features

Key Features

77mm sightline


PAS 24:2016 Certified


Concealed running gear and track


Square beading


Options

Options

Value


Track
Double or Triple

Colour
150 RAL Shades Available

Extras
Trickle Vents, Cills and Drip Bar Available

Origin OS77 Sliding Door.

Technical Specifications

Specifications

Tech Spec

Value


U-Values
1.3 (W/m2K)

Air Permeability
Class 3, 600Pa

Water Tightness
Class 6A, 250Pa

Resistance to Wind Load
1600Pa

Downloads

Name

Type

Size


The Sliding Door Collection [18.2.12] (1)

pdf

8.46 MB

Download


The Patio Slider Specification Guide [2.283.3] (1)

pdf

11.29 MB

Download


Configurations

The Origin OS-77 is available in several configurations from two-door through to a six-door configuration.

When configuring the OS-77 in four-door and six-door options, the outer panels on the respective variants will be fixed.

Origin Colour Options

150 RAL Colours

7016M - Anthracite Grey

7015M - Slate Grey

9010G - Hipca White

7021M - Black Grey

9005M - Jet Black

9010M - Hipca White

9007M - Dark Sliver Metallic

9910G/7016M - Dual Colour

Origin Hardware Options

Deluxe Black Soft Touch

Duluxe Rose Gold Soft Touch

Deluxe Anthracite Soft Touch

Premium 251 Solid Stainless

Contemporary Stainless Steel

Premium 301 Solid Stainless

Premium 303 Solid Stainless

Solid Stainless with Long Back Plat

Chrome Offset Lever Handle

Stainless Steel Offset Lever Handle

White Offset Lever Handle

Bow Bar 550mm or 720mm

Hafi Offset Bar 500mm, 1200mm

Hafi Straight Bar 500mm, 1200mm or 1800mm

Cylinder Pull

Door knocker

Letterbox

black-offset-lever-handle

Size Limits

Options

Size Limits

Value


Double Track Frame Depth
143mm

Triple Track Frame Depth
213mm

Track Height
50mm

Sightline
77mm

Maximum Sash Size
2m x 2.52m

Maximum Sash Weight
200kg

Product Gallery

View All

Why Exeter Trade Aluminium?

Quick Quote Turnaround

Competitive Trade Prices

Buy directly from the factory

Accurate Lead Times

Fast Track Options

Supplier Support

Versatile Configurations

Exeter Showroom

Manufactured Onsite

Expansive Delivery Area

Full RAL Colours

Lift and slide doors cost

Request a quote for sliding doors

In need of a quote for aluminium sliding doors?

Please complete our short form with your requirements and a member of the team will be in contact with your quote.

We supply lift and slide doors to the trade and homeowners in Exeter, and across Devon, Cornwall, Somerset, Dorset, Wiltshire and surrounding areas. Request a quote today.

Alternatively, visit our showroom to touch and experience the products we have on offer. With an expert on hand to answer any questions you have.

Sign up to our email newsletter for the latest product information, lead times and news from Exeter Trade Aluminium.

Please select which products you are interested in.

* indicates required fields

Privacy Policy

Contact Us

If you are looking for more information about our aluminium lift and slide doors please get in contact and a member of the team will be happy to help.

© 2024 Exeter Trade Aluminium | Privacy Policy | Cookie Policy | Terms & Conditions
