Steel Look Internal Door

Steel Look Internal Doors Exeter & Devon

Divide your space with a steel look internal doors. Using the much-loved crittall style, you can create a sleek, modern and versatile space without compromising on natural light.

Our Affiliations

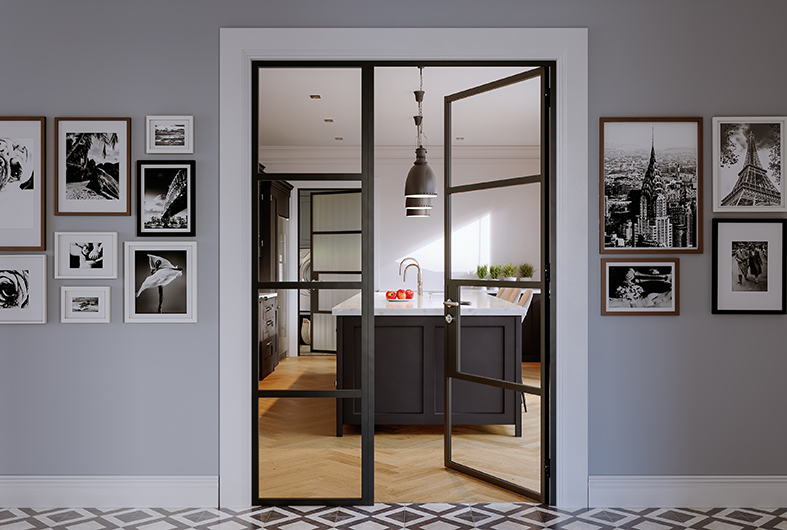

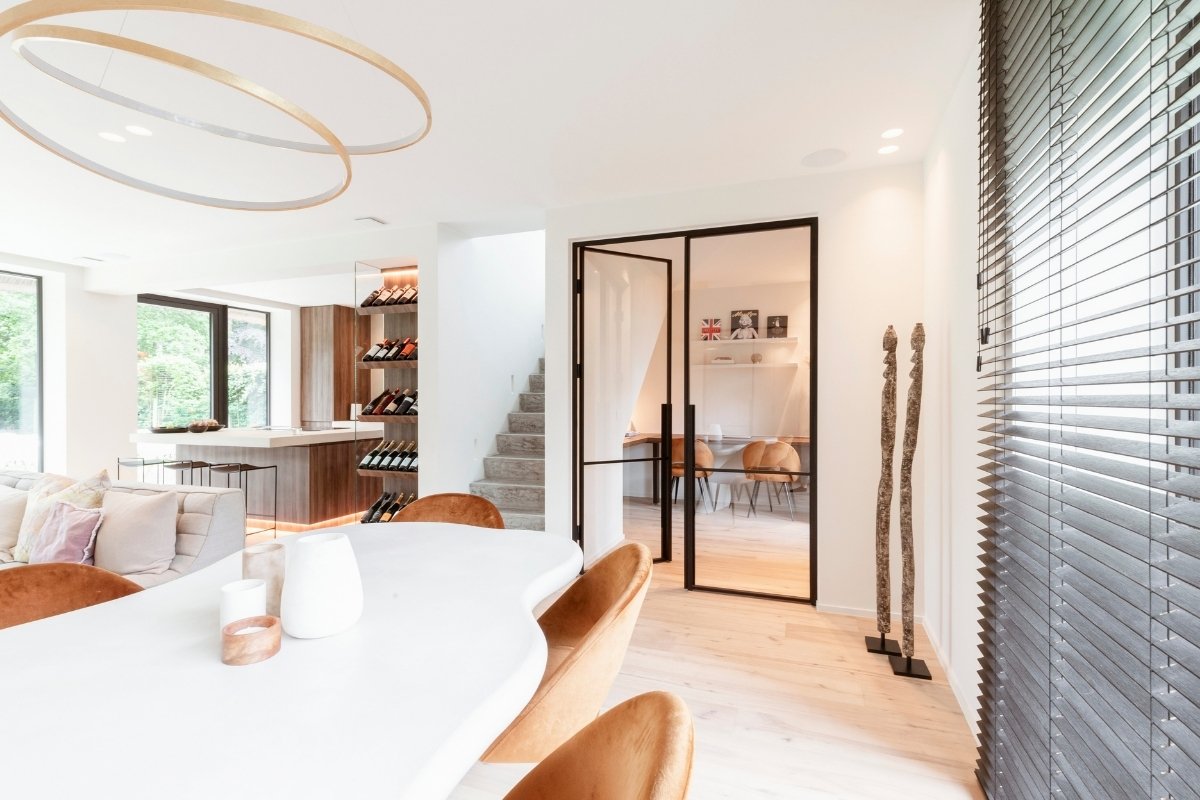

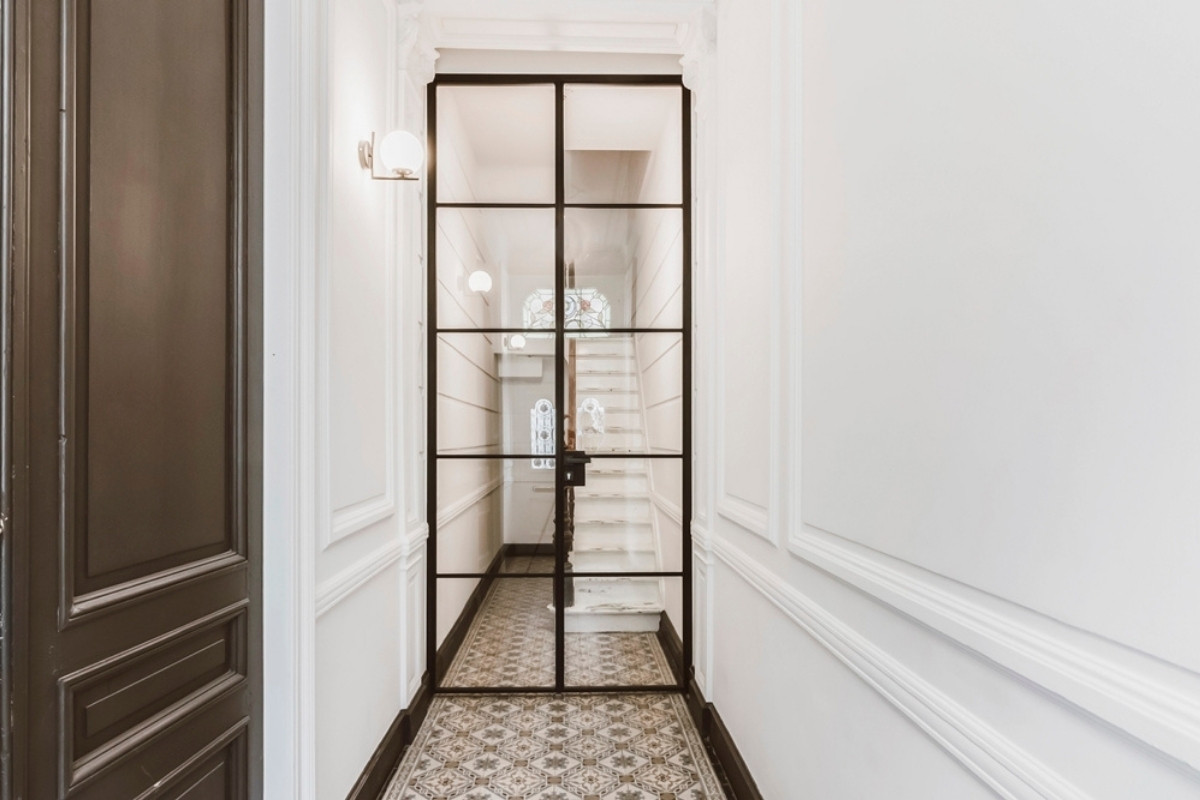

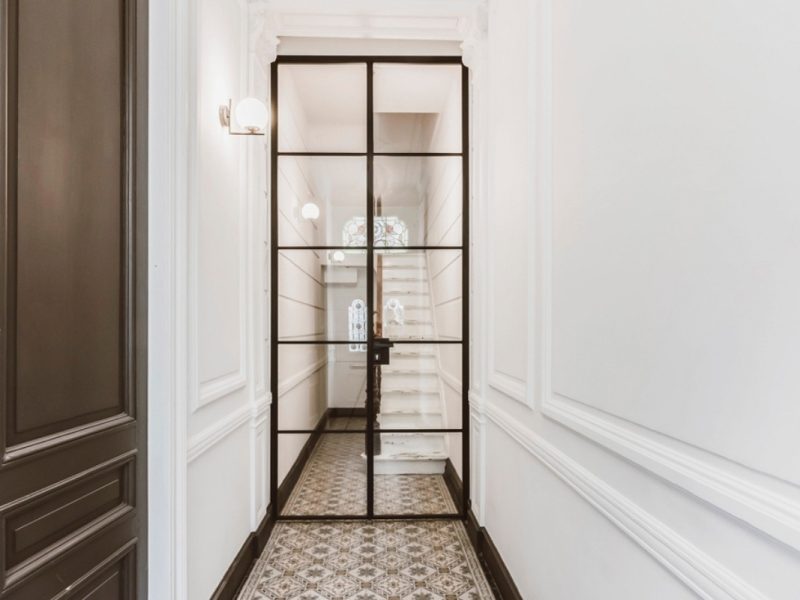

Internal Steel Look Door Devon

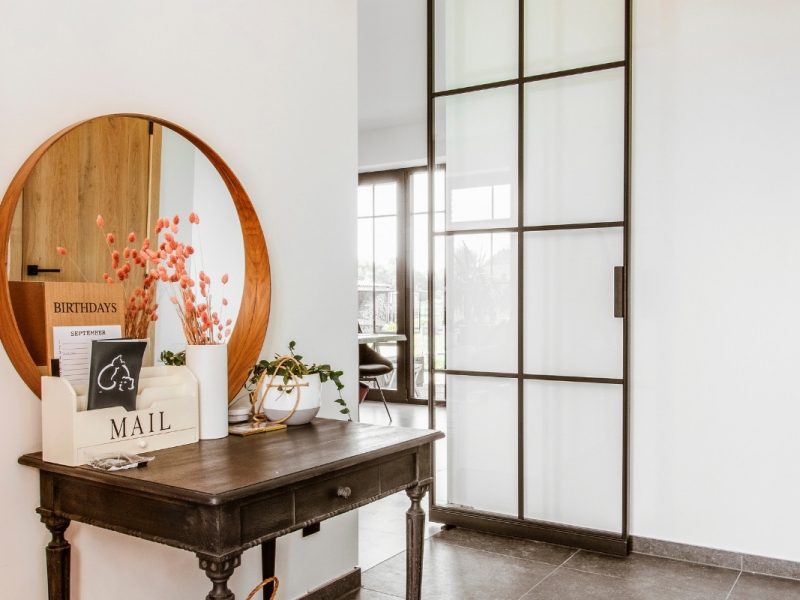

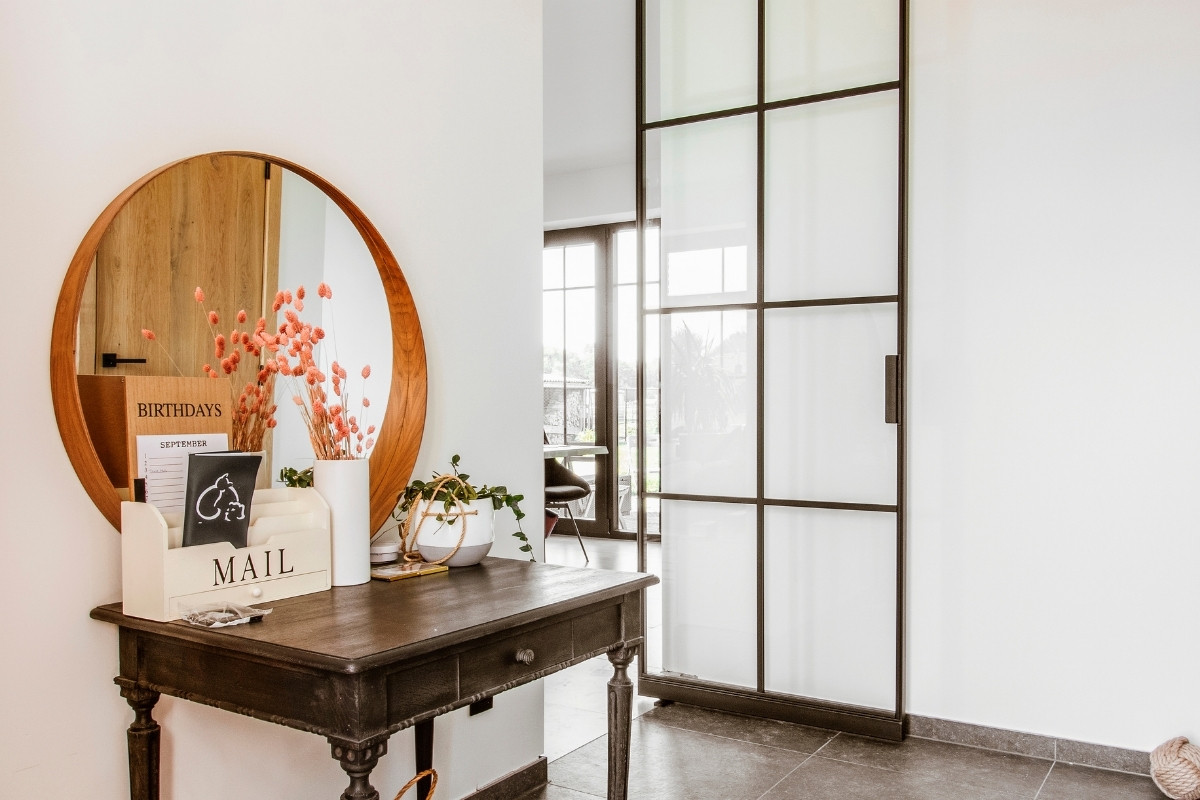

Steel Look Internal Doors Devon

Featuring the slim sight-lines and the traditional aesthetics of steel, at an affordable price. Steel look internal doors will add character to any home or business no matter the style of property.

A perfect option to transform your living area. Dividing space without compromising on natural light, or privacy whilst supporting the need for greater flexibility.

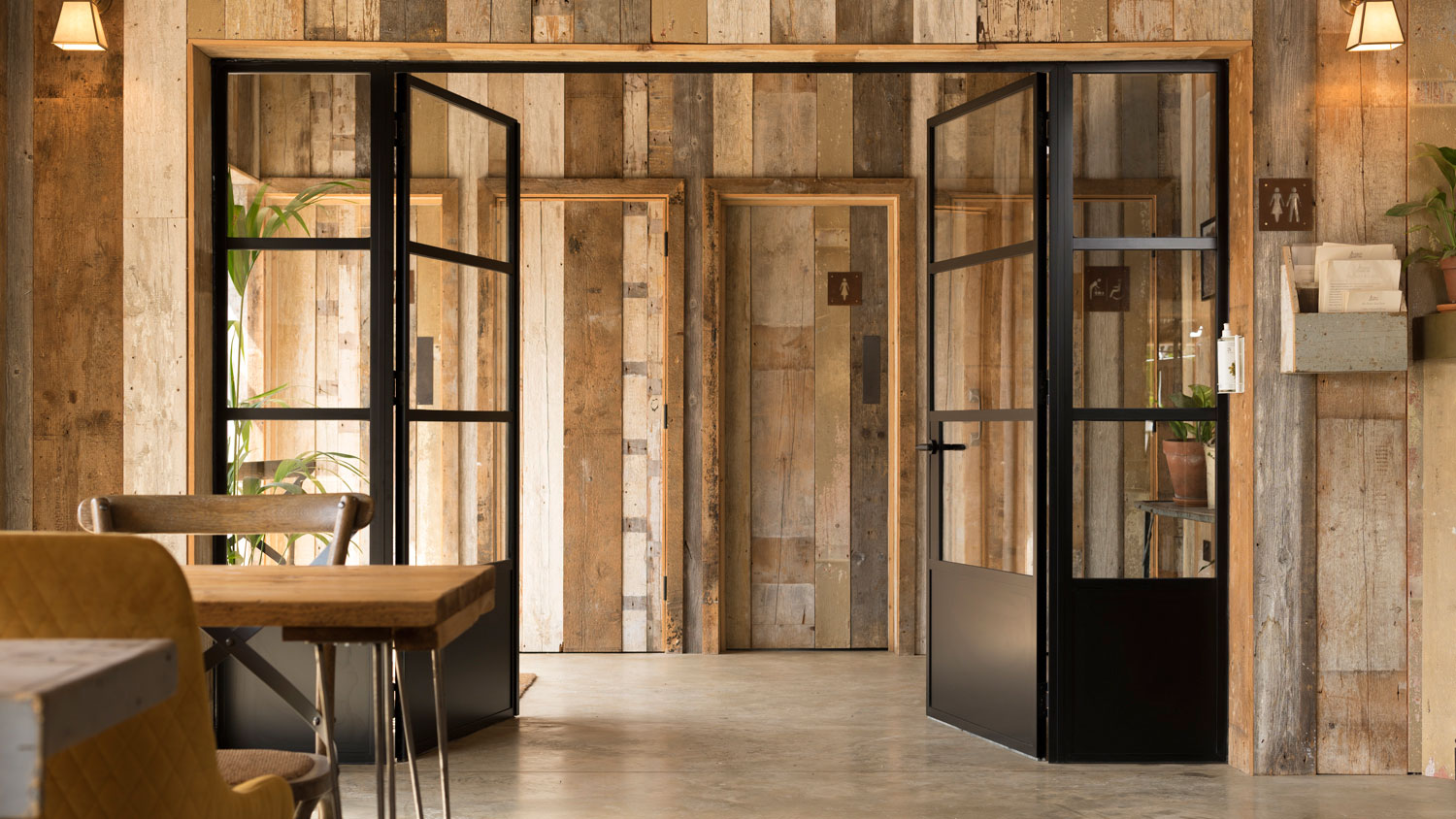

Crittall-style Internal Doors Exeter

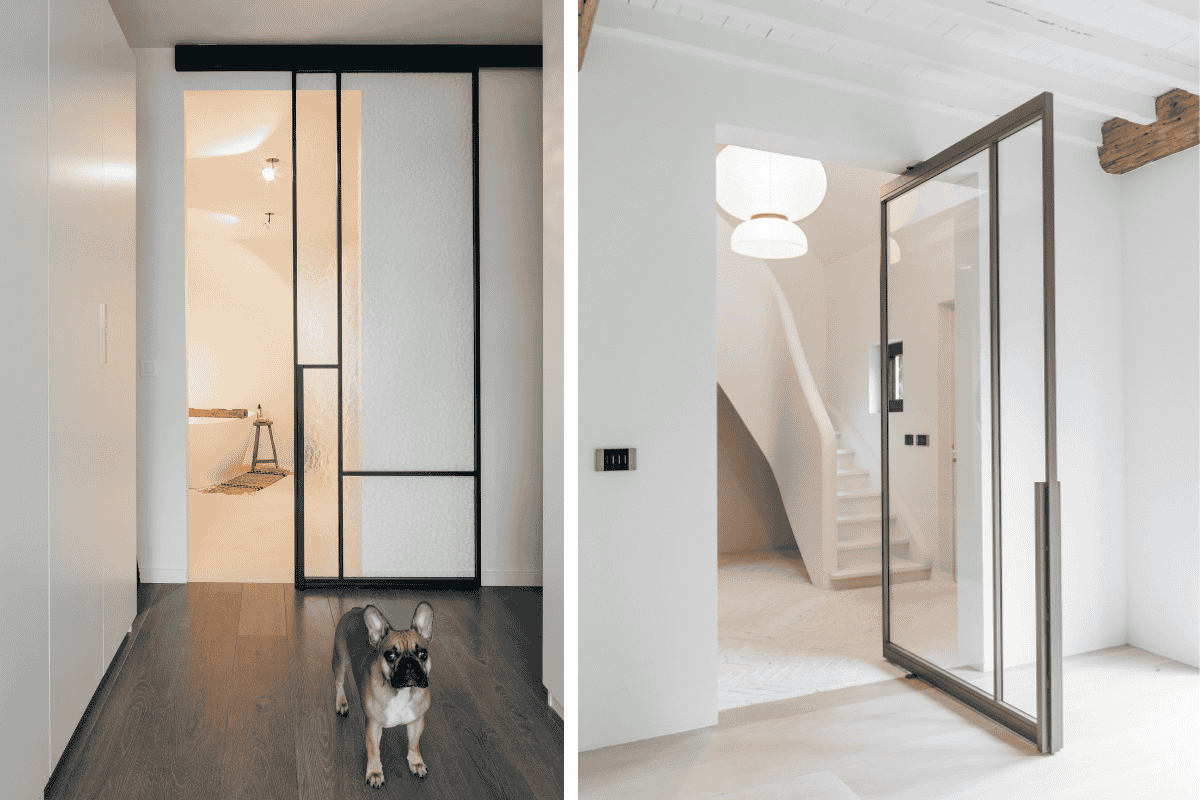

Bespoke Crittall-style Door Configurations

The steel look / Crittall-style internal doors are completely bespoke, so they can be tailored to your size, configuration and accessory requirements. Choose from either a fixed screen, corner configuration, a door configuration or a combination. Allowing you to reinvent the available space, with functionality and design in mind.

No matter what configuration you choose every one is made using premium grade aluminium for a smooth, flawless and effortless operation.



Technical Specifications

Origin OI-30

Origin OI-30

The Crittall-style Origin OI-30 delivers modern, stylish, steel-look statement pieces, perfect for dividing a room. The OI-30 range includes steel-look glazed wall and door systems. Perfect for both commercial and residential installations. Created completely bespoke and fully customisable, with every product precision engineered to fit your space.

Origin Doors and Windows Logo
Origin Internal Steel Look Internal Doors

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

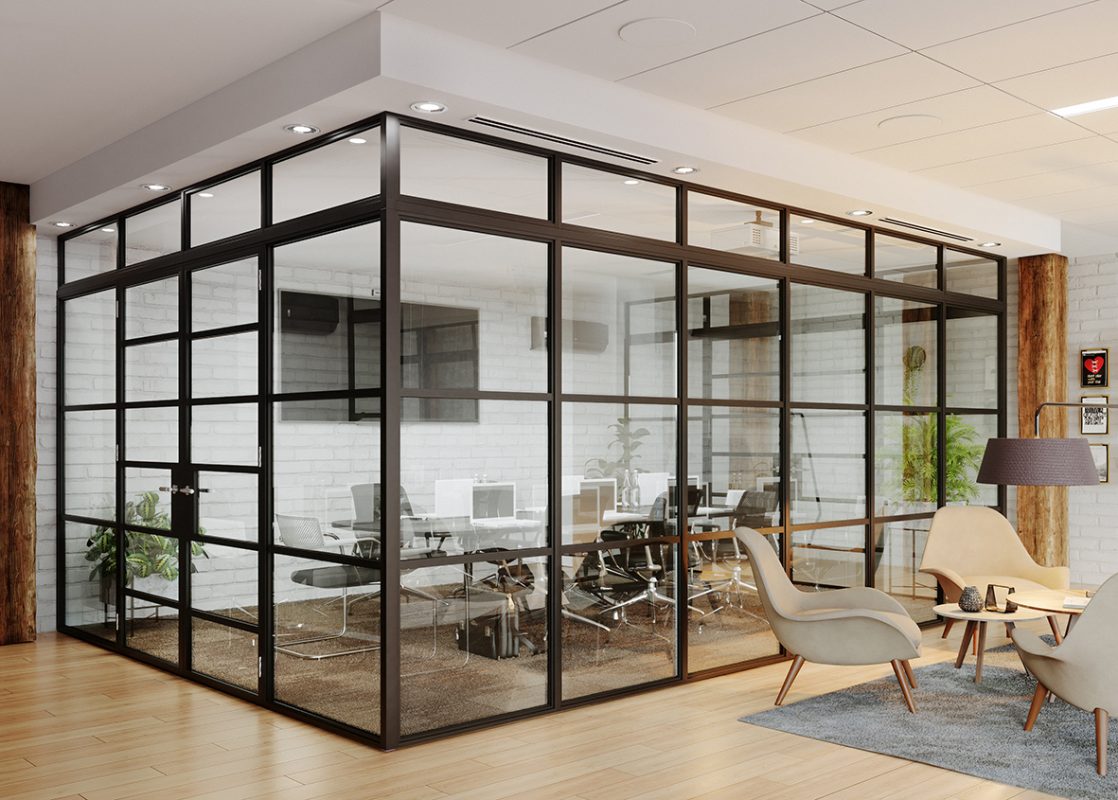

Internal Steel Look Glazed Screen With Double Doors

Key Features

Highlights

Completely bespoke


Powdercoated for a smooth finish


Open in / open out configurations


Beading options to suit your style requirements


Suitable for commercial and residential installations


Up to six horizontal and two vertical splits


35 mm glazing divides


Coupling available


Made in Britain


Options


Configurations
Single or French Doors, Fixed Screens, & Corner Configurations

Top Light
Available above the doors

Beading
Square or Chamfered Bead

Glazing Depth
4, 6, or 6.8 mm

Handle Options
Various handle styles and colours

Glazing Bars
Various options to suit your style requirements

Number of Glazing Splits
0 - 6

Blackout Panel or Kickplate
Yes

Hardware Options
Various hinge and door stop colours

Concealed Coupler
300 - 1800 mm

T-Coupler
1801 - 3000 mm

Internal Steel Look Glazed Screen With Double Doors

Technical Specifications

Specifications

Performance

Value


Frame Sightline
30 mm

Frame Depth
40 mm

Glass Divide Depth
31 mm

Glass Divide Width
35 mm

Min Drill Depth with Shootbolt Keep
42 mm

Min Drill Depth without Shootbolt Keep
15 mm

Threshold Clearance
10 mm

Downloads

Name

Type

Size


The Origin Internal Door

pdf

5.35 MB

Download


Internal Steel Look Glazed Screen With Double Doors

Size Limits

Options

Properties

Limit


SINGLE DOOR

Sash Width - Max
1000 mm

Sash Width - Min
300 mm

Sash Height - Max
2500 mm

Sash Height - Min
1500 mm

Frame Width - Max
1046 mm

Frame Width - Min
346 mm

Frame Height - Max
3000 mm

Frame Height - Min
1533 mm

FRENCH DOOR

Sash Width - Max
1000 mm

Sash Width - Min
300 mm

Sash Height - Max
2500 mm

Sash Height - Min
1500 mm

Frame Width - Max
2060 mm

Frame Width - Min
660 mm

Frame Height - Max
3000 mm

Frame Height - Min
1533 mm

FIXED FRAME

Frame Width - Max
2000 mm

Frame Width - Min
300 mm

Frame Height - Max
3000 mm

Frame Height - Min
300 mm

Internal Steel Look Glazed Screen With Double Doors

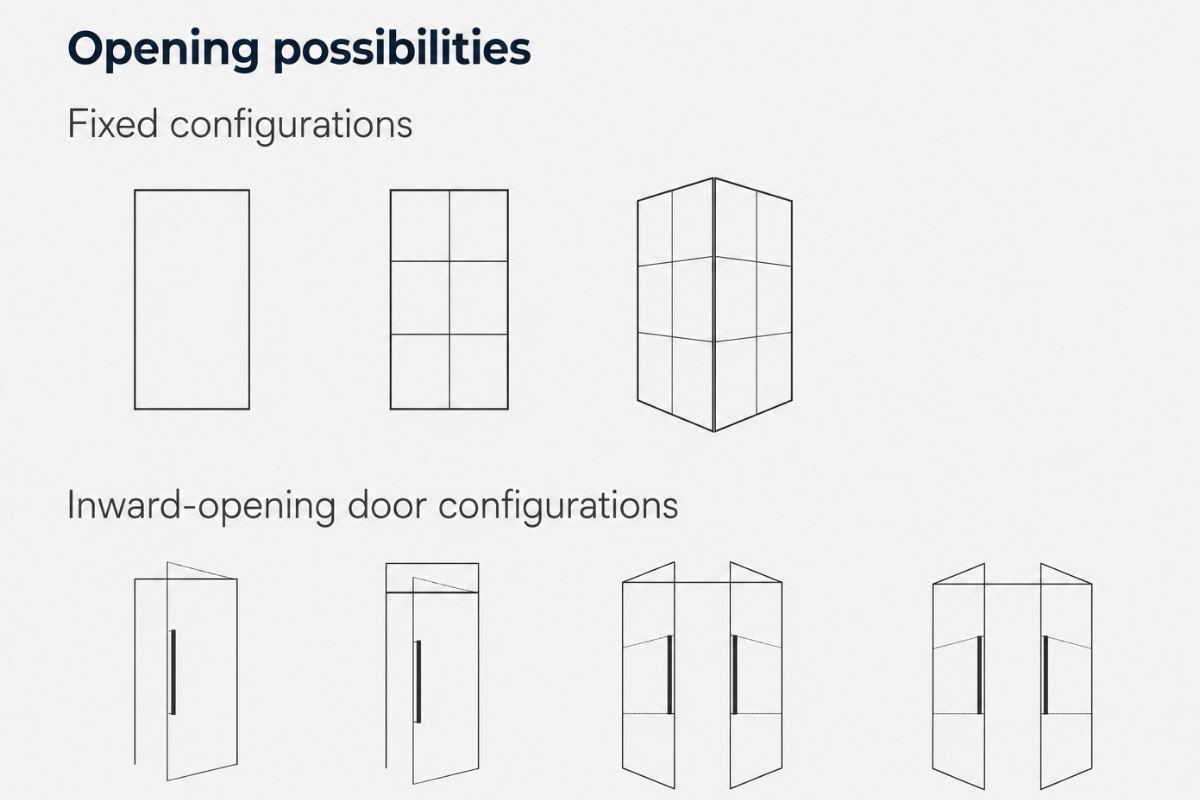

Configurations

Combine single door, French door, fixed frames and corner configurations to create a solution to perfectly match the space and style within the property.

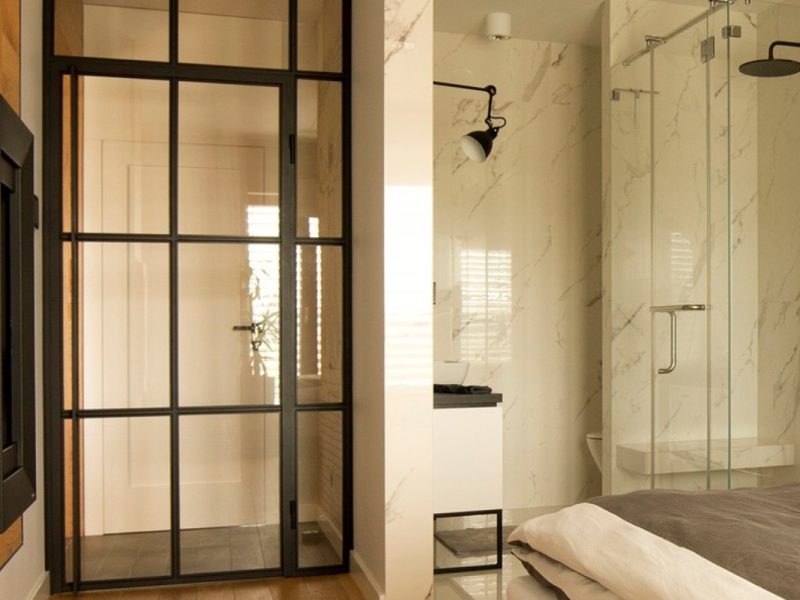

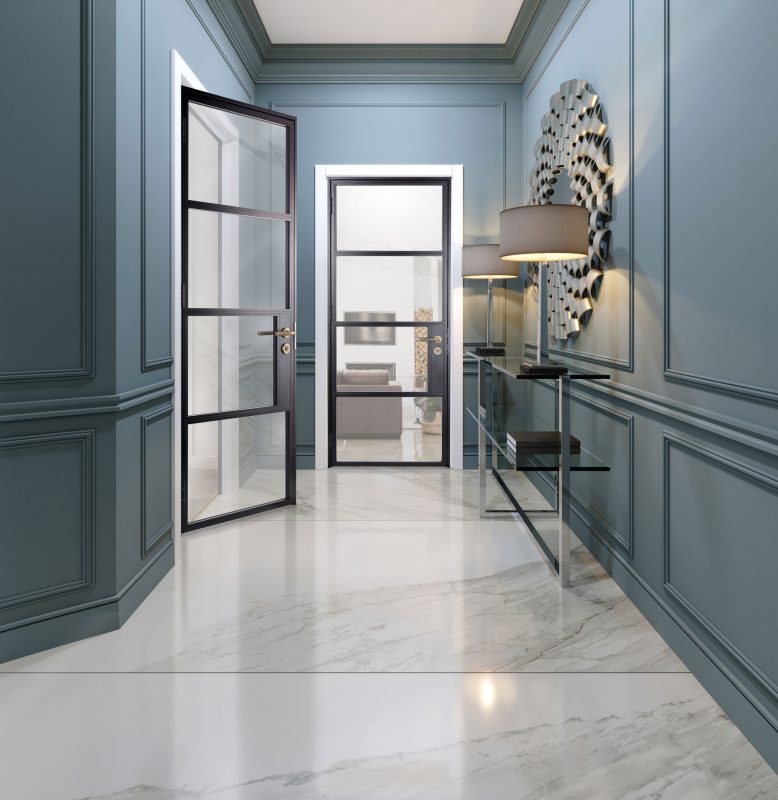

Steel Look Internal Steel Door

Steel Look Internal Door

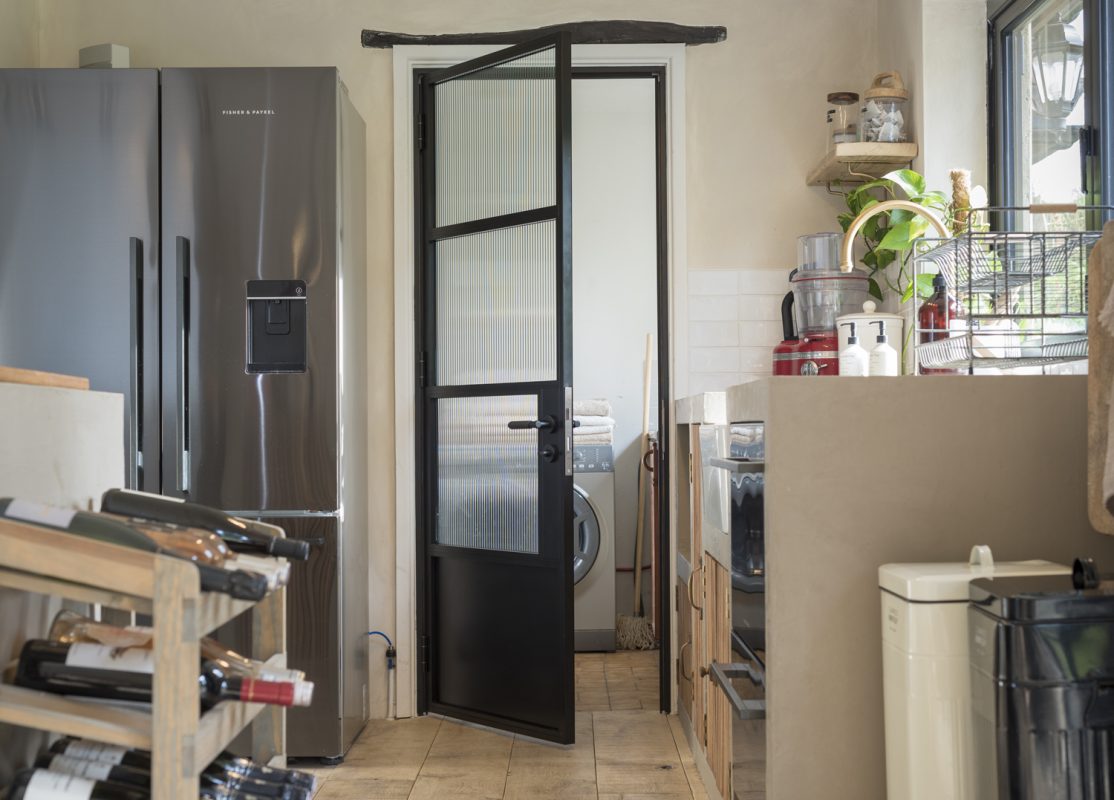

Steel Look Internal Glazed Door

Single Door with Blackout Panel

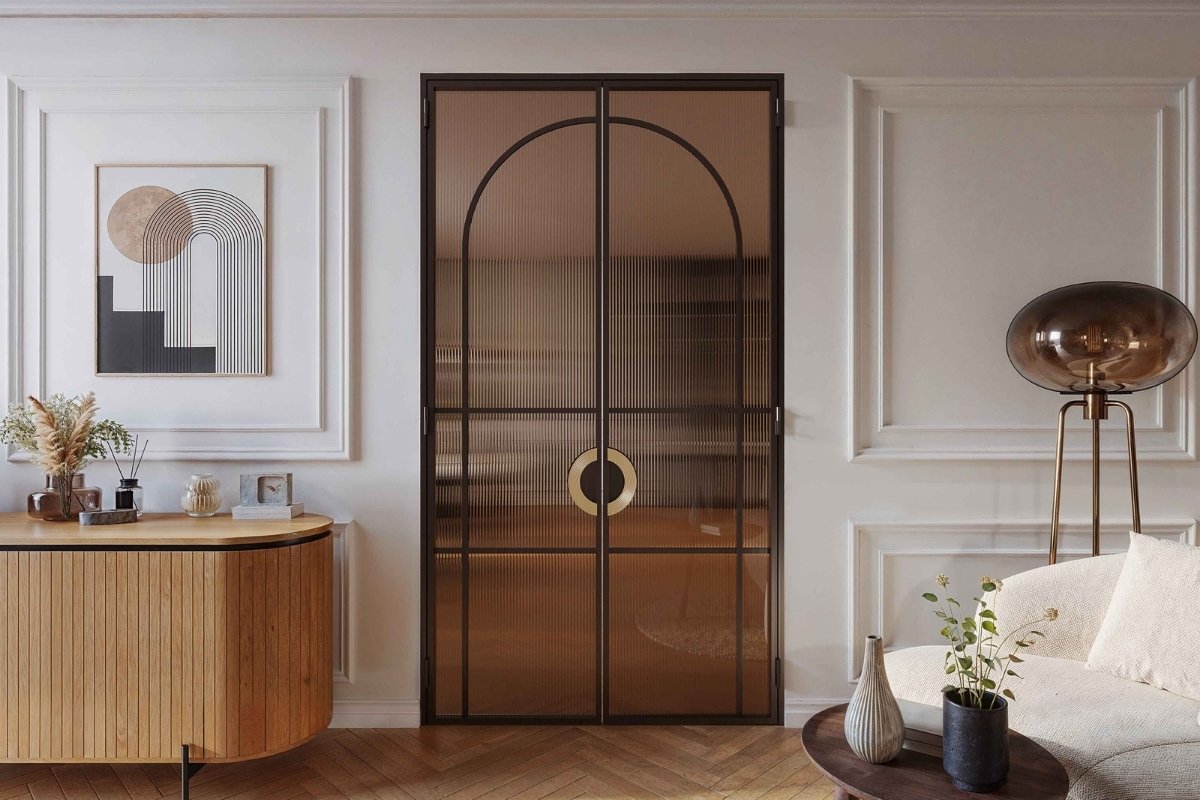

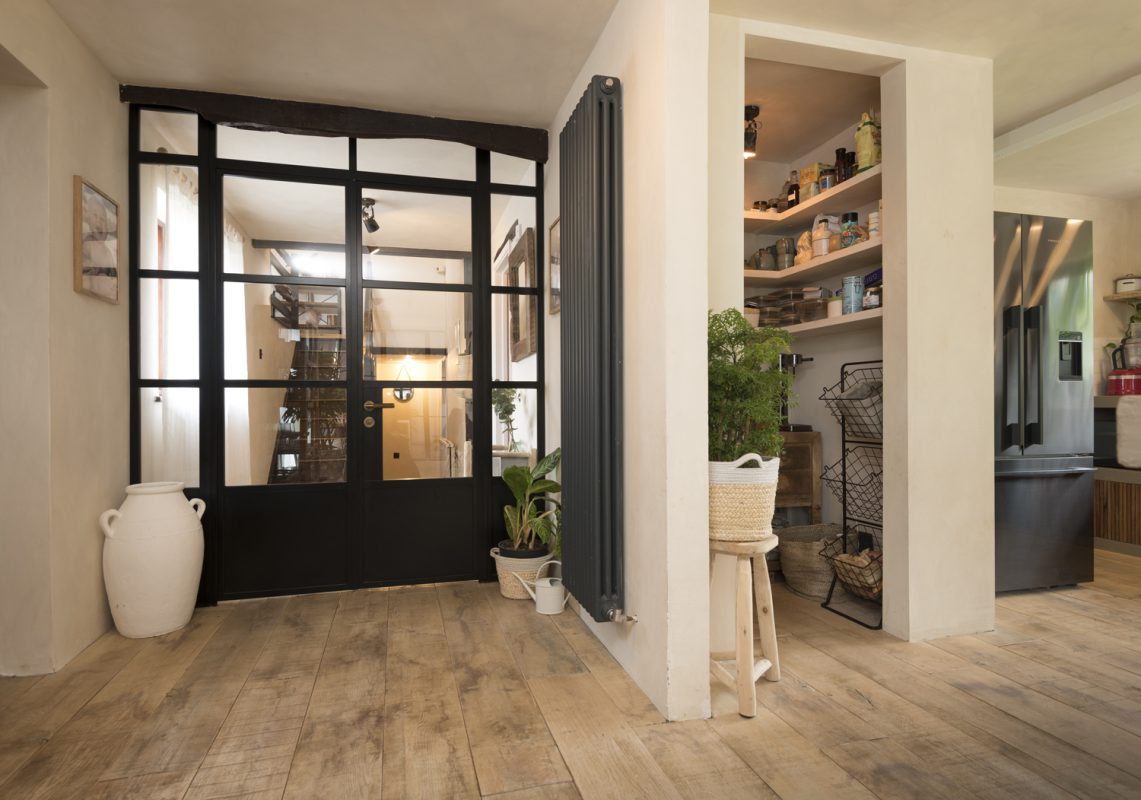

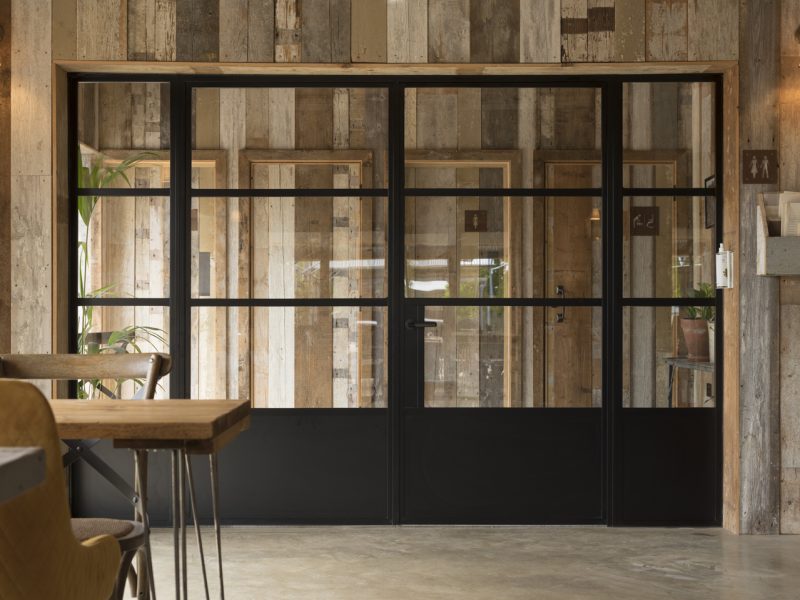

Steel Look Internal Double Doors

French Doors

Steel Look Internal Double Doors

French Doors with Side and Top Light

Steel Look Internal Screen

Fixed Screen

Internal Steel Look Glazed Screen With Double Doors

Corner Configuration

PREVIOUS

NEXT

Internal Steel Look Glazed Screen With Double Doors

Origin OI-30 Colour Options

As well as the standard 9005M Jet Black, the OI-30 is available in over 150 RAL colours, ensuring they can complement any space. Whether you are looking for contemporary or traditional the OI-30 can deliver the style you require.

150 RAL Colours

9005M - Jet Black

Internal Steel Look Glazed Screen With Double Doors

Origin OI-30 Hardware Options

Being the element of the door which is most often touched a door is defined by its hardware.

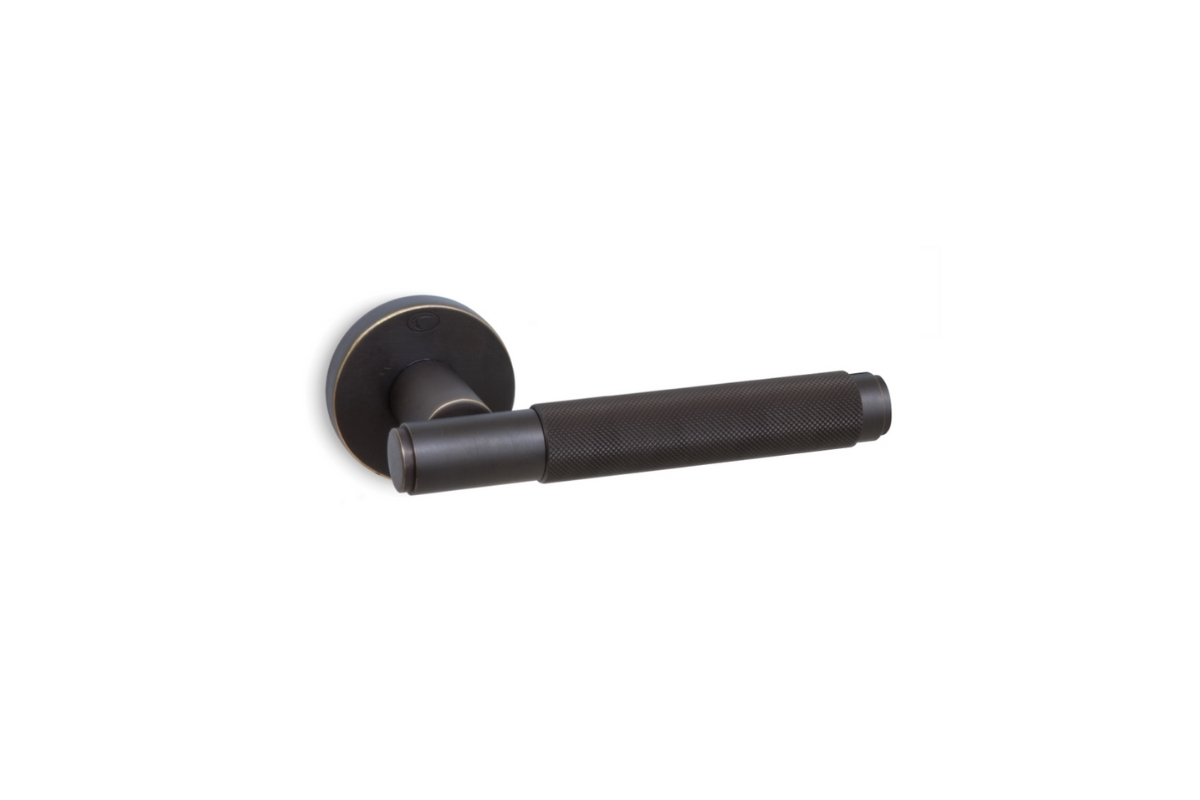

Choose from 5 different handle collections depending on aesthetic preference. The Contemporary collection is perfect for a modern clean look with minimal fuss, whilst the Heritage collection is more traditional and perfect for Art Deco or heritage designs.

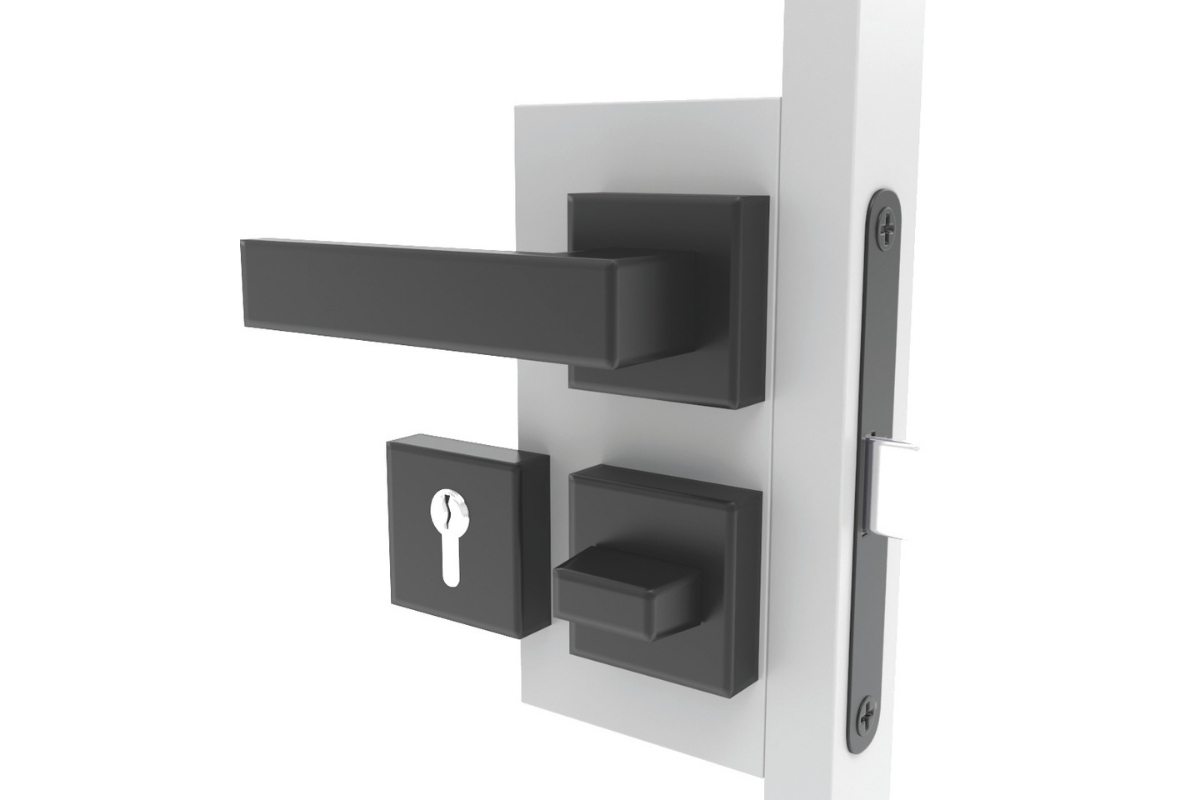

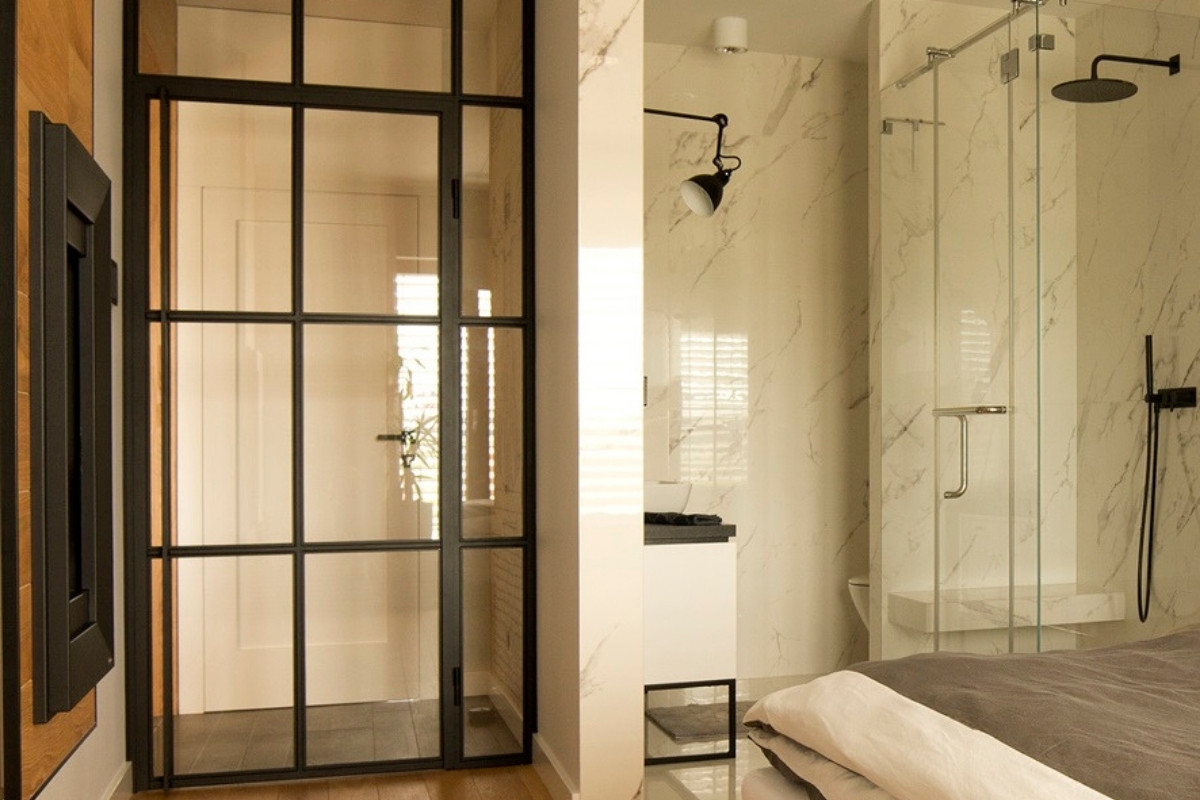

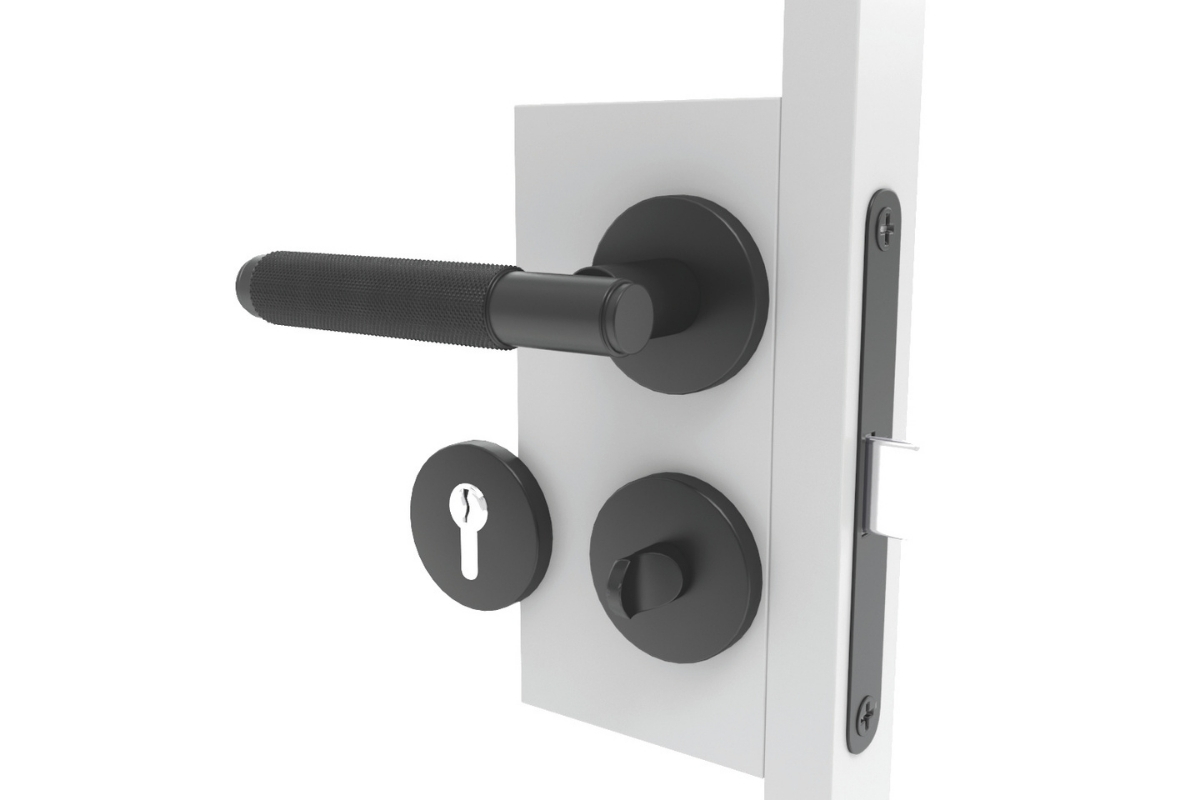

The Origin OI-30 is available with just a handle or with a thumb-turn and release which will operate the lock, perfect if you are looking for more privacy, for example within a bathroom.

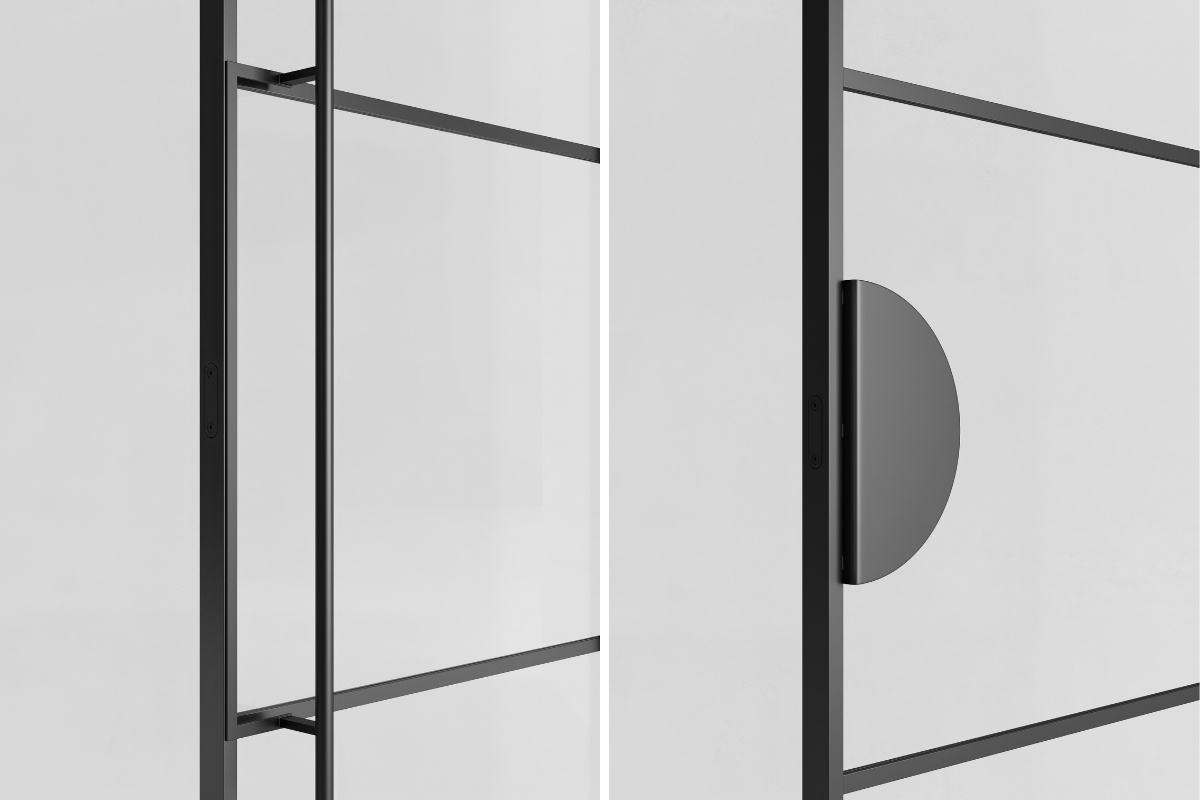

The hinges and the optional half rose door stop, also come in a range of different finishes to complement the handle.

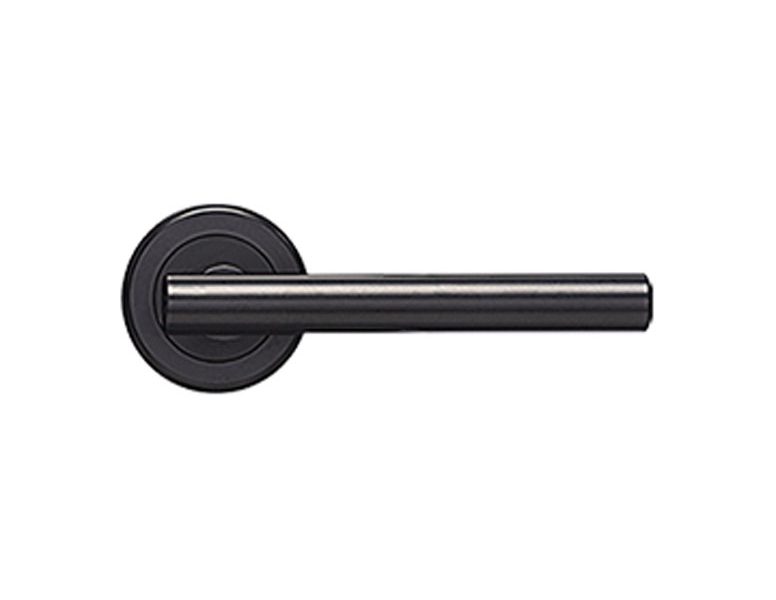

Standard Matt Black

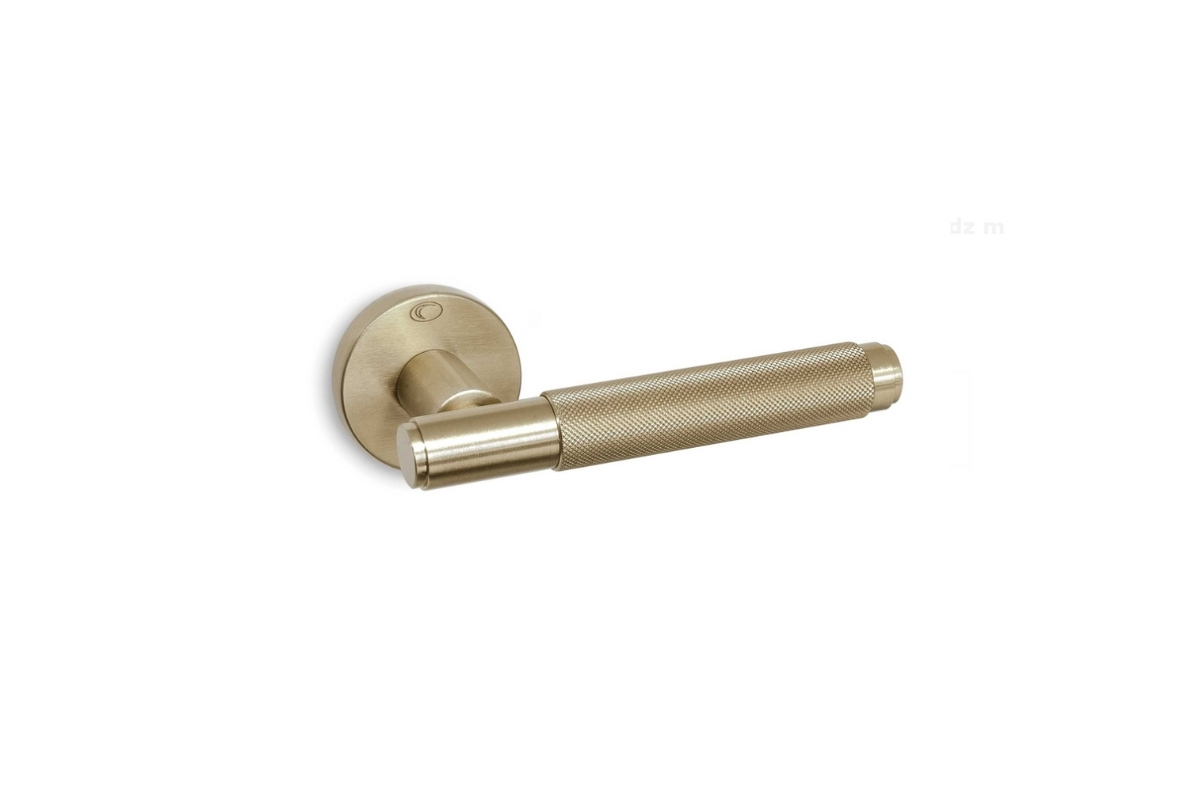

Signature Knurled Satin Brass

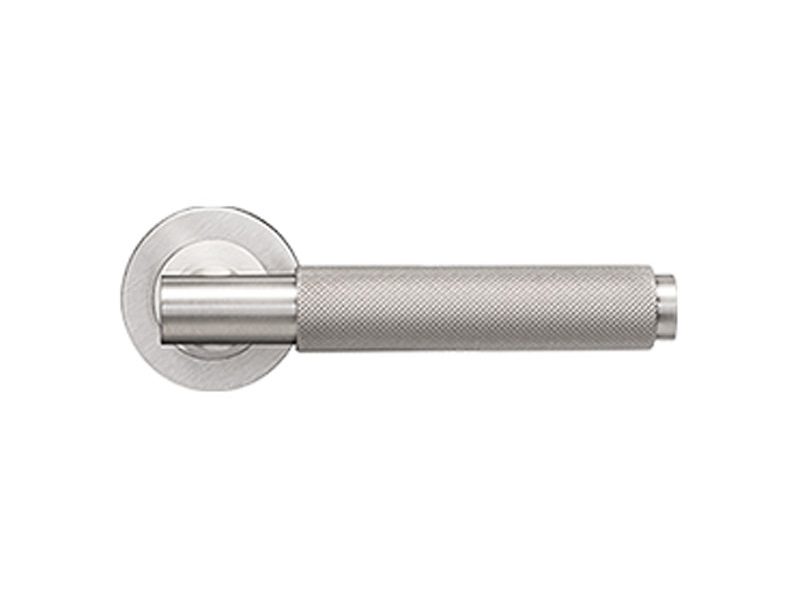

Signature Knurled Satin Nickel

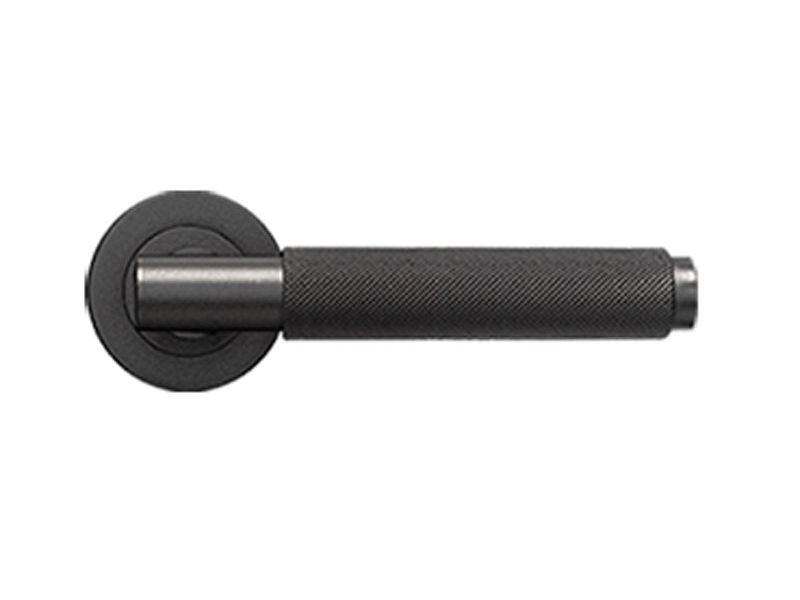

Signature Knurled Matt Black

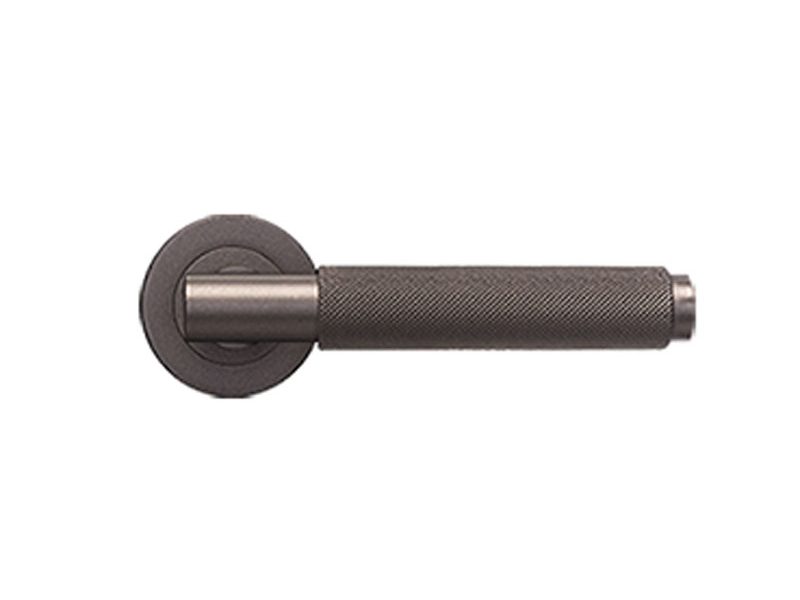

Signature Knurled Matt Bronze

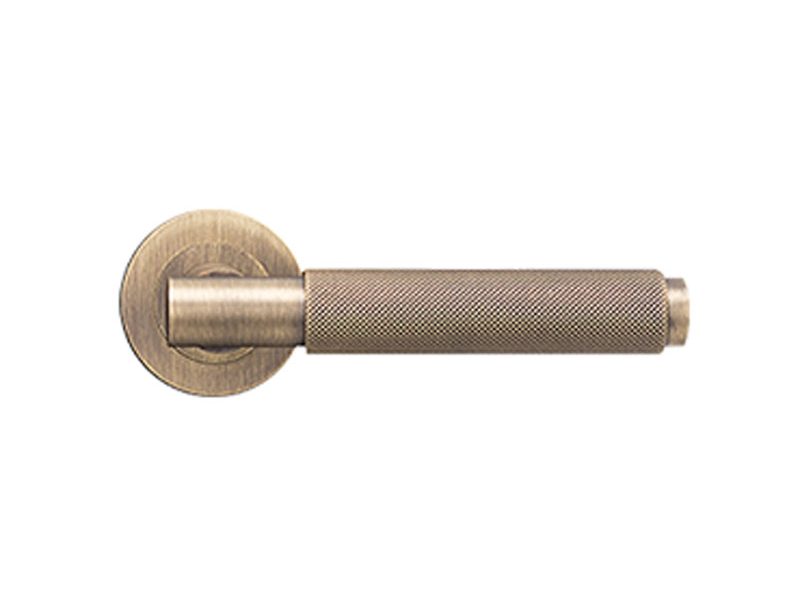

Signature Knurled Antique Brass

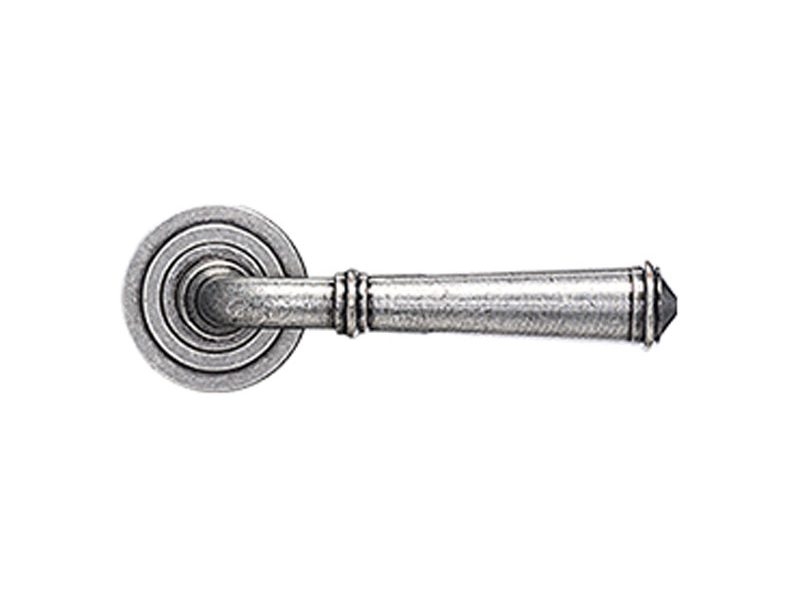

Heritage Edged Hammered Pewter

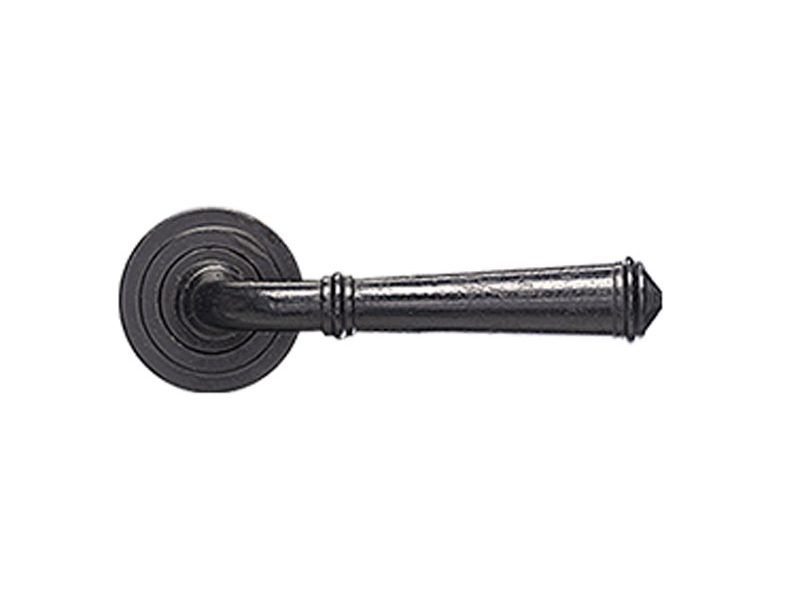

Heritage Edged Matt Black

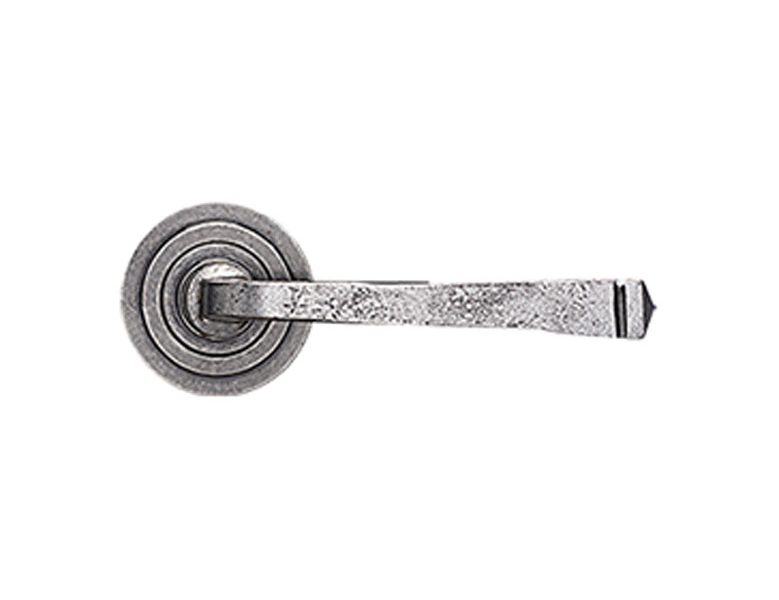

Heritage Classic Hammered Pewter

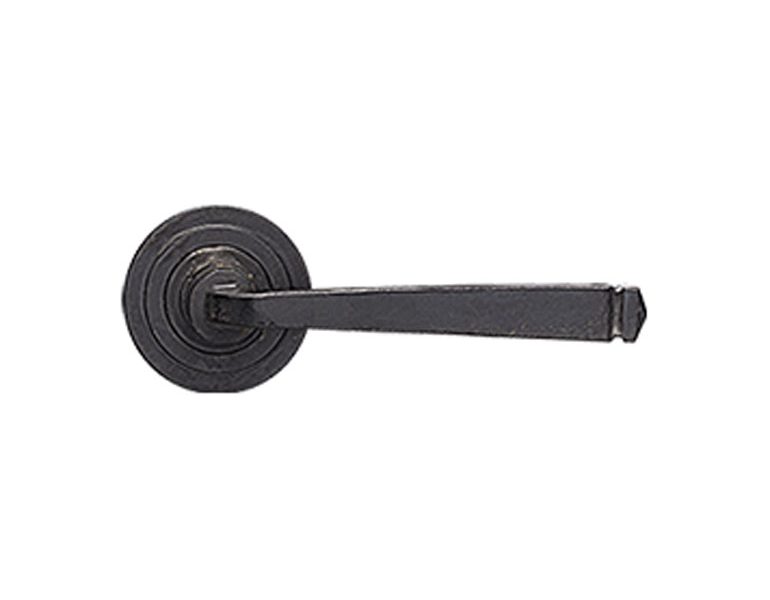

Heritage Classic Matt Black

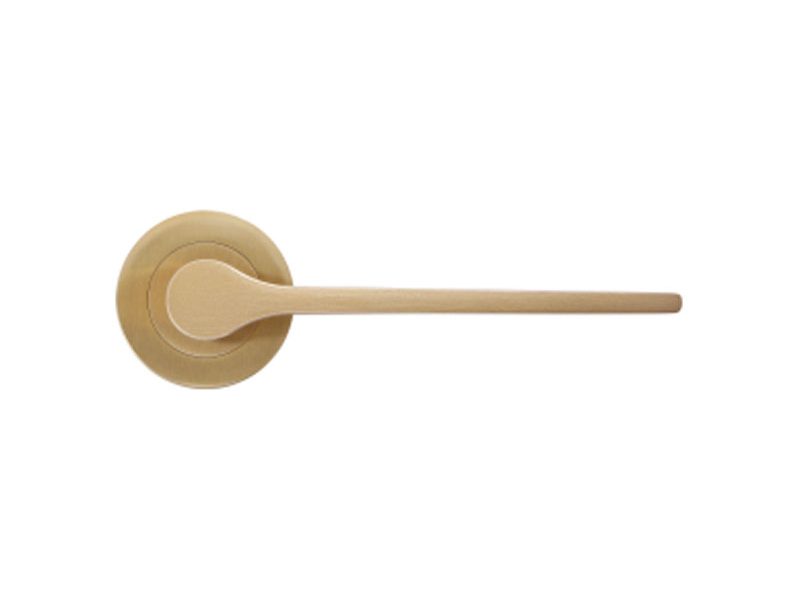

Contemporary Satin Brass

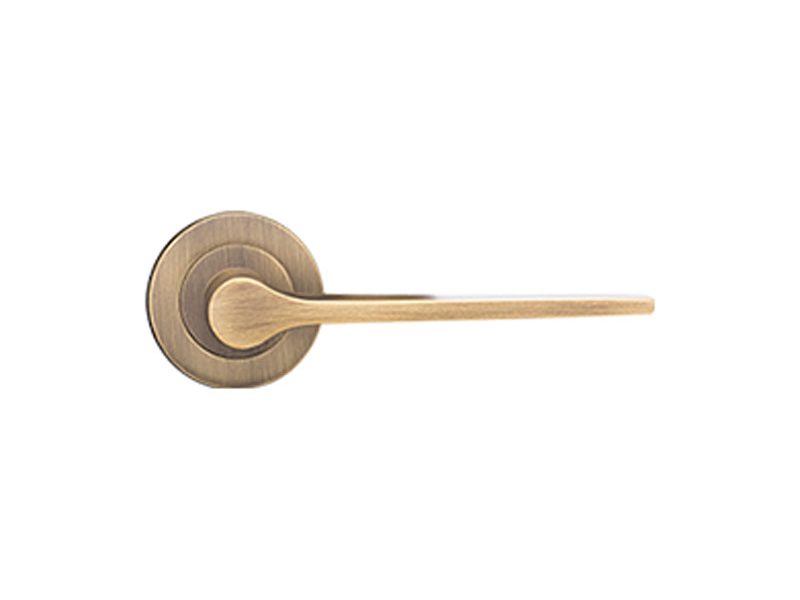

Contemporary Antique Brass

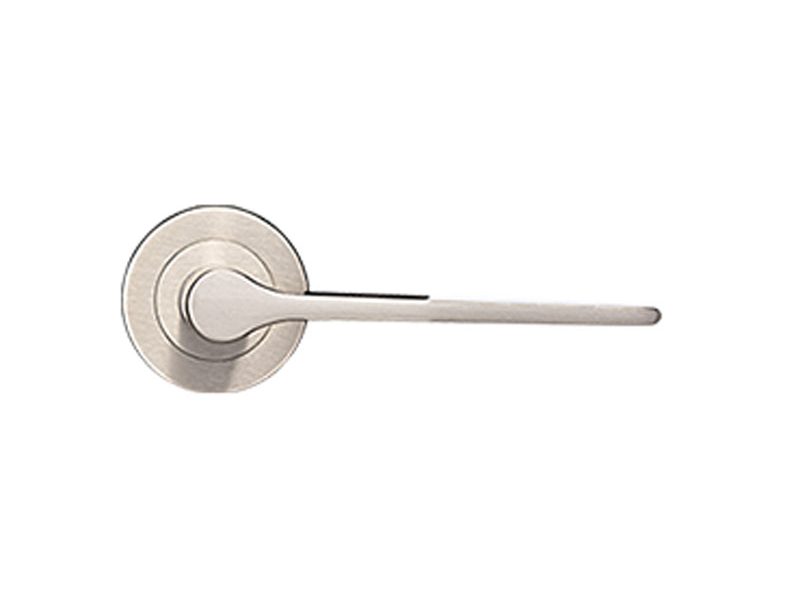

Contemporary Satin Nickel

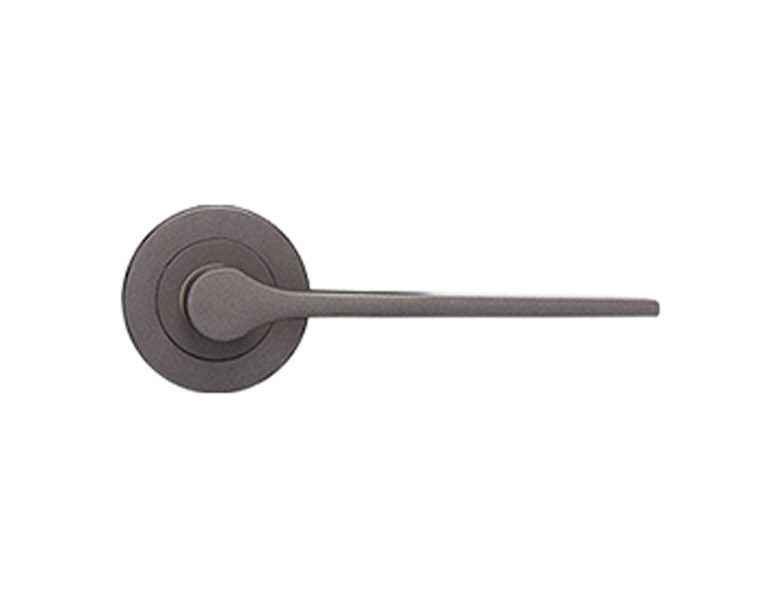

Contemporary Matt Bronze

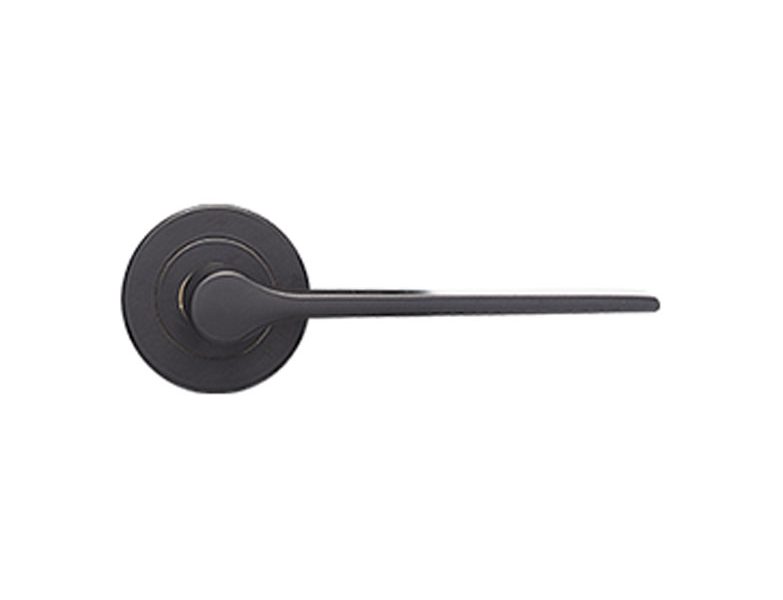

Contemporary Matt Black

Product Gallery

View All

Why Exeter Trade Aluminium?

Quick Quote Turnaround

Competitive Trade Prices

Accurate Lead Times

Fast Track Options

Supplier Support

Versatile Configurations

Exeter Showroom

Expansive Delivery Areas

Crittall-style room divide with double doors

Request a quote for a steel-look internal door or screen

In need of a price for a steel-look internal door or screen?

Please complete the short form with a summary of your requirements. The team will then be in touch with your quote.

We supply steel look internal doors and screens to Installers, Builders, Architects and homeowners in Exeter, and across Devon, Cornwall, Somerset, Dorset, Wiltshire and surrounding areas. Request a quote today.

Alternatively, visit our showroom to touch and experience the products we have on offer. With an expert on hand to answer any questions you have.
