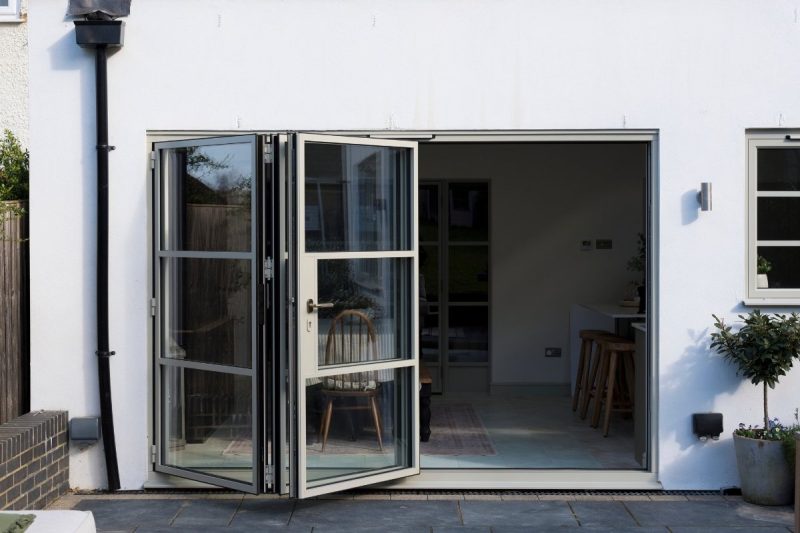

Origin OB36+ Soho Collection.

Origin Soho Collection

The Origin Soho Collection is a collection of windows and doors that are effortlessly luxurious with their steel look and ultra-slim sightlines. Perfectly suited for both modern and traditional properties, they offer a sought-after steel-look design with premium-grade aluminium that delivers excellent thermal efficiency and requires minimal maintenance.

Origin OB-36+ Soho Collection.

Steel-look heritage styling

Make a statement with the unmistakable design of the Soho Collection. The heritage steel look offers style and sophistication that is guaranteed to elevate any property.

Origin OB-36+ Soho Collection.

Finishing touches styled by you

The Origin OB-36+ Soho External Door comes with an extensive range of hardware options, including Antique Brass, Brushed Black, Rose Gold and Satin Stainless Steel to name but a few.

With a variety of handle options, the Soho Collection can be styled to match your project.

Origin OB-36+ Soho Collection.

Visit our Showroom

Visit our Exeter showroom to see the Origin Soho Collection up close and personal.

Fabricated at the Exeter Trade Aluminium factory to your exact size, configuration, hardware and colour/finish requirements. Combining high-quality material and design with top craftsmanship, and excellent guarantees.

Technical Specifications

Origin OB-36+ Soho External Door

Origin OW-70 Soho Window

Origin OB-36+ Soho External Door

The Origin bi-fold collection ranges from one to 12 doors and can be tailored to your individual space. Each door can be manufactured as narrow as 400mm, as wide as 1,200mm and as tall as 3,025mm.

Origin Doors and Windows.
Origin OB-36+ Soho Collection.

Origin OW-70 Soho Window

The Origin OW-70 Soho Window is a new window released by Origin to meet the demands for an industrial aesthetic, steel-look aluminium window.

The OW-70 Soho Window can be configured in casement and fixed configurations and delivers exceptional thermal performance, as part of Origin’s new-look Soho Collection.

Origin Logo.
Origin OW-70 Soho Window

Key Features

Configurations

Hardware

Brochure

Origin OB36+ Soho Collection.

Key Features

Highlights

0.78 W/m2K U-value


2025 Future Homes Standard compliant


PAS24:2022 accredited


Bi-Folding, French and Single Door Configurations


36mm sightlines


150 different RAL colours available


Up to 20 year gurantee


OB-36+ Soho Collection.

Configurations

There are multiple configuration options available with the Origin OB-36+ Soho External Door. Ask our team how we can configure it to meet the needs of your project requirements.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

Origin OB-36+ Configuration.

Origin OB-36+ Soho Collection.

PREVIOUS

NEXT

Hardware

Choose between a range of exquisite hardware options, including Signature Knurled Collection, Contemporary stainless steel handles and aluminium handles.

Origin OB-36+ Hardware.

Brochure

Downloads

Name

Type

Size


Origin-Soho-Collection-Brochure

pdf

11.74 MB

Download


Key Features

Tech Specs

Size Limits

Configurations

Key Features

Highlights

Traditional Soho-style look, with sleek steel-look design


Flush external casement


True integral glazing divides


Square bead internally, for a clean minimalist finish


Square rebate externally


Exceptional thermal performance, with U-Values as low as 1.2W/m2K


Up to a 20-year guarantee on parts


Available in over 150 RAL Colours


Options

Option

Value


Frame Depths
70mm

Glazing Options
28mm

Sash Depth
64mm

Trickle Vents
Yes

Minimum Glazing Divides

Maximum Glazing Divides
2

Glazing Divide Height
35mm

Technical Specifications

Specifications

Performance

Value


U-value (Double Glazing)
1.4 W/m2K

U-value (Triple Glazing)
1.2 W/m2K

Energy Rating
B - A+

Air Permeability
Class 4

Water Tightness
Class 9A

Wind Loading
Class AS

Security
PAS 24: 2022

Frame and Sash Sightline
65mm (Short Leg), 85mm (Long Leg)

Mullion with Sash and Fixed Sightline
80.5mm

Mullion with Sash and Sash Sightline
107mm

Guarantee
20-Years on Parts

Downloads

Name

Type

Size


Origin-Soho-Collection-Brochure

pdf

11.74 MB

Download


Size Limits

Specifications

Size Limits

Value


Fixed Frame Height - Minimum and Maximum
300mm - 4,800mm

Fixed Frame Width - Minimum and Maximum
300mm - 4,800mm

Fixed Frame Area (m2)
4.8m2

Side Hung Height - Minimum and Maximum
350mm - 1,400mm

Side Hung Width - Minimum and Maximum
350mm - 950mm

Top Hung Height - Minimum and Maximum
350mm - 1,474mm

Top Hung Width - Minimum and Maximum
350mm - 1,374mm

Dummy Sash Height - Minimum and Maximum
350mm - 1,474mm

Dummy Sash Width - Minimum and Maximum
350mm - 1,374mm

Mullion / Transom - Minimum and Maximum
300mm - 1,800mm

Glazed Area Next to Mullion (m2)
2.05m2

Glazing Divide Length (Sash Width)
1,200mm

Glazing Divide Length (Frame Width)
1,200mm

Configurations

The Origin OW-70 Soho Window is available in the following configurations.

Origin OW-70 Soho Window Configuration

Origin-OW70-Soho-Window-Configuration

Origin OW-70 Soho Window Configuration

Origin OW70 Soho Window Configuration

Origin OW-70 Soho Window Configuration

Origin OW-70 Soho Window Configuration

PREVIOUS

NEXT
