Curtain Walling Exeter & Devon

Make a statement with aluminium curtain walling. Perfect for homes looking for large expanses of glass to create impressive focal points, or to create whole glazed walls.

Our Affiliations

Curtain Walling Exeter

Curtain Walling Devon

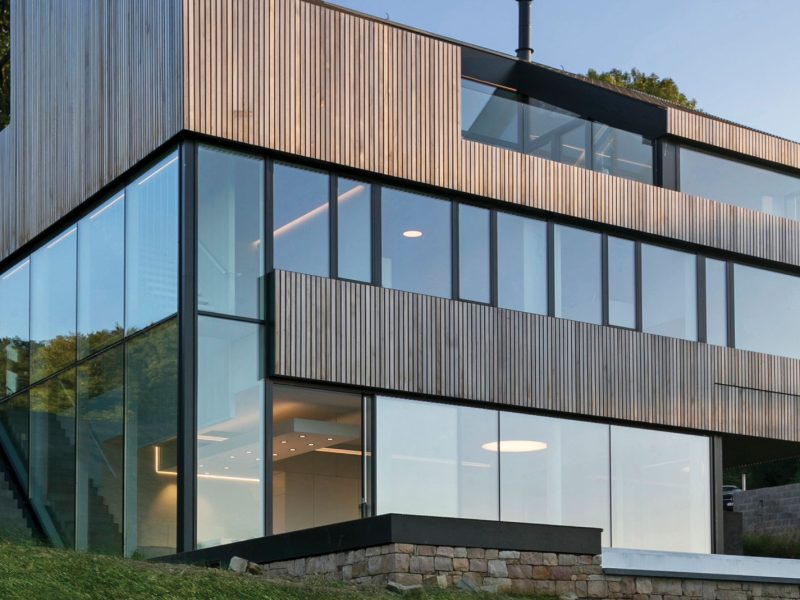

Large glass walls or curtain walls are often associated with commercial buildings. In residential settings glazed walls can also produce striking results. Blurring the divide between inside and out. Allowing your living space to be filled with panoramic views and natural light.

Offering unlimited design freedom and maximum transparency, for commercial and residential applications.

If you are looking to create a seamless and attractive curtain wall, speak with our team about the options that we offer. Improved glazing, chambered profiles and insulating technology ensure improved thermal efficiency for glass walls.

Glass wall Devon

Sleek Glass Wall Systems

With the ability to support up to 700 kg of glass, Curtain Walling allows you to replace existing solid walls with glass walls.

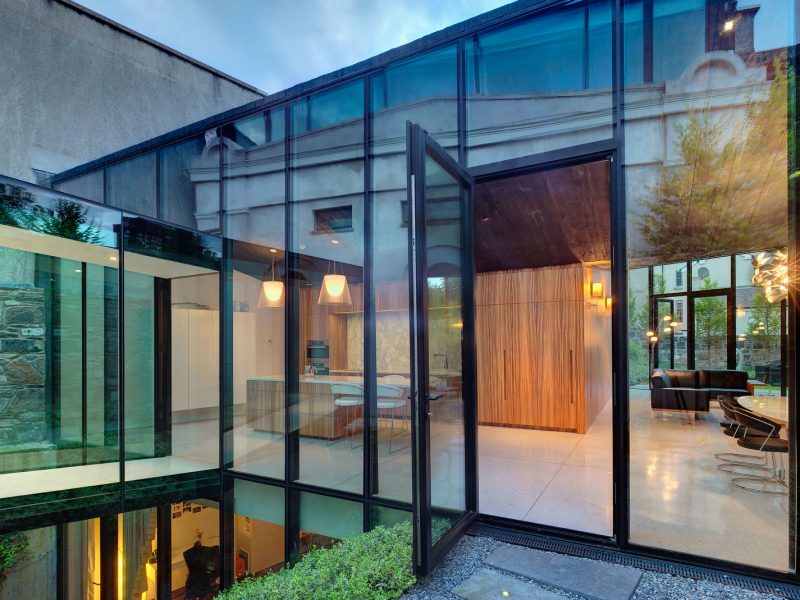

Seamlessly integrate with windows and doors, which can be operated manually or automatically. For ventilation or accessibility. Creating a stunning architectural feature in the property, whist still being practical.

Technical Specifications

Reynears CW 50

Reynears CW 50

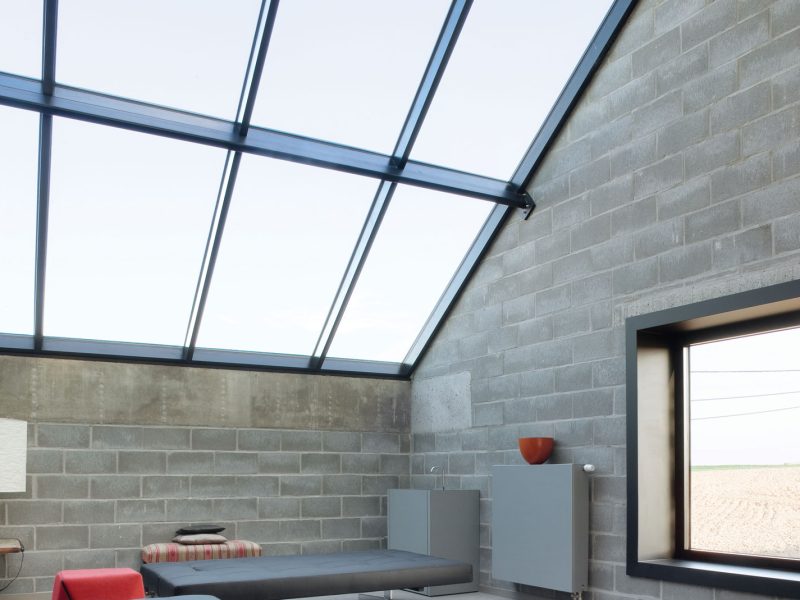

The CW 50 by Reynaers is a curtain wall and roof system which offers design freedom and allows maximum transparency for even the highest concept designs. Suitable for both commercial and domestic use. Meeting and exceeding the requirements of contemporary architecture. Due to its load bearing capabilities specialist fitting will be required.

Key Features

Tech Specs

Size Limits

Configurations

Reynaers CS 77 Door

Key Features

Highlights

Façade and roof system


Unlimited design possibilities


Excellent thermal and AWW performances


Ability to support up to 700 kg of glass


Appropriate for commercial & domestic use


Top hung and bottom hung opening elements easily integrated


Automation available for convenience


Manufactured on site


Options


Glass to glass corner
Yes

Inclined (for angled walls)
Yes

Applications
Façade and roof system

Solar Shading
Yes

Reynaers CS 77 Door

Technical Specifications

Specifications

Performance

Value


U-value
0.8 W/m2

Air Tightness
Class AE 1200 (1200 Pa)

Water Tightness
Class RE 1200 (1200 Pa)

Wind Load
2400 Pa

Acoustic Performance
RW (C;Ctr) = 33 (-1; -4) / 60 (-2;-6) dB

Glass Thickness
6 – 60 mm

Fire Resistance
EI 15; EW 30; EI 30; E 60; EW 60; EI 60

Security
RC2/WK2 - RC3/WK3

Sightline - Visible Width - Min
50 mm

Downloads

Name

Type

Size


Reynaers CW 50 Curtain Wall Brochure

pdf

1.01 MB

Download


Reynaers CS 77 Door

Size Limits

Options

Configuration

Limit


Vent - Max Size
2000w x 2500h mm

Vent - Max Weight
180 kg

Inertia mullions (lx: wind load) - Max
2690 cm4

Inertia transoms (lx: wind load) - Min
4 cm4

Reynaers CS 77 Door

Wall System Configurations

The CW 50 curtain wall is available in a range of styles and variants. Combine with opening elements to create a unique, practical architectural feature.

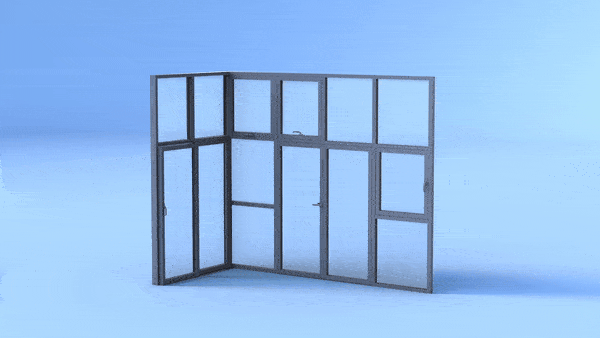

Curtain Wall with Tilt and Turn Window

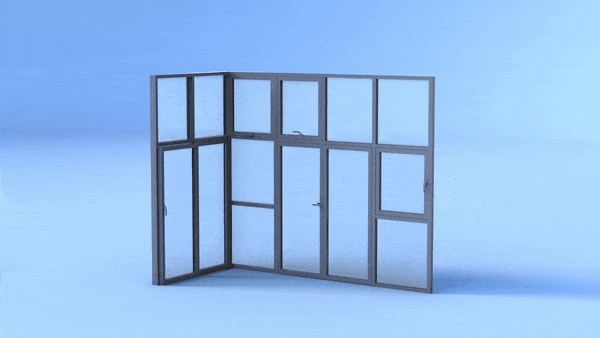

Curtain Wall with Sliding Door

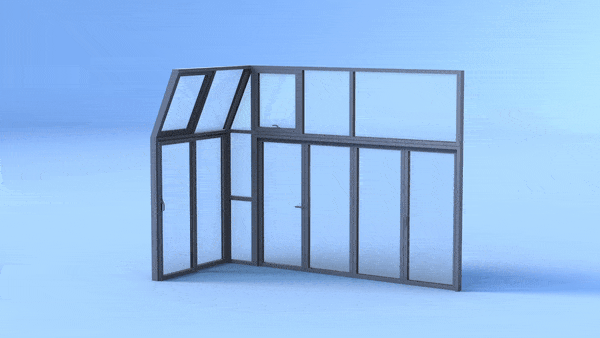

Curtain Wall with Top Hung Window 2

Curtain Wall with Top Hung Window

Curtain Wall with Bifolding Door

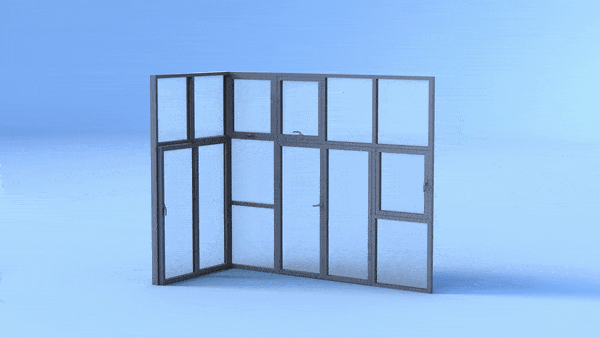

Curtain Wall with Double Door
