AluK Optio 58BD

Single & Double Doors Exeter

Choose slimline aluminium single and double glazed doors to add light to any home. Perfect for rooms with a view. Whilst offering high security, and thermal performance. Designed to complement your aluminium windows. Manufactured and supplied by Exeter Trade Aluminium.

Our Affiliations

Double doors Exeter

Single Doors Exeter

Aluminium single & double doors offer timeless style for both traditional and contemporary properties.

Combined with superior levels of security featuring multi-point locking and PAS 24:2016 tested. Keeping unwanted visitors at bay, whilst allowing easy access in and out, as well flooding your room with light and air.

Double glazed front doors Exeter

Double Doors Devon

Whether you’re looking for an entrance to the home or easy access to the garden, Exeter Trade Aluminium offer a number of reliable and durable configurations. Our doors can be manufactured to either open in or out, depending on the space available. The hinge allows the doors to open a full 180 degrees or as far as the wall will allow.

Our double doors fit apertures ranging from 1.4 – 2.4 meters wide. With fixed panes added on either side, the doors can fit apertures of up to 3.8 meters, offering a truly flexible solution for your perfect door.

Reynaers cs77 Exeter

British Made

Designed in the UK and manufactured in our onsite factory. Our single & double doors are engineered to perform and built to last. All doors undergo rigorous quality testing to ensure they leave the factory at a consistently high standard.

Speak with our team about your single or double door requirements today.

Technical Specifications

AluK Optio 58BD

Reynaers CS 77

AluK Optio 58BD

The AluK Optio 58BD is manufactured in-house ensuring you of a quality product. This stylish aluminium door systems is suitable for light and medium-duty use, in both new-build and refurbishment projects. Designed with security and flexibility front of mind.

Aluk Logo

Reynaers CS 77

We can offer thermally broken, weather resistant and highly effective aluminium single & double doors with the Reynaers CS 77 system. A versatile solution, which offers a broad range of safety requirements, including fireproof, smokeproof and bulletproof.

Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Single door with side light

Features

Highlights

Suitable for both new build and refurbishment projects


Ideal for light and medium duty use


Multiple configurations available


Designed for optimal security and flexibility


Multi-point locking mechanism for increased security


Dual colour options for matching interiors & exteriors


Document L building regulations compliant


Document M compliant for improved accessibility


Textured finishes can create striking double doors


Q-Mark certified


Manufactured onsite in Exeter


Options


Glazing
24 - 40 mm

Frame depths
58 or 70 mm, to accommodate varying types of applications

Colour options
Single, Dual powder coating, texture and anodised finishes

Single door with side light

Technical Specifications

Specifications

Performance

Value


U-value - Single Open-in (Double Glazing)
1.7 W/m2K

U-value - Double Open-in (Double Glazing)
1.7 W/m2K

U-value - Single Open-in (Triple Glazing)
1.4 W/m2K

U-value - Double Open-in (Triple Glazing)
1.5 W/m2K

Air Tightness - Single Open In
Class 4 (600 Pa)

Air Tightness - Double Open In
Class 2 (300 Pa)

Water Tightness - Single Open In
Class 3a (100 Pa)

Water Tightness - Double Open In
Class 7a (300 Pa)

Wind Load - Single Open In
Class A3 (1200 Pa)

Wind Load - Double Open In
Class A2400 (2400 Pa)

Certifications
Q-Mark

Security
PAS 24:2016

Downloads

Name

Type

Size


AluK 58BD Door Data Sheet

pdf

657.89 KB

Download


Single door with side light

Size Limits

Options

Properties

Limit


Door Weight - Max
4 Hinges - 90 kg

Door Size - Single - Max
1200w x 2400h mm

Door Size - Double - Max
2400w x 2400h mm

Single door with side light

Configurations

Depending on the needs of your project we have various configuration options available, including:

  • Single or double doors
  • Open in or open out
  • A choice of panel options, mid-rail or fully glazed
  • Side windows or top lights

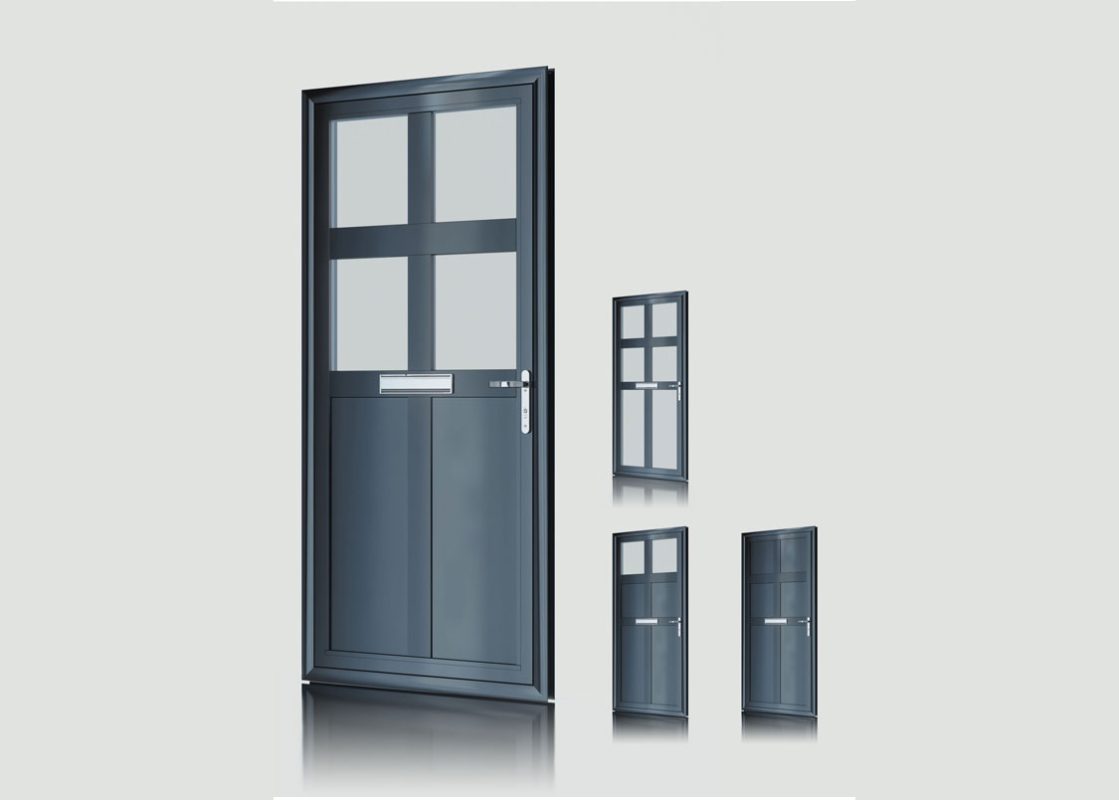

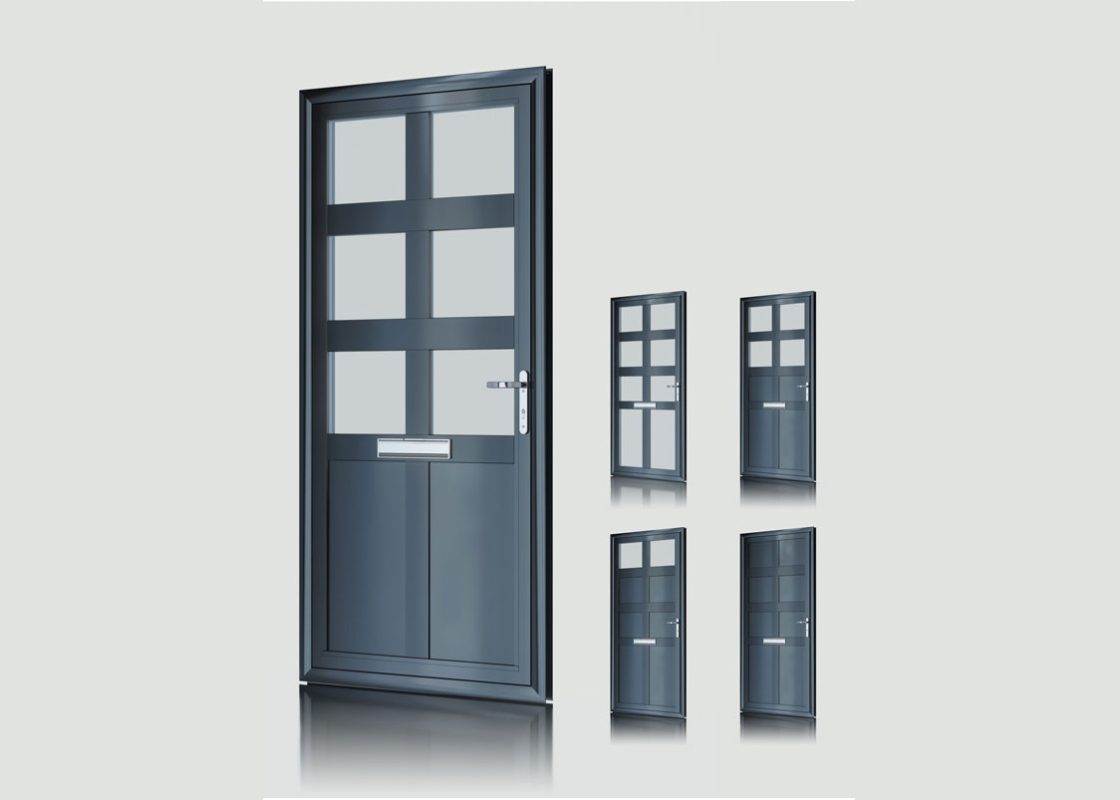

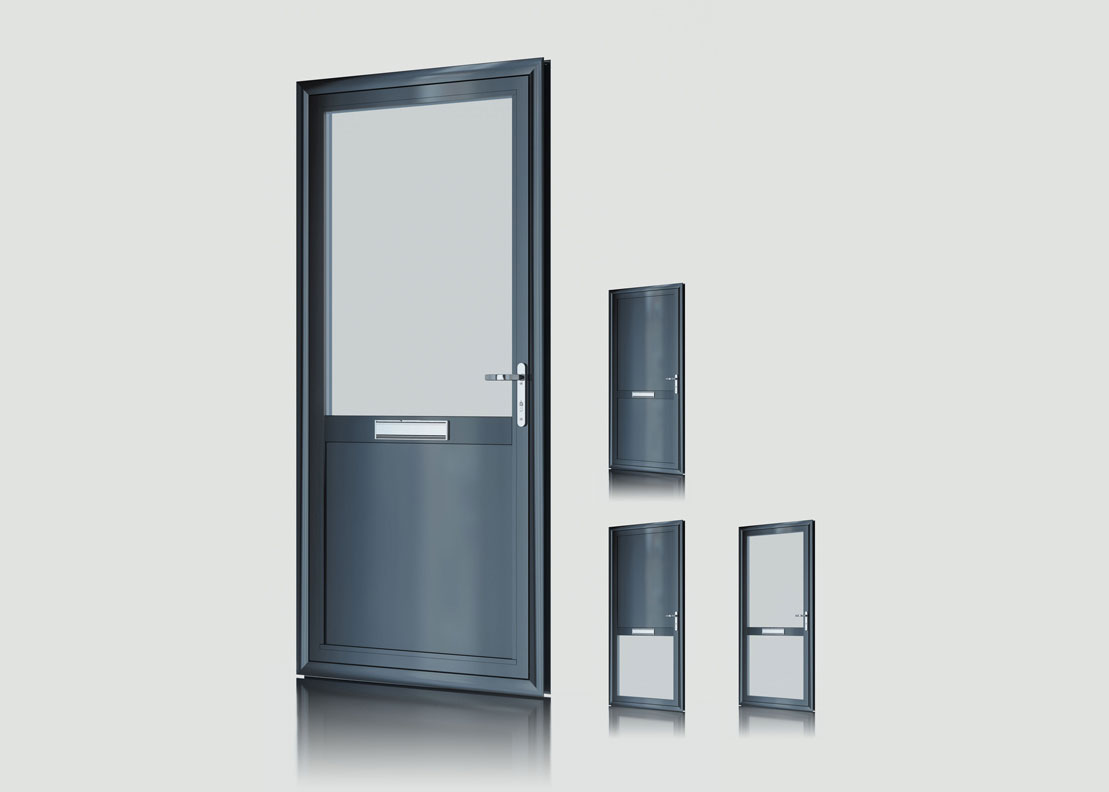

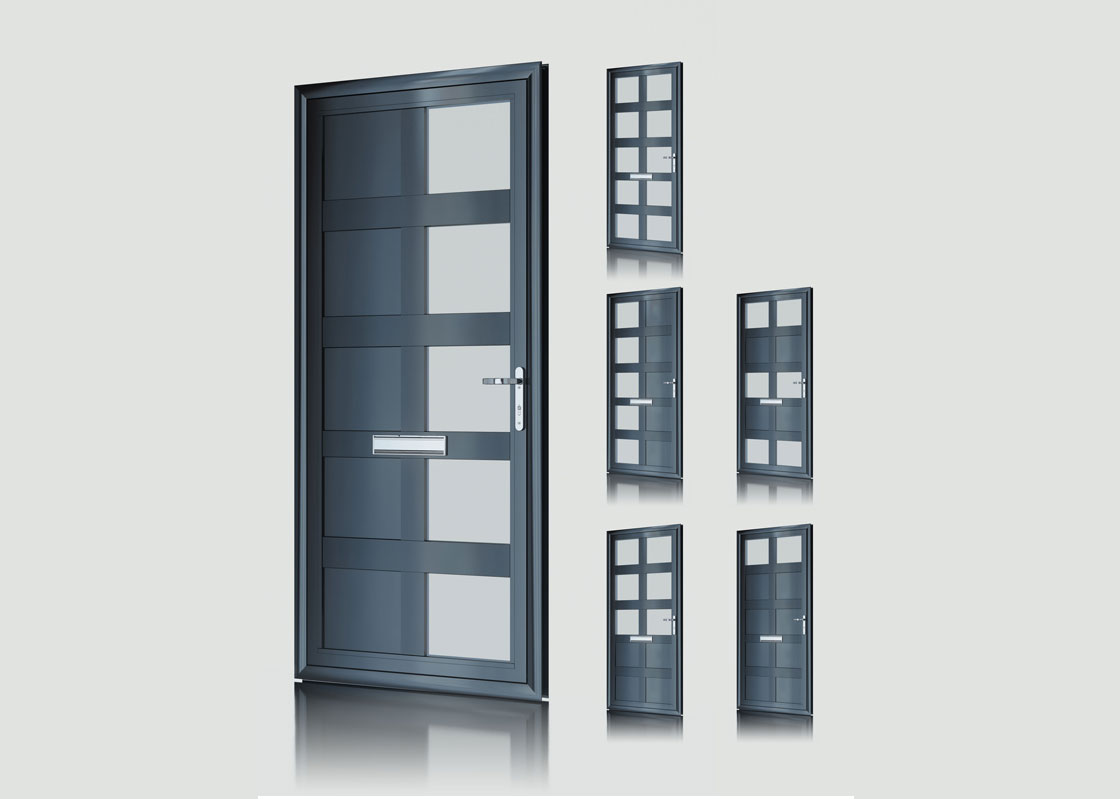

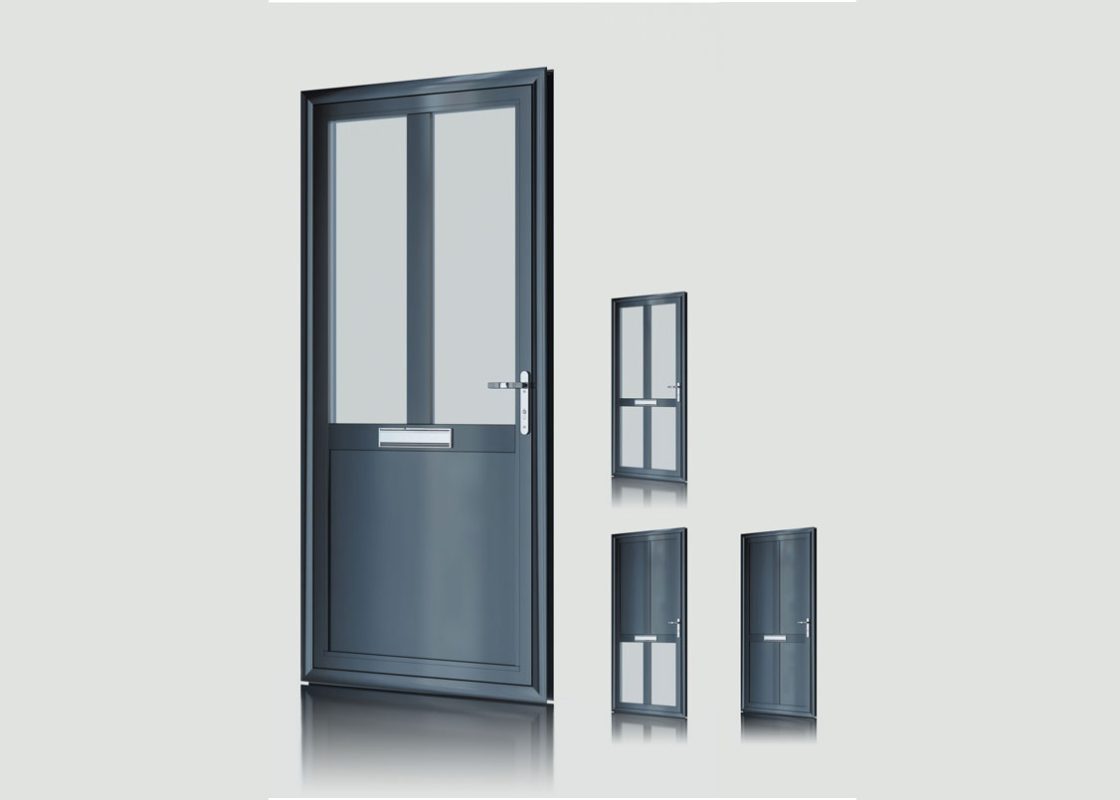

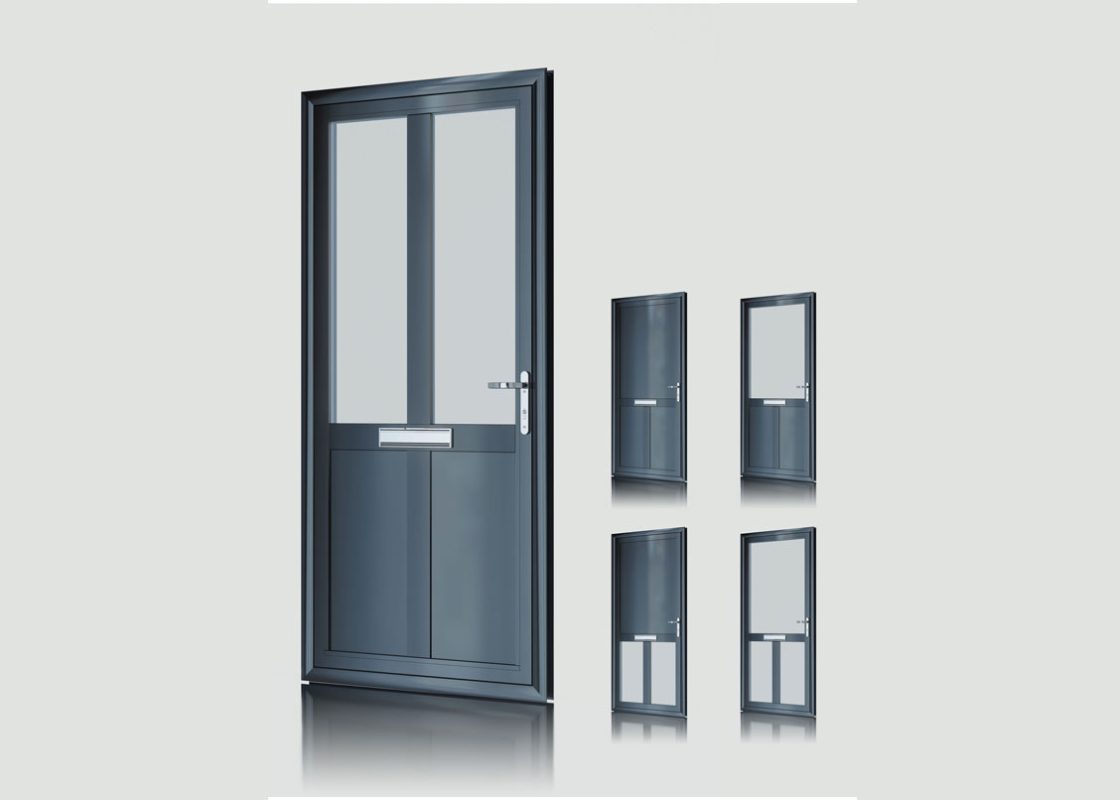

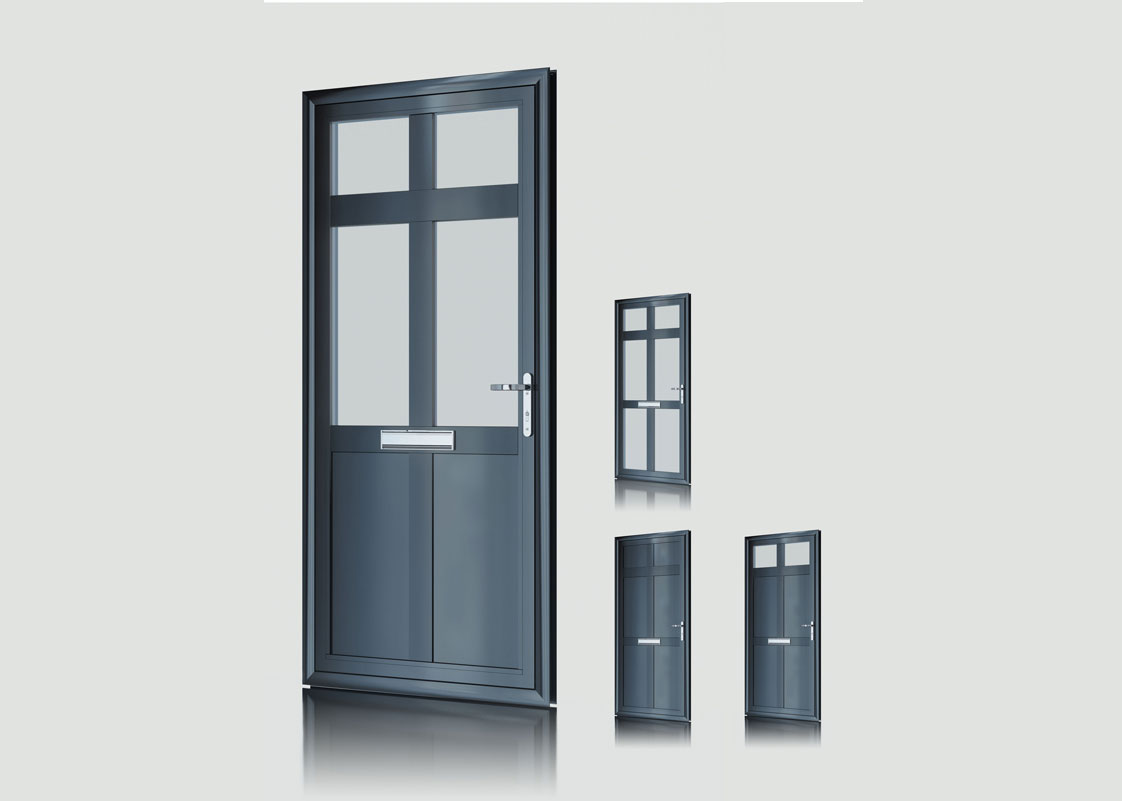

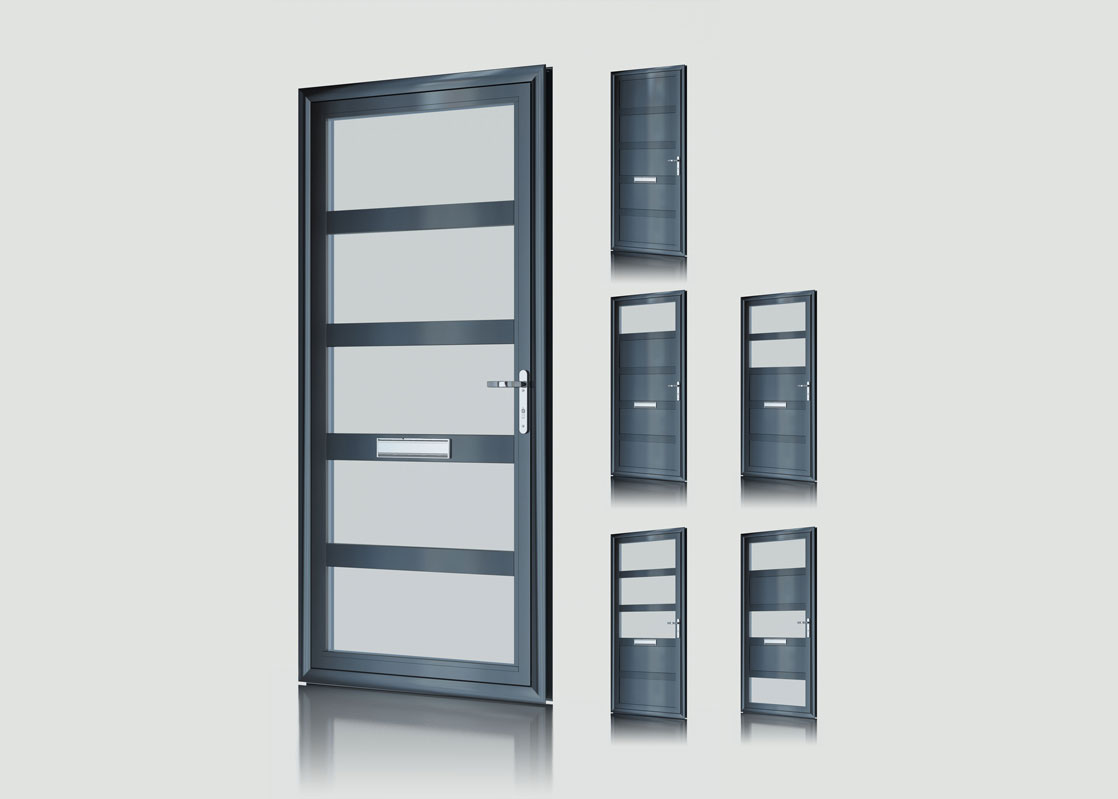

Single entrance door

Single entrance door

Single entrance door

Single entrance door

Single entrance door

Single entrance door

Single entrance door

Single entrance door

PREVIOUS

NEXT

Single door with side light

AluK Colour Options

Whether your project requires subtle tones to blend in with its surroundings or bold colours to make a statement, at Exeter Trade Aluminium you have over 150 RAL colours to choose from.

Looking for a different colour on the outside of the door compared to the inside? Choose our dual colour option.

Available in three different finishes: matt, textured of anodised finish. Helping you to create a striking look for any home.

RAL Colours

RAL 7032 - Pebble Grey

RAL 7032 - Pebble Grey

RAL 7031 - Blue Grey

RAL 7031 - Blue Grey

RAL 7016 - Anthracite Grey

RAL 7016 - Anthracite Grey

RAL 7015 - Slate Grey

RAL 7015 - Slate Grey

RAL 7012 - Basalt Grey

RAL 7012 - Basalt Grey

RAL 5003 - Ocean Blue

RAL 5003 - Ocean Blue

Single door with side light

AluK Hardware Options

Multi point locking systems and barrel hinges to create unrivaled security performance and attractive doors.

Key Features

Tech Specs

Size Limits

Configurations

Colours

Hardware

Reynaers CS 77 Door

Key Features

Highlights

Three attractive style options: functional, hidden vent & Renaissance


Open-in / Open-out configurations


Meets the most stringent of European standards


Tested against burglar resistance for enhanced security


Superior weather performance


Hollow chamber design to reduce heat transfer


Optimal thermal performance for reduced heating bills


Available in a marine grade pre-anodised finish


Uniquely customisable for homeowners


Long lasting doors


Made onsite in Exeter


Options


Style Variants
Functional, Softline, Hidden Vent

Marine Grade Finish
Yes

Dual Colour
Yes

Glazing
Double or triple

Smart Home Compatible
Yes

Softclose
Yes

Reynaers CS 77 Door

Technical Specifications

Specifications

Performance

Value


U-value (Double Glazing)
0.94 W/m2K

Air Tightness
Class 4 (600 Pa)

Water Tightness
Class 7a (300 Pa)

Wind Load
Class C2 (800 Pa)

Security
PAS 24:2016, RC2, WK2, RC3, WK3

System Depth
68mm

Downloads

Name

Type

Size


Reynaers CS 77 Windows & Doors Brochure

pdf

362.50 KB

Download


Reynaers CS 77 Door

Size Limits

Options

Properties

Limit


Element - Max Size
1496w x 3061h mm

Element - Min Size
535w x 500h mm

Vent - Max Size
1400w x 3000h mm

Vent - Min Size
500w x 500h mm

Weight of Vent - Max
250 kg

Reynaers CS 77 Door

Configurations

The are various different style / configuration options with the Reynaers CS 77 single and double doors. Configuration options include:

  • Single or double doors
  • Open in or open out
  • Side lights and fan lights
  • Side opening or pivot opening
  • Panel door or glass door
  • Softline, bulletproof, fireproof, smokeproof or high insulation

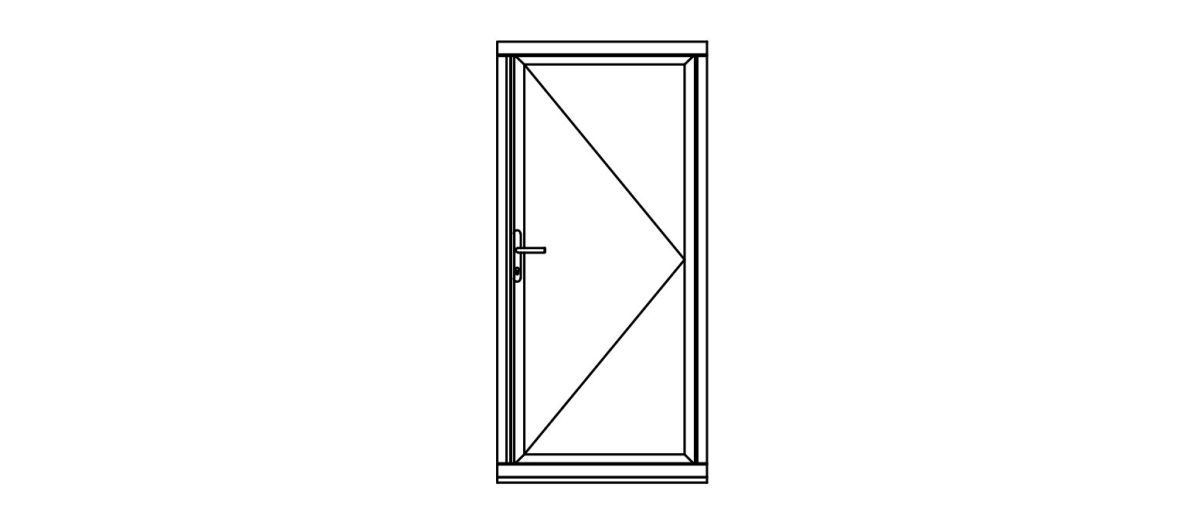

Single Door

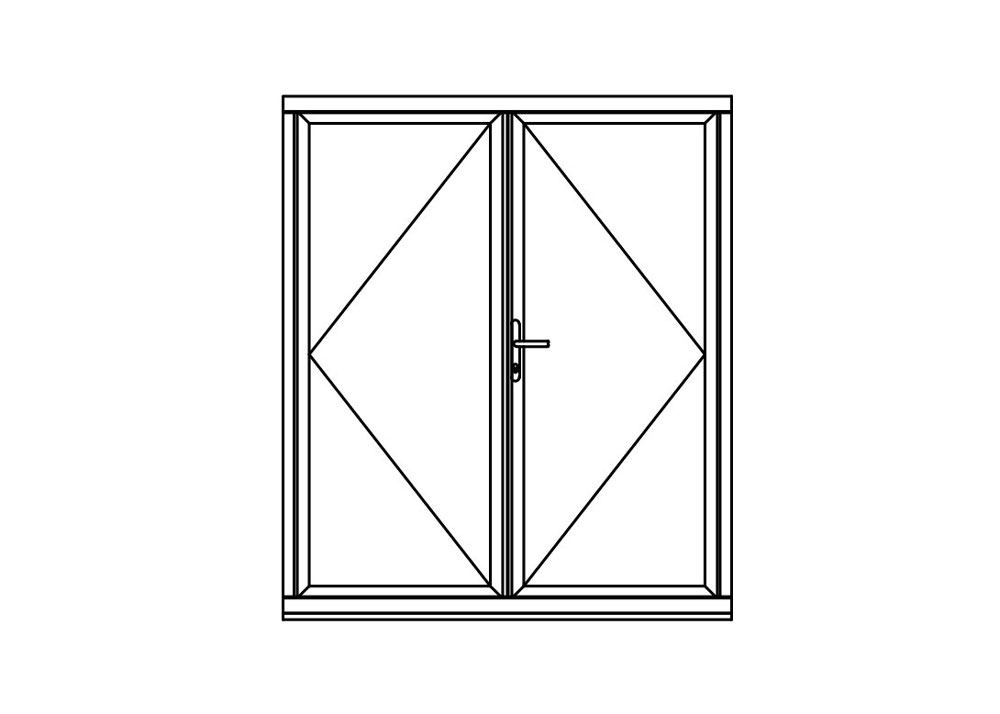

Double Door / French Door

PREVIOUS

NEXT

Reynaers CS 77 Door

Reynaers Colour Options

Reynaers offer frames in almost any colour imaginable. In a range of finishes including: metallic, or anodised, matt or gloss.

If your project is near the coastline it may require an extra level of protection. This is achieved by pre-anodisation before being powder-coated. The combination of the two offer long term protection from the harsh conditions coastal properties have to endure.

RAL Colours

RAL 7032 - Pebble Grey

RAL 7032 - Pebble Grey

RAL 7031 - Blue Grey

RAL 7031 - Blue Grey

7016M - Anthracite Grey

7015M - Slate Grey

RAL 7012 - Basalt Grey

RAL 7012 - Basalt Grey

RAL 5003 - Ocean Blue

RAL 5003 - Ocean Blue

Reynaers CS 77 Door

Reynaers Hardware Options

Speak with our team to learn more about the hardware we offer for Reynaers doors.

Product Gallery

View All

Why Exeter Trade Aluminium?

Quick Quote Turnaround

Competitive Trade Prices

Accurate Lead Times

Fast Track Options

Supplier Support

Versatile Configurations

Exeter Showroom

Manufactured Onsite

Expansive Delivery Areas

Suitable For Coastal Installations

Aluminium Door Cost Devon

Double Door Prices Exeter & Devon

Request a supply only quote for aluminium single or double doors.

We supply aluminium doors to the trade and homeowners in Exeter, Devon, Cornwall, Somerset, Dorset, Wiltshire and surrounding areas. Request a quote today.

Alternatively, visit our showroom to touch and experience the products we have on offer. With an expert on hand to answer any questions you have.
